SAXSdb — 1ii2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOENOLPYRUVATE CARBOXYKINASE

Trypanosoma cruzi

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PPCK_TRYCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–471； UniProt 2–472 Author chain B； PDBConstruct 1–471； UniProt 2–472

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ii2
Deposition date deposition_date	2001-04-20
Structure title title	Crystal Structure of Phosphoenolpyruvate Carboxykinase (PEPCK) from Trypanosoma cruzi
Keywords keywords	Phosphate binding loop, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ii2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ii2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

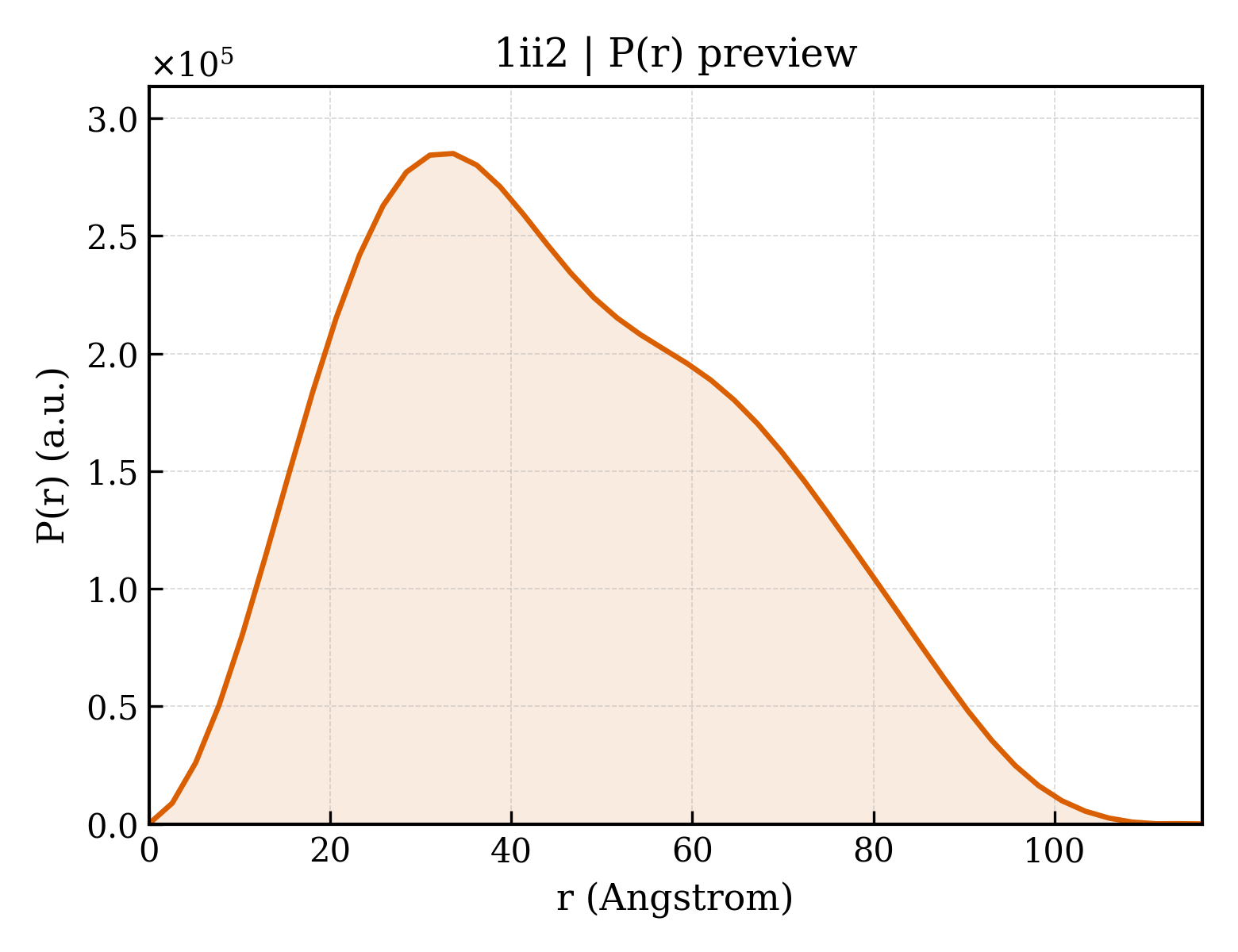

1ii2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.53 Å
Rg (electron density)	35.24 Å
Total Rg	35.57 Å
Atom count	8030
Residues	1036
Excluded volume	142770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ii2__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PHOSPHOENOLPYRUVATE CARBOXYKINASE
Molecular weight formula_weight	58816.3 kDa
EC 编号 ec_number	4.1.1.32
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8891

PPTIHRNLLSPELVQWALKIEKDSRLTARGALAVMSYAKTGRSPLDKRIVDTDDVRENVDWGKVNMKLSEESFARVRKIAKEFLDTREHLFVVDCFAGHDERYRLKVRVFTTRPYHALFMRDMLIVPTPEELATFGEPDYVIYNAGECKADPSIPGLTSTTCVALNFKTREQVILGTEYAGEMKKGILTVMFELMPQMNHLCMHASANVGKQGDVTVFFGLSGTGKTTLSADPHRNLIGDDEHVWTDRGVFNIEGGCYAKAIGLNPKTEKDIYDAVRFGAVAENCVLDKRTGEIDFYDESICKNTRVAYPLSHIEGALSKAIAGHPKNVIFLTNDAFGVMPPVARLTSAQAMFWFVMGYTANVPGVEAGGTRTARPIFSSCFGGPFLVRHATFYGEQLAEKMQKHNSRVWLLNTGYAGGRADRGAKRMPLRVTRAIIDAIHDGTLDRTEYEEYPGWGLHIPKYVAKVPEHLLNPRKAWKDVRQFNETSKELVAMFQESFSARFAAKASQEMKSAVPRYVEFARL

Source Source

Source organism organism	Trypanosoma cruzi
NCBI taxonomy ID ncbi_taxonomy_id	5693
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	827

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ii2a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.91 — PEP carboxykinase-like
Superfamily Superfamily superfamily	c.91.1 — PEP carboxykinase-like
Family Family family	c.91.1.1 — PEP carboxykinase C-terminal domain

Domain ID domain_id	d1ii2a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.109 — PEP carboxykinase N-terminal domain
Superfamily Superfamily superfamily	c.109.1 — PEP carboxykinase N-terminal domain
Family Family family	c.109.1.1 — PEP carboxykinase N-terminal domain

Domain ID domain_id	d1ii2b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.91 — PEP carboxykinase-like
Superfamily Superfamily superfamily	c.91.1 — PEP carboxykinase-like
Family Family family	c.91.1.1 — PEP carboxykinase C-terminal domain

Domain ID domain_id	d1ii2b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.109 — PEP carboxykinase N-terminal domain
Superfamily Superfamily superfamily	c.109.1 — PEP carboxykinase N-terminal domain
Family Family family	c.109.1.1 — PEP carboxykinase N-terminal domain

CATH v4.4 (6 domains)

Domain ID domain_id	1ii2A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	449 — Phosphoenolpyruvate Carboxykinase; domain 1
Homologous superfamily homologous superfamily	10 — Phosphoenolpyruvate Carboxykinase, domain 1

Domain ID domain_id	1ii2A02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	8 — Phosphoenolpyruvate Carboxykinase; domain 2
Homologous superfamily homologous superfamily	10 — Phosphoenolpyruvate Carboxykinase, domain 2

Domain ID domain_id	1ii2A03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	228 — Phosphoenolpyruvate Carboxykinase; domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1ii2B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	449 — Phosphoenolpyruvate Carboxykinase; domain 1
Homologous superfamily homologous superfamily	10 — Phosphoenolpyruvate Carboxykinase, domain 1

Domain ID domain_id	1ii2B02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	8 — Phosphoenolpyruvate Carboxykinase; domain 2
Homologous superfamily homologous superfamily	10 — Phosphoenolpyruvate Carboxykinase, domain 2

Domain ID domain_id	1ii2B03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	228 — Phosphoenolpyruvate Carboxykinase; domain 3
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	65.977 Å
Unit-cell length b length_b	107.615 Å
Unit-cell length c length_c	179.081 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	21.670 Å
R factor r_factor	0.1950
R_work r_work	0.1950
R_free r_free	0.2200
