SAXSdb — 1ii7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mre11 nuclease

Pyrococcus furiosus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MANGANESE (II) ION × 4 SULFATE ION × 3 2'-DEOXYADENOSINE-5'-MONOPHOSPHATE × 1 PHOSPHATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MRE11_PYRFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–333； UniProt 1–333 Author chain B； PDBConstruct 1–333； UniProt 1–333

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ii7
Deposition date deposition_date	2001-04-20
Structure title title	Crystal structure of P. furiosus Mre11 with manganese and dAMP
Keywords keywords	Rad50, Mre11, DNA double-strand break repair, dAMP, manganese, REPLICATION; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ii7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ii7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

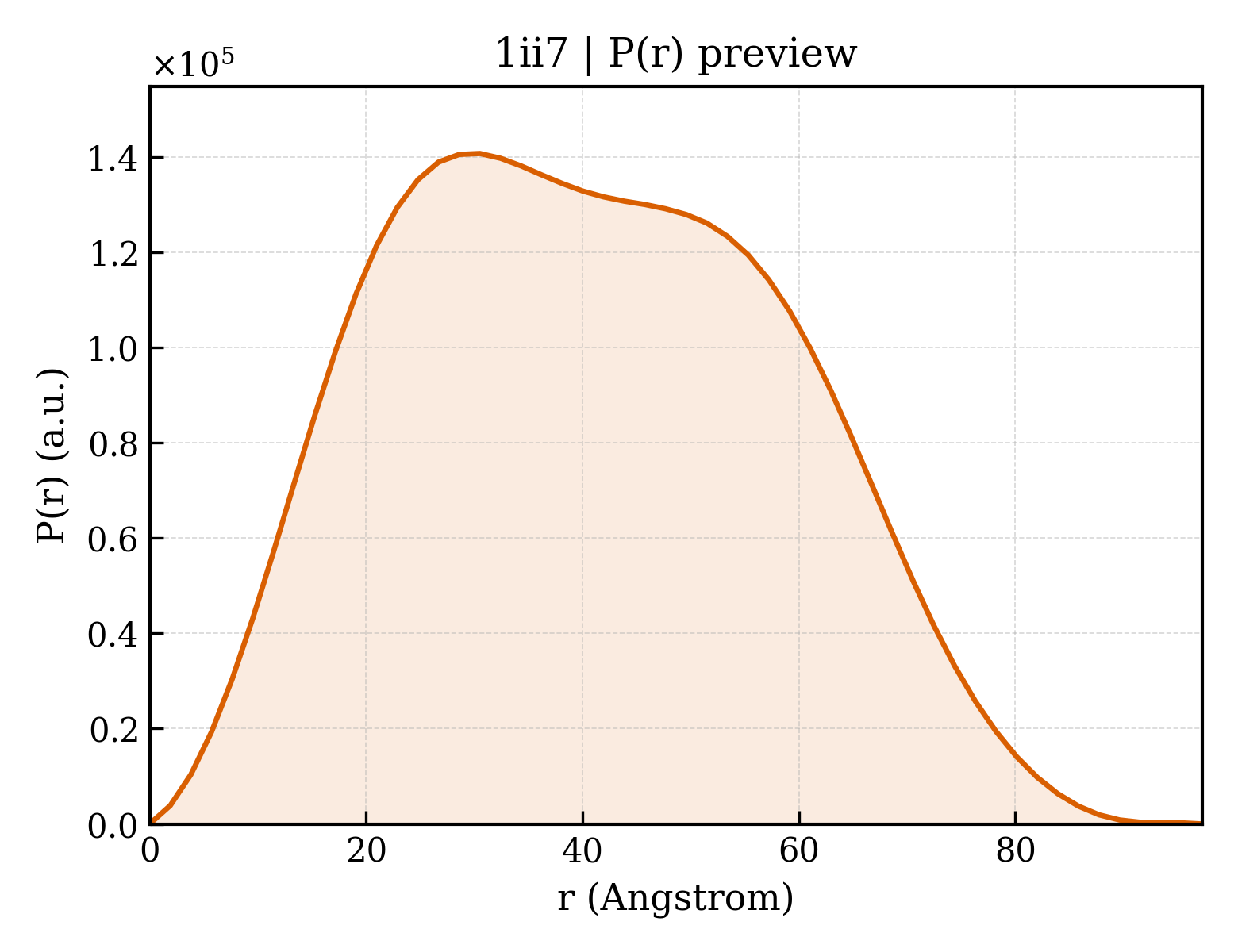

1ii7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.37 Å
Rg (electron density)	30.91 Å
Total Rg	31.55 Å
Atom count	5547
Residues	665
Excluded volume	99195 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ii7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Mre11 nuclease
Molecular weight formula_weight	38928.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5811

MKFAHLADIHLGYEQFHKPQREEEFAEAFKNALEIAVQENVDFILIAGDLFHSSRPSPGTLKKAIALLQIPKEHSIPVFAIEGNHDRTQRGPSVLNLLEDFGLVYVIGMRKEKVENEYLTSERLGNGEYLVKGVYKDLEIHGMKYMSSAWFEANKEILKRLFRPTDNAILMLHQGVREVSEARGEDYFEIGLGDLPEGYLYYALGHIHKRYETSYSGSPVVYPGSLERWDFGDYEVRYEWDGIKFKERYGVNKGFYIVEDFKPRFVEIKVRPFIDVKIKGSEEEIRKAIKRLIPLIPKNAYVRLNIGWRKPFDLTEIKELLNVEYLKIDTWRI

Source Source

Source organism organism	Pyrococcus furiosus
NCBI taxonomy ID ncbi_taxonomy_id	2261
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	2'-DEOXYADENOSINE-5'-MONOPHOSPHATE
Molecular weight formula_weight	331.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	264

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ii7a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.159 — Metallo-dependent phosphatases
Superfamily Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
Family Family family	d.159.1.4 — DNA double-strand break repair nuclease

Domain ID domain_id	d1ii7b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.159 — Metallo-dependent phosphatases
Superfamily Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
Family Family family	d.159.1.4 — DNA double-strand break repair nuclease

CATH v4.4 (4 domains)

Domain ID domain_id	1ii7A01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
Homologous superfamily homologous superfamily	10 — Metallo-dependent phosphatases

Domain ID domain_id	1ii7A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	110 — Translation Initiation Factor IF3
Homologous superfamily homologous superfamily	80 — DNA double-strand break repair nuclease

Domain ID domain_id	1ii7B01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
Homologous superfamily homologous superfamily	10 — Metallo-dependent phosphatases

Domain ID domain_id	1ii7B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	110 — Translation Initiation Factor IF3
Homologous superfamily homologous superfamily	80 — DNA double-strand break repair nuclease

▶

Unit-cell length a length_a	74.290 Å
Unit-cell length b length_b	88.740 Å
Unit-cell length c length_c	145.120 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2640
