SAXSdb — 1iit

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Slr1257 protein

Synechocystis sp. PCC 6803 substr. Kazusa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SERINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P73797_SYNY3
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–102； UniProt 44–140 Author chain A； PDBConstruct 104–232； UniProt 256–384

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1iit
Deposition date deposition_date	2001-04-24
Structure title title	GLUR0 LIGAND BINDING CORE COMPLEX WITH L-SERINE
Keywords keywords	MEMBRANE PROTEIN, SAME FOLD AS PBPS; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1iit__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1iit__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

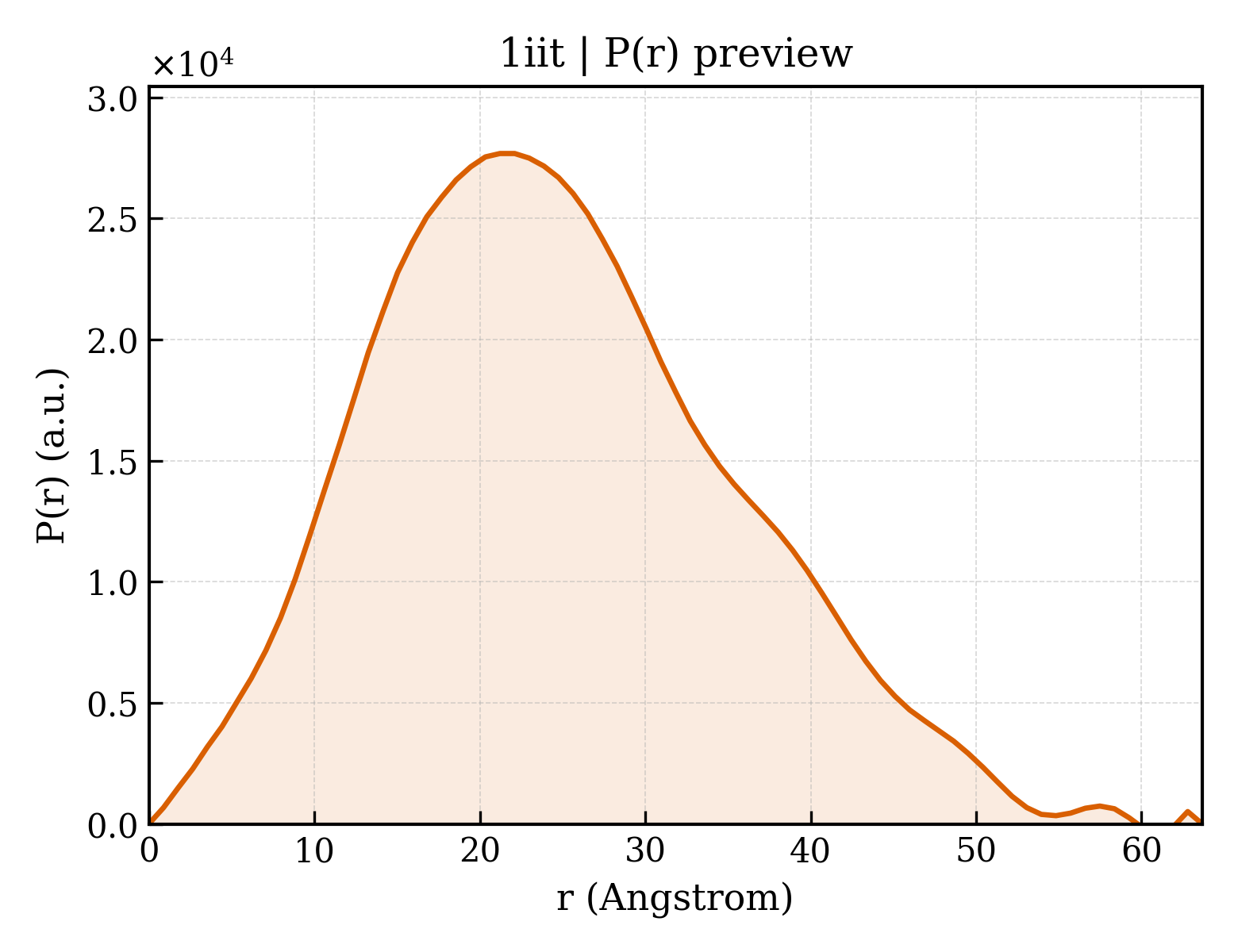

1iit__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.41 Å
Rg (electron density)	23.04 Å
Total Rg	24.02 Å
Atom count	3326
Residues	442
Excluded volume	59665 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1iit__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Slr1257 protein
Molecular weight formula_weight	25566.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1755

GSAMALKVGVVGNPPFVFYGEGKNAAFTGISLDVWRAVAESQKWNSEYVRQNSISAGITAVAEGELDILIGPISVTPERAAIEGITFTQPYFSSGIGLLIPGTATPLFRSVGDLKNKEVAVVRDTTAVDWANFYQADVRETNNLTAAITLLQKKQVEAVMFDRPALIYYTRQNPNLNLEVTEIRVSLEPYGFVLKENSPLQKTINVEMLNLLYSRVIAEFTERWLGPGIEEN

Source Source

Source organism organism	Synechocystis sp. PCC 6803 substr. Kazusa
NCBI taxonomy ID ncbi_taxonomy_id	1111708
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SERINE
Molecular weight formula_weight	105.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	92

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1iita1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d1iita2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1iitA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1iitA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

Unit-cell length a length_a	97.865 Å
Unit-cell length b length_b	49.769 Å
Unit-cell length c length_c	55.633 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.23 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2110
R_work r_work	0.2090
R_free r_free	0.2500
