Physarum polycephalum
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | LAV1_PHYPO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–323； UniProt 33–355 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1ij5 |
| Deposition date deposition_date | 2001-04-25 |
| Structure title title | METAL-FREE STRUCTURE OF MULTIDOMAIN EF-HAND PROTEIN, CBP40, FROM TRUE SLIME MOLD |
| Keywords keywords | FOURTY KDA CALCIUM BINDING PROTEIN, CBP40, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

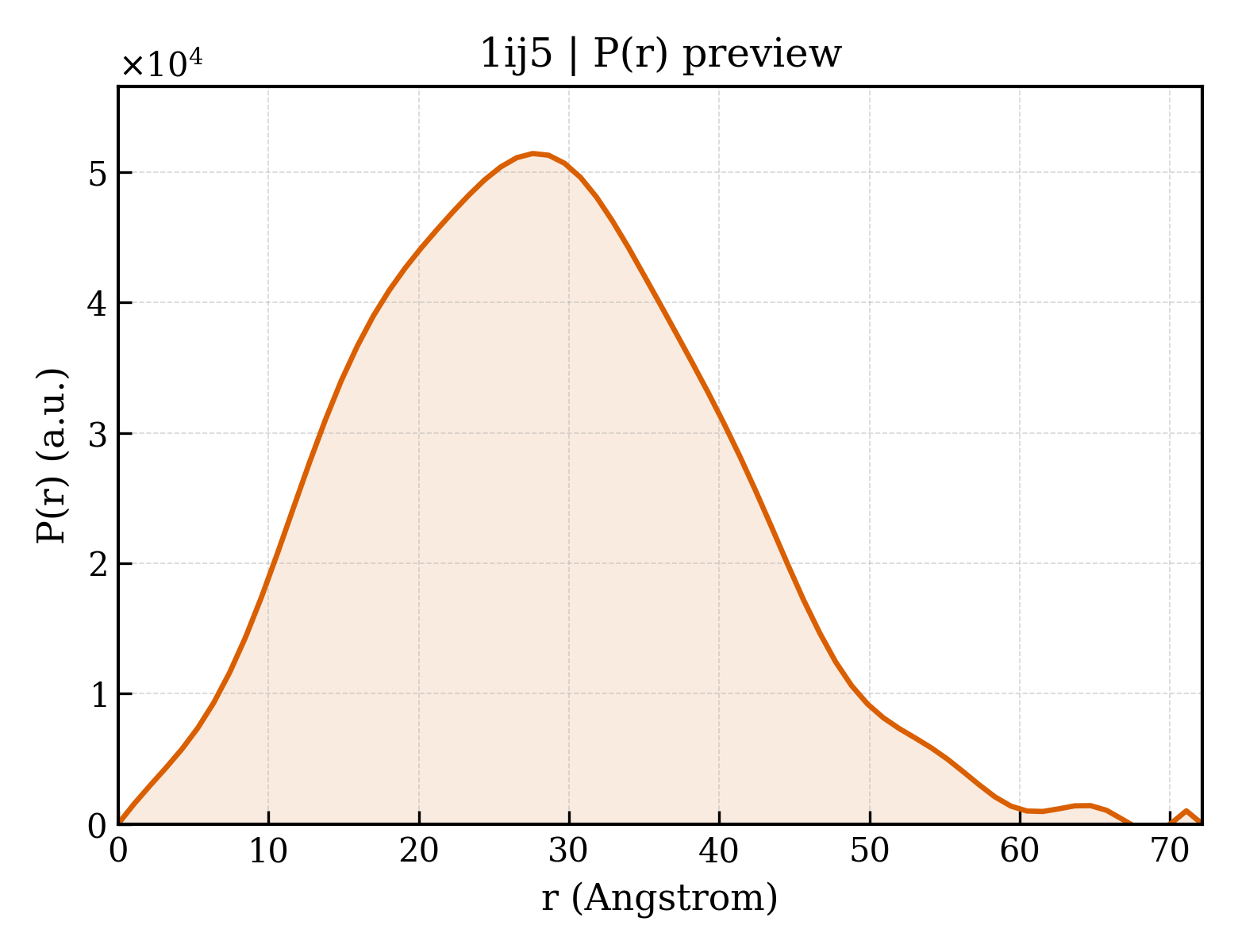

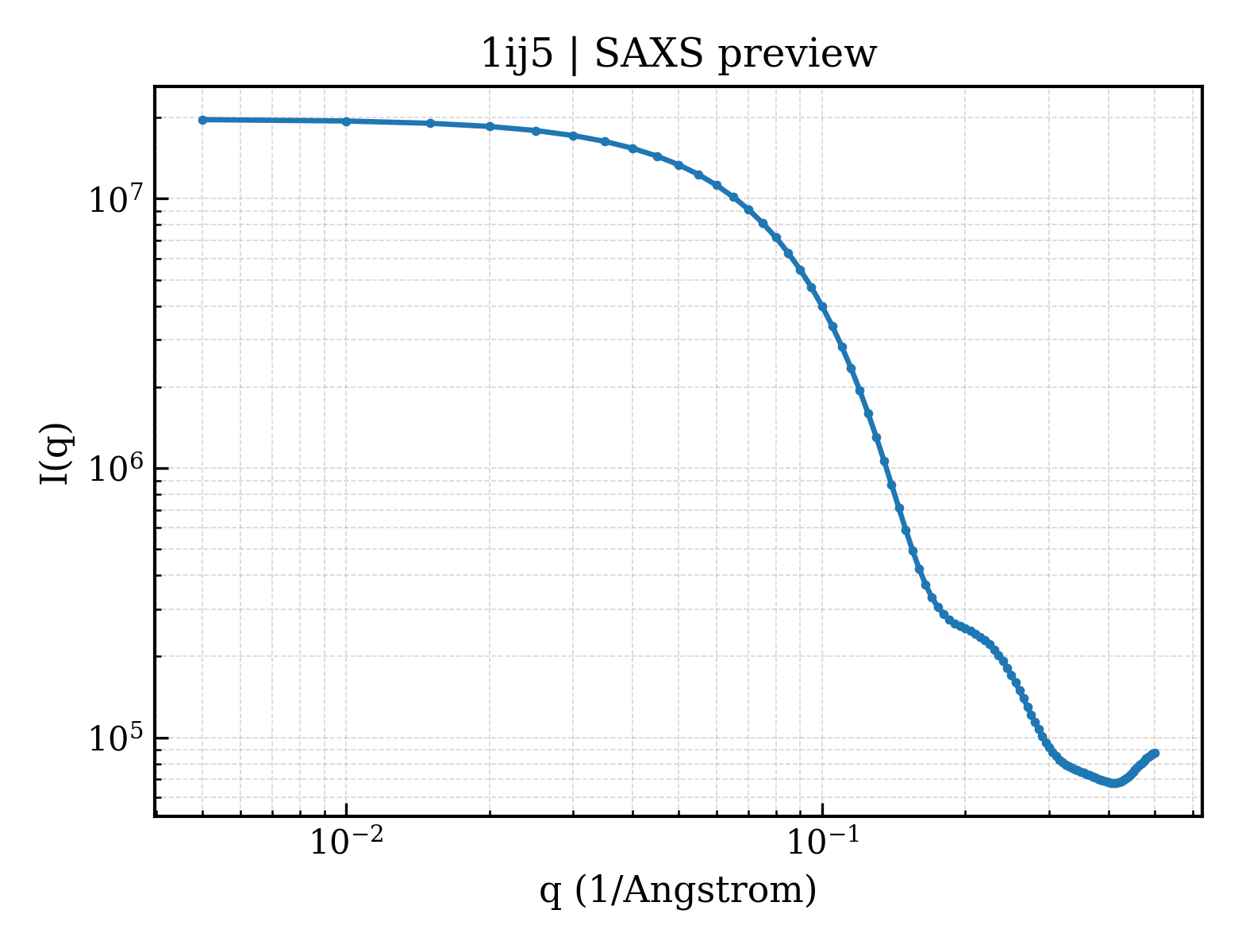

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 21.61 Å |
| Rg (electron density) | 20.21 Å |
| Total Rg | 21.11 Å |
| Atom count | 2364 |
| Residues | 305 |
| Excluded volume | 41853 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1ij5a_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.39 — EF Hand-like |
| Superfamily Superfamily superfamily | a.39.1 — EF-hand |
| Family Family family | a.39.1.9 — Cbp40 (plasmodial specific CaII-binding protein LAV1-2) |
| Domain ID domain_id | 1ij5A01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1 |
| Homologous superfamily homologous superfamily | 90 — |
| Domain ID domain_id | 1ij5A02 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 238 — Recoverin; domain 1 |
| Homologous superfamily homologous superfamily | 10 — EF-hand |
| Domain ID domain_id | 1ij5A03 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 238 — Recoverin; domain 1 |
| Homologous superfamily homologous superfamily | 10 — EF-hand |
