SAXSdb — 1imo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA LIGASE III

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 835–922	Fragment：BRCT DOMAIN	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.6；288 K；Ionic strength (raw mmCIF value) 0.4-1.0 mM；Pressure ambient NMR sample composition：50 mM NaH2PO4, 150 mM NaCl, 25 mM d10-DTTT \| 90-95% H2O and 10-5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1IMO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
10YE DNA Ligase IIIa bound to nucleosome containing a nick at SHL0 Deposited 2026-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 12-meric	Chain L 474–681（208 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
10YF DNA Ligase IIIa bound to nucleosome containing a nick at SHL-2 (composite) Deposited 2026-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 12-meric	Chain L 474–681（208 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution not provided
10YG DNA Ligase IIIa bound to a nucleosome containing a nick at SHL-4 (composite) Deposited 2026-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 12-meric	Chain L 474–681（208 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution not provided
10YH DNA Ligase IIIa bound to a nucleosome containing a nick at SHL-6 (composite) Deposited 2026-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 12-meric	Chain L 474–681（208 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
10YI XRCC1-DNA Ligase IIIa complex bound to a nucleosome containing a nick at SHL-6 (composite) Deposited 2026-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 12-meric	Chain L 474–681（208 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
1IN1 NMR STRUCTURE OF HUMAN DNA LIGASE IIIALPHA BRCT DOMAIN Deposited 2001-05-11	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 835–922（88 aa） Fragment：BRCT DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；288 K；Ionic strength (raw mmCIF value) 0.4-1.0 mM；Pressure ambient NMR sample composition 50 mM NaH2PO4, 150 mM NaCl, 25 mM d10-DTT \| 90-95% H2O and 10-5% D2O	Resolution not provided
1UW0 Solution structure of the zinc-finger domain from DNA ligase IIIa Deposited 2004-01-27	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–117（117 aa） Fragment：ZINC-FINGER DOMAIN, RESIDUES 1-117	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 6.8；300 K；Pressure 1	Resolution not provided
3L2P Human DNA Ligase III Recognizes DNA Ends by Dynamic Switching Between Two DNA Bound States Deposited 2009-12-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 257–833（577 aa） Fragment：UNP residues 257-833	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；295 K；1.8 M ammonium sulfate, 0.1M sodium acetate pH 5.6, VAPOR DIFFUSION, temperature 295K	Resolution 3.00 Å R-free 0.271
3PC7 X-ray crystal structure of the DNA ligase III-alpha BRCT domain. Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 924–1009（86 aa） Fragment：unp residues 924-1009	Mutation：C842S, C921S Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；25 % polyethylene glycol 3350, 0.1 M BisTris, 0.25 M ammonium acetate , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.65 Å R-free 0.198
3PC7 X-ray crystal structure of the DNA ligase III-alpha BRCT domain. Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 924–1009（86 aa） Fragment：unp residues 924-1009	Mutation：C842S, C921S Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；25 % polyethylene glycol 3350, 0.1 M BisTris, 0.25 M ammonium acetate , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.65 Å R-free 0.198
3PC8 X-ray crystal structure of the heterodimeric complex of XRCC1 and DNA ligase III-alpha BRCT domains. Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 924–1008（85 aa） Fragment：unp residues 924-1008 Chain D 924–1008（85 aa） Fragment：unp residues 924-1008	Mutation：C842S, C921S Mutation：C842S, C921S	MG MAGNESIUM ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% PEG 4000, 0.1M Tris, and 0.2 M MgCl2 , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.31 Å R-free 0.246
3PC8 X-ray crystal structure of the heterodimeric complex of XRCC1 and DNA ligase III-alpha BRCT domains. Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 924–1008（85 aa） Fragment：unp residues 924-1008	Mutation：C842S, C921S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% PEG 4000, 0.1M Tris, and 0.2 M MgCl2 , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.31 Å R-free 0.246
3PC8 X-ray crystal structure of the heterodimeric complex of XRCC1 and DNA ligase III-alpha BRCT domains. Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 924–1008（85 aa） Fragment：unp residues 924-1008	Mutation：C842S, C921S	MG MAGNESIUM ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% PEG 4000, 0.1M Tris, and 0.2 M MgCl2 , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.31 Å R-free 0.246
3QVG XRCC1 bound to DNA ligase Deposited 2011-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 924–1008（85 aa） Fragment：unp residues 924-1008 Chain C 924–1008（85 aa） Fragment：unp residues 924-1008	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30 % PEG4000, 0.1 M Tris, 0.2 M NaAcetate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.26 Å R-free 0.270
3QVG XRCC1 bound to DNA ligase Deposited 2011-02-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 924–1008（85 aa） Fragment：unp residues 924-1008	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30 % PEG4000, 0.1 M Tris, 0.2 M NaAcetate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.26 Å R-free 0.270
3QVG XRCC1 bound to DNA ligase Deposited 2011-02-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 924–1008（85 aa） Fragment：unp residues 924-1008	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30 % PEG4000, 0.1 M Tris, 0.2 M NaAcetate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.26 Å R-free 0.270
6WH1 Structure of the complex of human DNA ligase III-alpha and XRCC1 BRCT domains Deposited 2020-04-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 932–1009（78 aa） Fragment：BRCT domain	Mutation：C922S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；8-10% isopropanol and 0.1M Bis-Tris pH 5.5	Resolution 2.40 Å R-free 0.272

12 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DNL3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–88； UniProt 835–922

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1imo
Deposition date deposition_date	2001-05-11
Structure title title	NMR STRUCTURE OF HUMAN DNA LIGASE IIIALPHA BRCT DOMAIN
Keywords keywords	parallel beta sheet, LIGASE; LIGASE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.36 Å
Radius of gyration Rg (electron density) rg_electron	11.81 Å
Forward intensity I(0) i0	2055400.00
Molecular weight molecular_weight	9957.0 kDa
Excluded volume excluded_volume	12484 Å³
Envelope volume envelope_volume	11803 Å³
Hydration-shell volume shell_volume	8835 Å³
Envelope diameter envelope_diameter	39.9 Å
Shell Rg shell_rg	17.07 Å
Envelope Rg envelope_rg	12.14 Å
Shape Rg shape_rg	11.76 Å
Total Rg total_rg	13.16 Å
Total atoms total_atoms	1398
Residues n_residues	88
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.4 Å
Rg (real space) rg_real	13.31 Å
Rg uncertainty (real space) rg_real_error	0.37 Å
I(0) (real space) i0_real	2.0550e+06
I(0) uncertainty (real space) i0_real_error	2.5860e+04
Rg (reciprocal space) rg_reciprocal	13.31 Å
I(0) (reciprocal space) i0_reciprocal	2055000.0000
Solution quality estimate total_estimate	0.8809
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.6 Å
Skewness Skewness skewness	0.218
Kurtosis Kurtosis kurtosis	-0.275
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	281900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.825; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.973

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1imoa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.15 — BRCT domain
Superfamily Superfamily superfamily	c.15.1 — BRCT domain
Family Family family	c.15.1.2 — DNA ligase

Domain ID domain_id	d1imoa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1imoA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

▶

8. Citations (2)

▶

Description description	DNA LIGASE III
Molecular weight formula_weight	9985.4 kDa
EC 编号 ec_number	6.5.1.1
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1398

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/im/1imo/1imo.fit
pddf	/app/data/pr_computation/im/1imo/1imo.pr.out
profile	/app/data/saxs_computation/im/1imo/1imo.dat

NMR STRUCTURE OF HUMAN DNA LIGASE IIIALPHA BRCT DOMAIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA LIGASE III

State in the Current Structure

Other States of the Same Protein in the Database

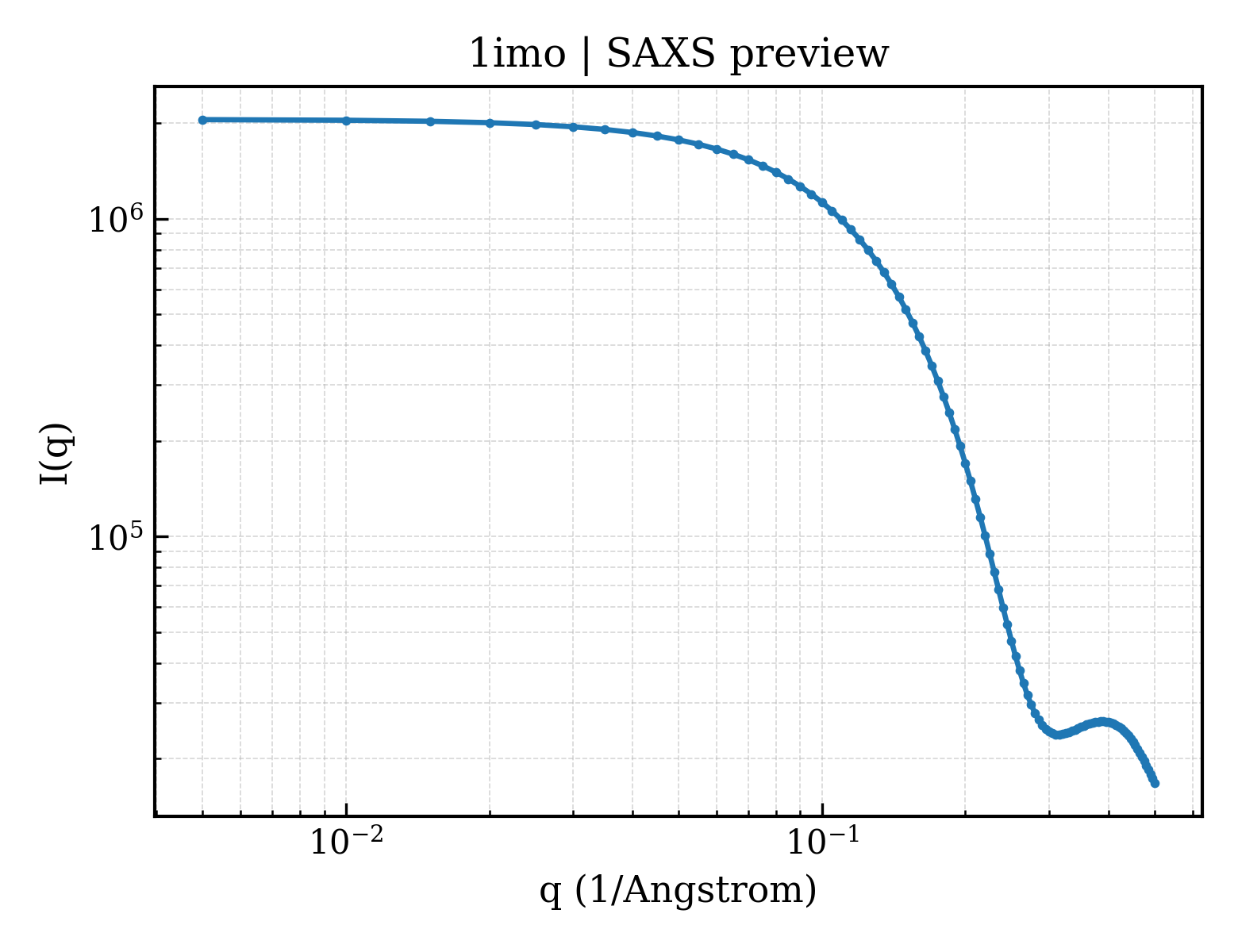

SAXS scattering curve SAXS Profile
