SAXSdb — 1in6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HOLLIDAY JUNCTION DNA HELICASE RUVB

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	COBALT (II) ION × 1 ACETATE ION × 1 ADENOSINE-5'-DIPHOSPHATE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–334； UniProt 1–334

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1in6
Deposition date deposition_date	2001-05-12
Structure title title	THERMOTOGA MARITIMA RUVB K64R MUTANT
Keywords keywords	;AAA+-Class ATPase, Winged-Helix Domain, Holliday Junction, Branch Migration, Walker A, Walker B, Sensor 1, Sensor 2, Arginine Finger, DNA BINDING PROTEIN ;; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1in6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1in6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

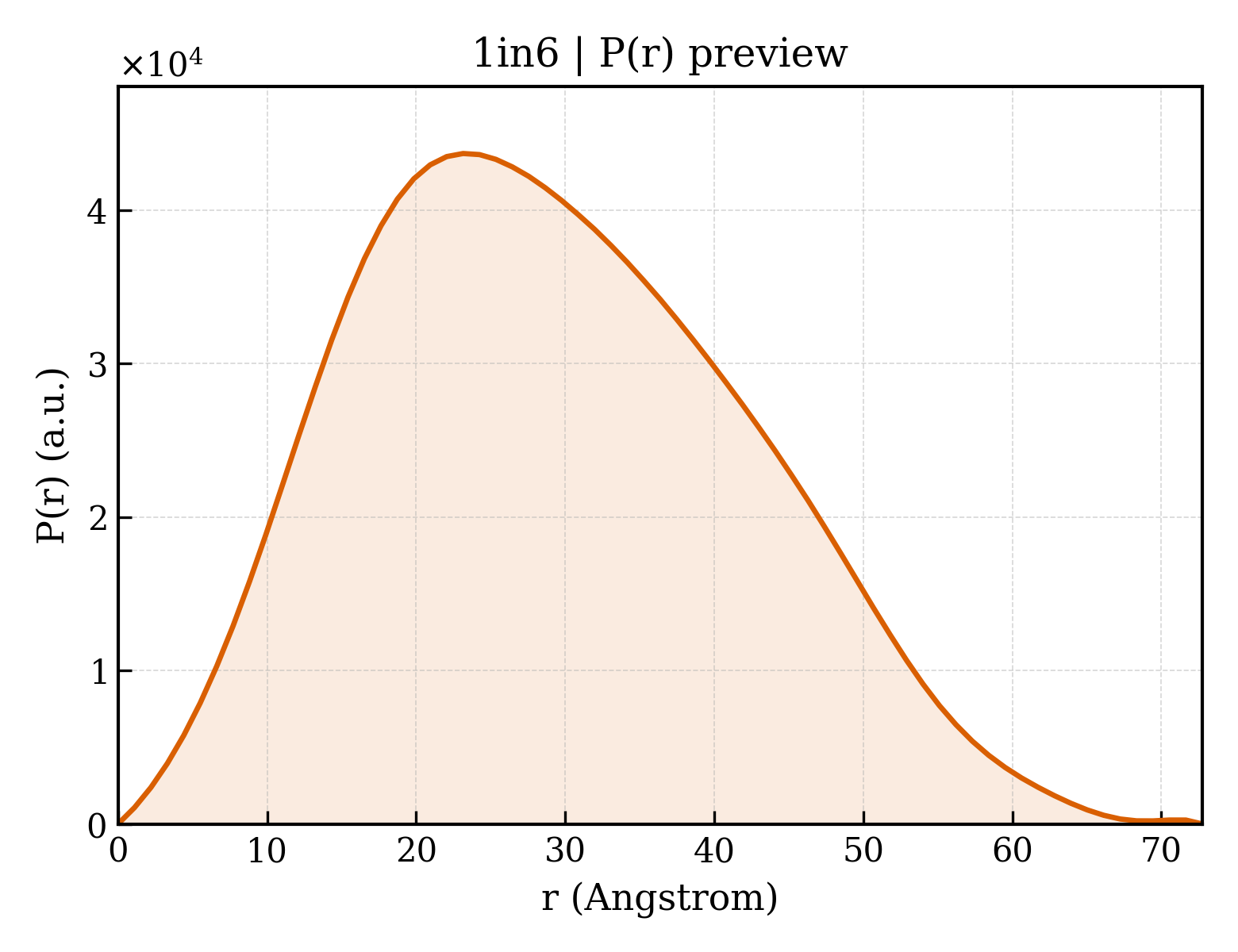

1in6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.55 Å
Rg (electron density)	21.68 Å
Total Rg	22.49 Å
Atom count	2379
Residues	300
Excluded volume	42889 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1in6__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HOLLIDAY JUNCTION DNA HELICASE RUVB
Molecular weight formula_weight	37234.2 kDa
Mutation mutation	K64R
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2590

MSEFLTPERTVYDSGVQFLRPKSLDEFIGQENVKKKLSLALEAAKMRGEVLDHVLLAGPPGLGRTTLAHIIASELQTNIHVTSGPVLVKQGDMAAILTSLERGDVLFIDEIHRLNKAVEELLYSAIEDFQIDIMIGKGPSAKSIRIDIQPFTLVGATTRSGLLSSPLRSRFGIILELDFYTVKELKEIIKRAASLMDVEIEDAAAEMIAKRSRGTPRIAIRLTKRVRDMLTVVKADRINTDIVLKTMEVLNIDDEGLDEFDRKILKTIIEIYRGGPVGLNALAASLGVEADTLSEVYEPYLLQAGFLARTPRGRIVTEKAYKHLKYEVPENRLF

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	COBALT (II) ION
Molecular weight formula_weight	58.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	185

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1in6a1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.11 — Helicase DNA-binding domain

Domain ID domain_id	d1in6a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

CATH v4.4 (3 domains)

Domain ID domain_id	1in6A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1in6A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1in6A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

▶

Unit-cell length a length_a	86.559 Å
Unit-cell length b length_b	86.559 Å
Unit-cell length c length_c	81.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2340
R_work r_work	0.2340
R_free r_free	0.2660
