SAXSdb — 1inf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INFLUENZA VIRUS B/LEE/40 NEURAMINIDASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CALCIUM ION × 8 4-(ACETYLAMINO)-3-GUANIDINOBENZOIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NRAM_INBLE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–390； UniProt 77–466

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1inf
Deposition date deposition_date	1995-07-07
Structure title title	INFLUENZA VIRUS B/LEE/40 NEURAMINIDASE COMPLEXED WITH BANA113 INHIBITOR
Keywords keywords	NEURAMINIDASE, SIALIDASE, HYDROLASE, O-GLYCOSYL, HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1inf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1inf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

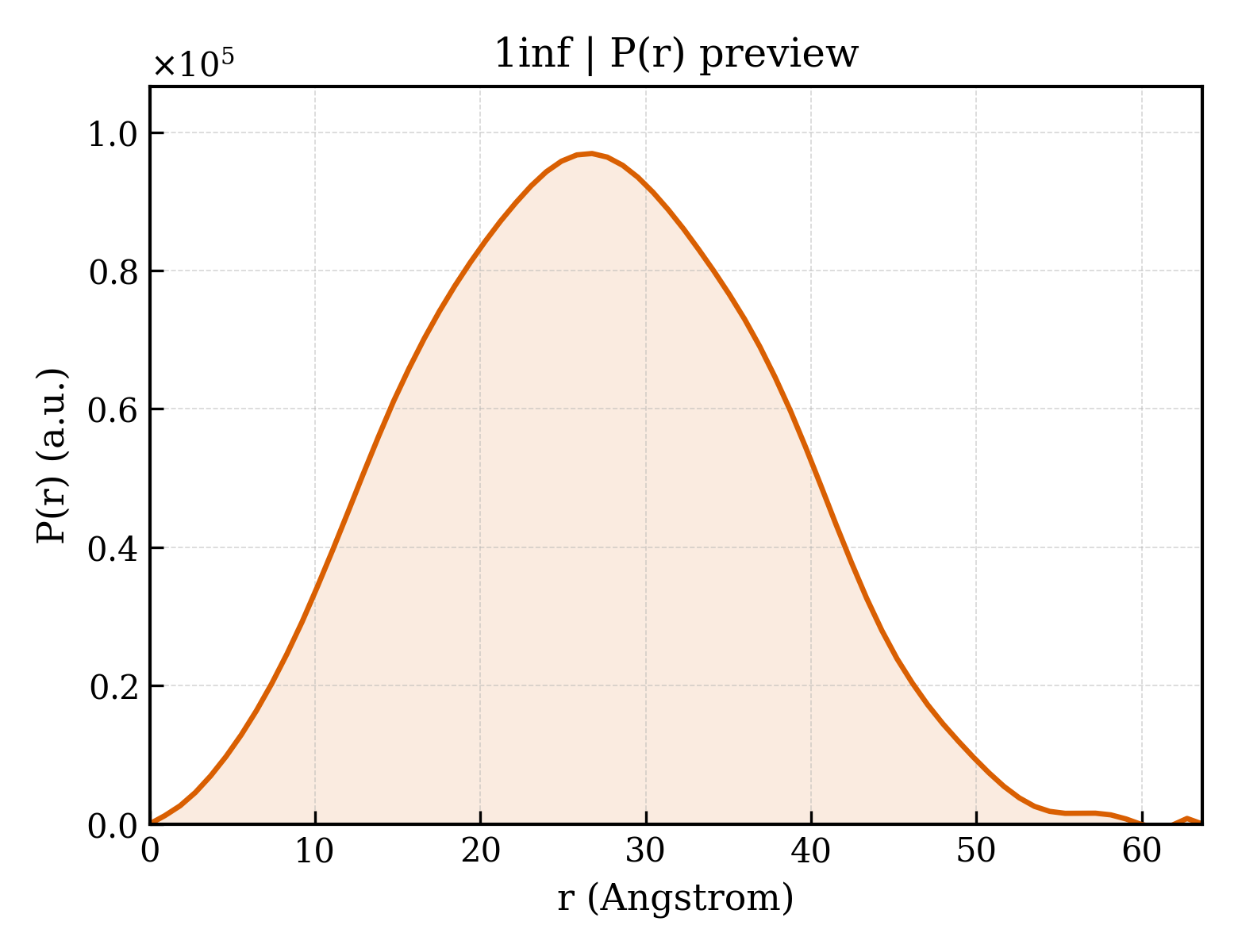

1inf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.30 Å
Rg (electron density)	34.43 Å
Total Rg	35.01 Å
Atom count	15137
Residues	1560
Excluded volume	217190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1inf__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	INFLUENZA VIRUS B/LEE/40 NEURAMINIDASE
Molecular weight formula_weight	43432.3 kDa
EC 编号 ec_number	3.2.1.18
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4157

EPEWTYPRLSCQGSTFQKALLISPHRFGEIKGNSAPLIIREPFVACGPKECRHFALTHYAAQPGGYYNGTRKDRNKLRHLVSVKLGKIPTVENSIFHMAAWSGSACHDGREWTYIGVDGPDNDALVKIKYGEAYTDTYHSYAHNILRTQESACNCIGGDCYLMITDGSASGISKCRFLKIREGRIIKEILPTGRVEHTEECTCGFASNKTIECACRDNSYTAKRPFVKLNVETDTAEIRLMCTKTYLDTPRPDDGSIAGPCESNGDKWLGGIKGGFVHQRMASKIGRWYSRTMSKTNRMGMELYVKYDGDPWTDSDALTLSGVMVSIEEPGWYSFGFEIKDKKCDVPCIGIEMVHDGGKDTWHSAATAIYCLMGSGQLLWDTVTGVDMAL

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	4-(ACETYLAMINO)-3-GUANIDINOBENZOIC ACID
Molecular weight formula_weight	238.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	124

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1infa_
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

CATH v4.4 (1 domains)

Domain ID domain_id	1infA00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

▶

7. Citations (7)

Structure-based inhibitors of influenza virus sialidase. A benzoic acid lead with novel interaction.

J.Med.Chem. (1995)

PMID: 7650674 · DOI: 10.1021/jm00017a005 PRIMARY

Benzoic Acid Inhibitors of Influenza Virus Neuraminidase

Acta Crystallogr.,Sect.D (1995)

Structure-Based Inhibitors of Influenza Viral Neuraminidase. A Benzoic Acid Lead with Novel Interaction

J.Med.Chem. (1995)

Structures of Aromatic Inhibitors of Influenza Virus Neuraminidase

Biochemistry (1995)

;Structure of Influenza Virus Neuraminidase B/Lee/40 Complexed with Sialic Acid and a Dehydro Analog at 1.8-A Resolution: Implications for the Catalytic Mechanism ;

Biochemistry (1994)

Three-Dimensional Structure of the Neuraminidase of Influenza Virus A/Tokyo/3/67 at 2.2 A Resolution

J.Mol.Biol. (1991)

Refined Atomic Structures of N9 Subtype Influenza Virus Neuraminidase and Escape Mutants

J.Mol.Biol. (1991)

Unit-cell length a length_a	124.250 Å
Unit-cell length b length_b	124.250 Å
Unit-cell length c length_c	71.350 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	6.500 Å
R factor r_factor	0.1590
R_work r_work	0.1590
R_free r_free	—
