SAXSdb — 1iom

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CITRATE SYNTHASE

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 CARBONATE ION × 2 GLYCEROL × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9LCX9_THETH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–377； UniProt 1–377

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1iom
Deposition date deposition_date	2001-03-19
Structure title title	CRYSTAL STRUCTURE OF CITRATE SYNTHASE FROM THERMUS THERMOPHILUS HB8
Keywords keywords	Open Form, synthase, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1iom__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1iom__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

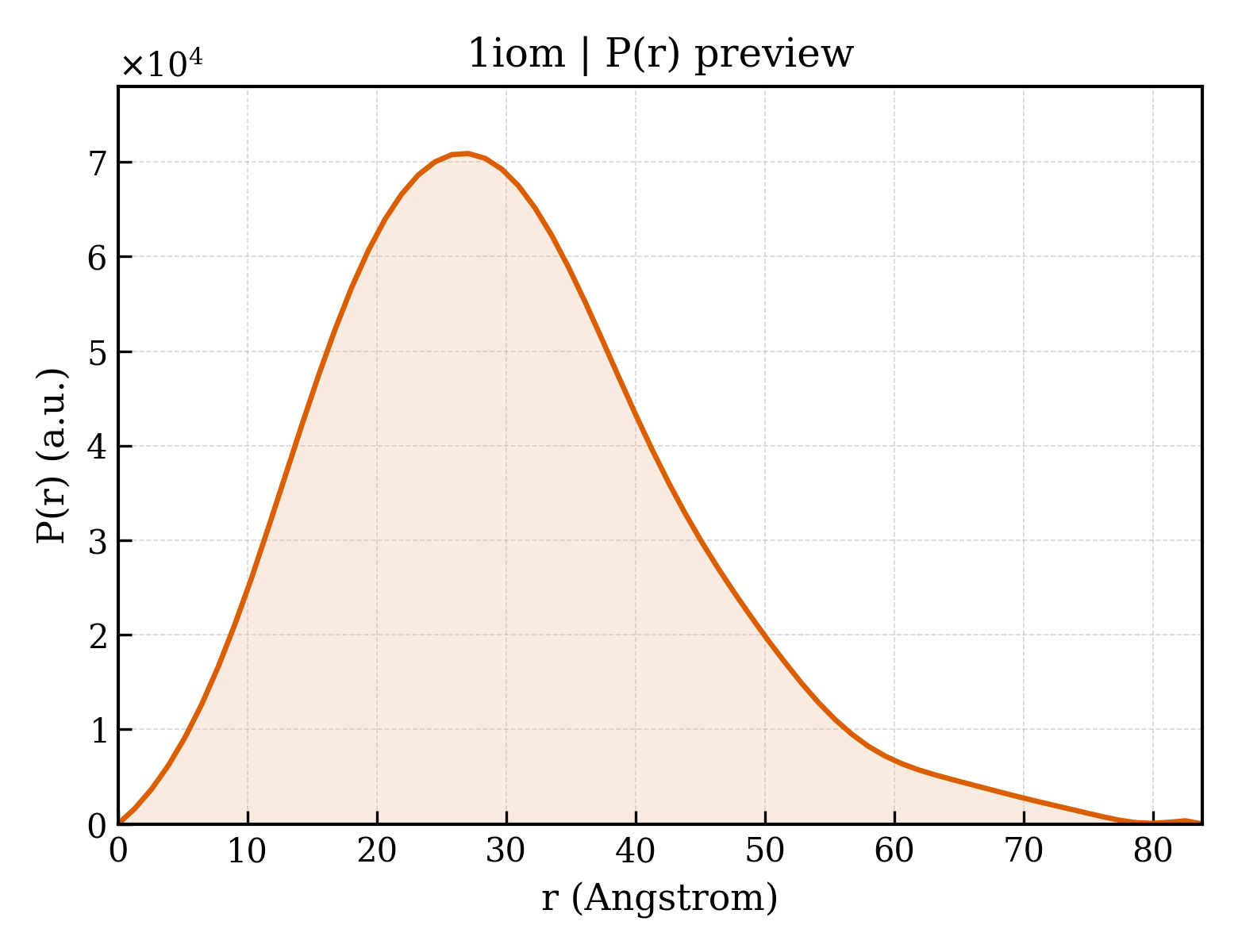

1iom__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.48 Å
Rg (electron density)	27.64 Å
Total Rg	28.42 Å
Atom count	5912
Residues	748
Excluded volume	105430 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1iom__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CITRATE SYNTHASE
Molecular weight formula_weight	42362.4 kDa
EC 编号 ec_number	4.1.3.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3476

MEVARGLEGVLFTESRMCYIDGQQGKLYYYGIPIQELAEKSSFEETTFLLLHGRLPRRQELEEFSAALARRRALPAHLLESFKRYPVSAHPMSFLRTAVSEFGMLDPTEGDISREALYEKGLDLIAKFATIVAANKRLKEGKEPIPPREDLSHAANFLYMANGVEPSPEQARLMDAALILHAEHGFNASTFTAIAAFSTETDLYSAITAAVASLKGPRHGGANEAVMRMIQEIGTPERAREWVREKLAKKERIMGMGHRVYKAFDPRAGVLEKLARLVAEKHGHSKEYQILKIVEEEAGKVLNPRGIYPNVDFYSGVVYSDLGFSLEFFTPIFAVARISGWVGHILEYQELDNRLLRPGAKYVGELDVPYVPLEARE

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CARBONATE ION
Molecular weight formula_weight	60.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	469

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ioma_
Class class	a — All alpha proteins
Fold Fold fold	a.103 — Citrate synthase
Superfamily Superfamily superfamily	a.103.1 — Citrate synthase
Family Family family	a.103.1.1 — Citrate synthase

CATH v4.4 (2 domains)

Domain ID domain_id	1iomA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	580 — Citrate Synthase; domain 1
Homologous superfamily homologous superfamily	10 — Citrate Synthase, domain 1

Domain ID domain_id	1iomA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	230 — Cytochrome p450-Terp; domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome P450-Terp, domain 2

▶

Unit-cell length a length_a	84.550 Å
Unit-cell length b length_b	84.550 Å
Unit-cell length c length_c	153.520 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1720
R_work r_work	0.1720
R_free r_free	0.1850
