SAXSdb — 1ips

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ISOPENICILLIN N SYNTHASE

Emericella nidulans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MANGANESE (II) ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IPNS_EMENI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–331； UniProt 1–331 Author chain B； PDBConstruct 1–331； UniProt 1–331

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ips
Deposition date deposition_date	1997-03-21
Structure title title	ISOPENICILLIN N SYNTHASE FROM ASPERGILLUS NIDULANS (MANGANESE COMPLEX)
Keywords keywords	B-LACTAM ANTIBIOTIC, OXYGENASE, PENICILLIN BIOSYNTHESIS, ANTIBIOTIC BIOSYNTHESIS, OXIDOREDUCTASE; ANTIBIOTIC BIOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ips__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ips__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

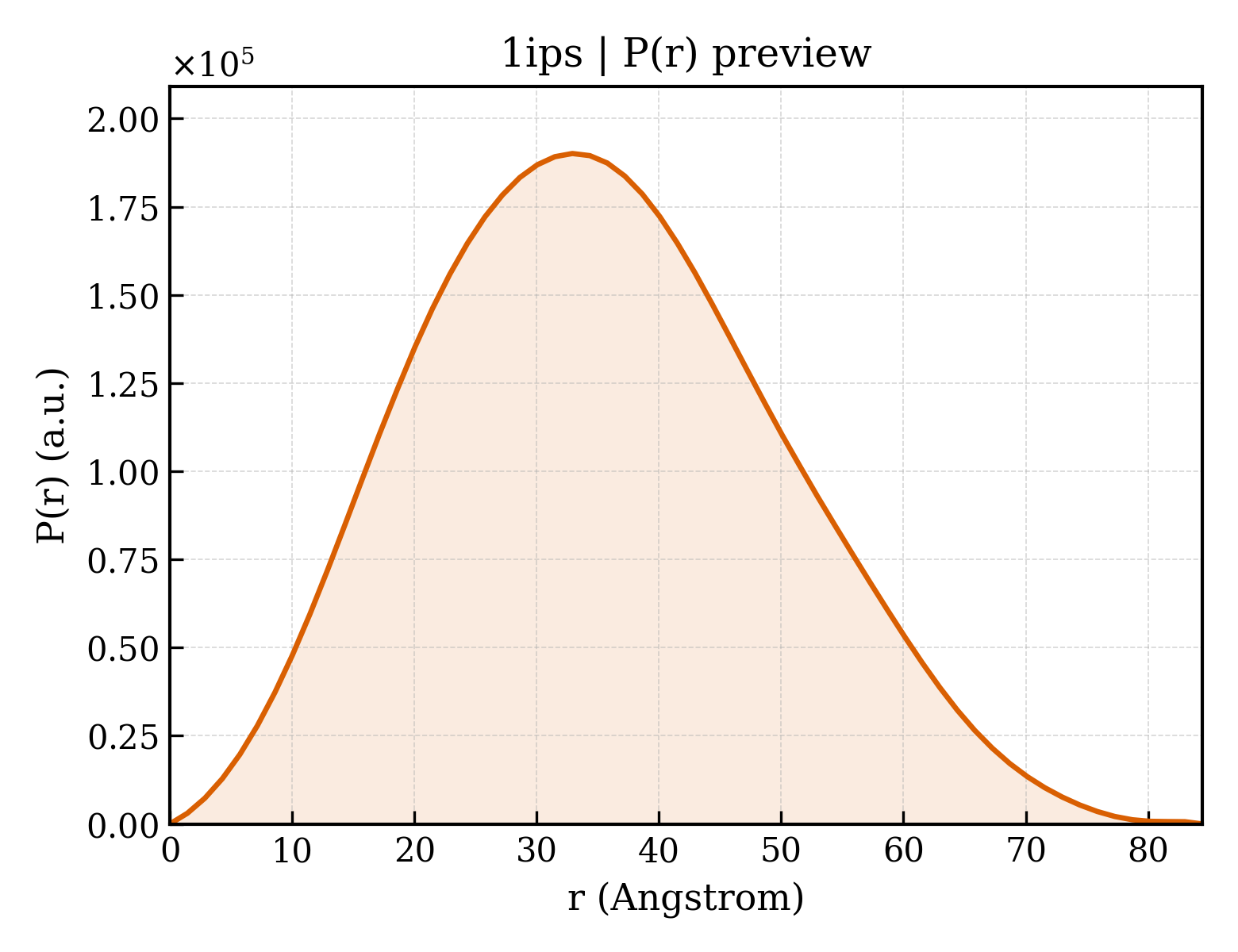

1ips__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.02 Å
Rg (electron density)	25.92 Å
Total Rg	26.78 Å
Atom count	5282
Residues	656
Excluded volume	93264 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ips__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ISOPENICILLIN N SYNTHASE
Molecular weight formula_weight	37563.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5476

MGSVSKANVPKIDVSPLFGDDQAAKMRVAQQIDAASRDTGFFYAVNHGINVQRLSQKTKEFHMSITPEEKWDLAIRAYNKEHQDQVRAGYYLSIPGKKAVESFCYLNPNFTPDHPRIQAKTPTHEVNVWPDETKHPGFQDFAEQYYWDVFGLSSALLKGYALALGKEENFFARHFKPDDTLASVVLIRYPYLDPYPEAAIKTAADGTKLSFEWHEDVSLITVLYQSNVQNLQVETAAGYQDIEADDTGYLINCGSYMAHLTNNYYKAPIHRVKWVNAERQSLPFFVNLGYDSVIDPFDPREPNGKSDREPLSYGDYLQNGLVSLINKNGQT

Source Source

Source organism organism	Emericella nidulans
NCBI taxonomy ID ncbi_taxonomy_id	162425
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	194

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ipsa_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.2 — Clavaminate synthase-like
Family Family family	b.82.2.1 — Penicillin synthase-like

Domain ID domain_id	d1ipsb_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.2 — Clavaminate synthase-like
Family Family family	b.82.2.1 — Penicillin synthase-like

CATH v4.4 (2 domains)

Domain ID domain_id	1ipsA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	330 — B-lactam Antibiotic, Isopenicillin N Synthase; Chain

Domain ID domain_id	1ipsB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	330 — B-lactam Antibiotic, Isopenicillin N Synthase; Chain

▶

Unit-cell length a length_a	59.200 Å
Unit-cell length b length_b	127.000 Å
Unit-cell length c length_c	139.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2200
R_work r_work	0.2200
R_free r_free	0.2650
