Thermus thermophilus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | MANGANESE (II) ION × 1 | Consistent with protein count |
| UniProt name | Q93R48_THETH |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–424； UniProt 40–463 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1ir6 |
| Deposition date deposition_date | 2001-09-11 |
| Structure title title | Crystal structure of exonuclease RecJ bound to manganese |
| Keywords keywords | ;manganese, DNA repair, DNA recombination, nuclease, single-stranded DNA, two domains interconnected by alpha-helix, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, HYDROLASE ;; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

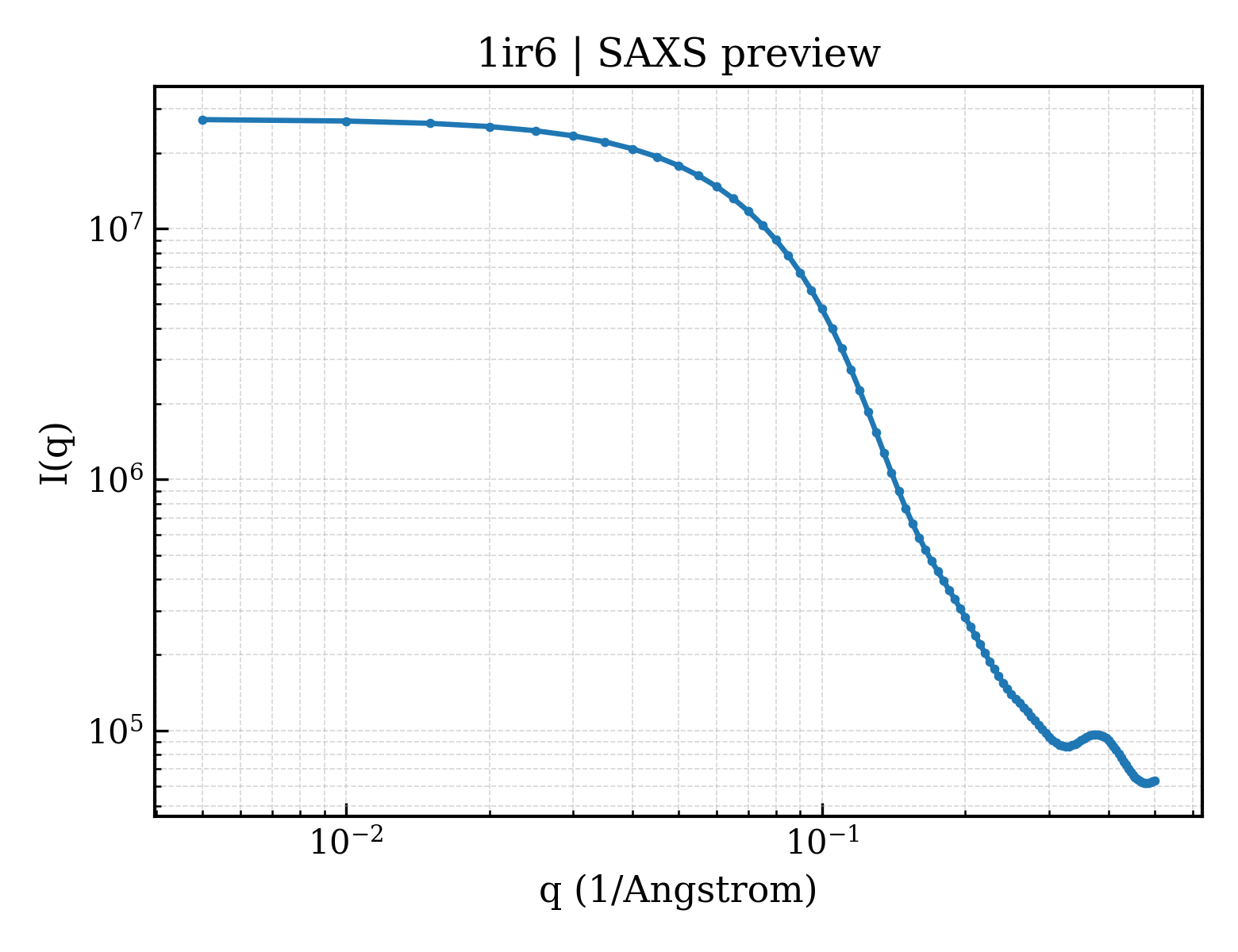

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 22.59 Å |
| Rg (electron density) | 21.81 Å |
| Total Rg | 22.64 Å |
| Atom count | 2920 |
| Residues | 385 |
| Excluded volume | 52470 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1ir6a_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.107 — DHH phosphoesterases |
| Superfamily Superfamily superfamily | c.107.1 — DHH phosphoesterases |
| Family Family family | c.107.1.2 — Exonuclease RecJ |
| Domain ID domain_id | 1ir6A01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 1640 — inorganic pyrophosphatase (n-terminal core) |
| Homologous superfamily homologous superfamily | 30 — |
| Domain ID domain_id | 1ir6A02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 310 — Diaminopimelate Epimerase; Chain A, domain 1 |
| Homologous superfamily homologous superfamily | 30 — |
