SAXSdb — 1isi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

bone marrow stromal cell antigen 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NICOTINAMIDE × 2 ;[[(2R,3S,4R,5R)-3,4-dihydroxy-5-(9H-imidazo[2,1-f]purin-6-ium-3-yl)oxolan-2-yl]methoxy-oxidanidyl-phosphoryl] [(2R,3S,4R,5R)-3,4-dihydroxy-5-oxidanidyl-oxolan-2-yl]methyl phosphate ; × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BST1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–265； UniProt 33–297 Author chain B； PDBConstruct 1–265； UniProt 33–297

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1isi
Deposition date deposition_date	2001-12-05
Structure title title	Crystal Structure Analysis of BST-1/CD157 complexed with ethenoNAD
Keywords keywords	ADP ribosyl cyclase, NAD glycohydrolase, cns, ethenoNAD, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1isi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1isi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

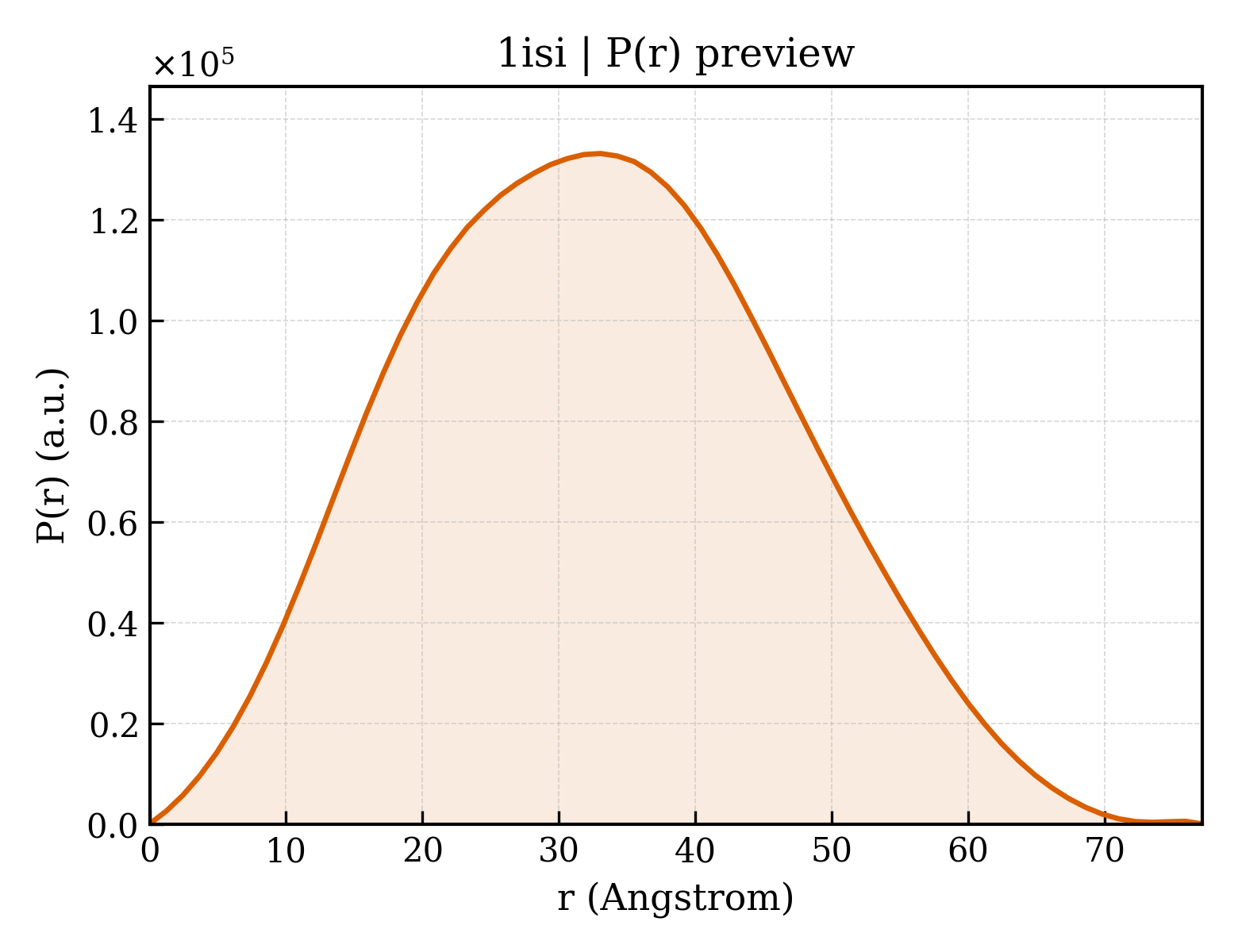

1isi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.27 Å
Rg (electron density)	24.36 Å
Total Rg	25.27 Å
Atom count	4160
Residues	500
Excluded volume	73216 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1isi__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	bone marrow stromal cell antigen 1
Molecular weight formula_weight	30172.2 kDa
EC 编号 ec_number	3.2.2.5
Mutation mutation	N34D, N63T, N116A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4422

RWRAEGTSAHLRDIFLGRCAEYRALLSPEQRNKDCTAIWEAFKVALDKDPCSVLPSDYDLFITLSRHSIPRDKSLFWENSHLLVNSFADNTRRFMPLSDVLYGRVADFLSWCRQKADSGLDYQSCPTSEDCENNPVDSFWKRASIQYSKDSSGVIHVMLNGSEPTGAYPIKGFFADYEIPNLQKEKITRIEIWVMHEIGGPNVESCGEGSMKVLEKRLKDMGFQYSCINDYRPVKLLQCVDHSTHPDCALKSAAAATQRKAPSLY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	NICOTINAMIDE
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	;[[(2R,3S,4R,5R)-3,4-dihydroxy-5-(9H-imidazo[2,1-f]purin-6-ium-3-yl)oxolan-2-yl]methoxy-oxidanidyl-phosphoryl] [(2R,3S,4R,5R)-3,4-dihydroxy-5-oxidanidyl-oxolan-2-yl]methyl phosphate ;
Molecular weight formula_weight	582.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	262

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1isia_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.14 — N-(deoxy)ribosyltransferase-like
Family Family family	c.23.14.3 — ADP ribosyl cyclase-like

Domain ID domain_id	d1isib_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.14 — N-(deoxy)ribosyltransferase-like
Family Family family	c.23.14.3 — ADP ribosyl cyclase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1isiA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	82 — ADP Ribosyl Cyclase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — ADP Ribosyl Cyclase; Chain A, domain 1

Domain ID domain_id	1isiA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1isiB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	82 — ADP Ribosyl Cyclase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — ADP Ribosyl Cyclase; Chain A, domain 1

Domain ID domain_id	1isiB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

Unit-cell length a length_a	58.945 Å
Unit-cell length b length_b	112.740 Å
Unit-cell length c length_c	130.851 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	19.570 Å
R factor r_factor	—
R_work r_work	0.2190
R_free r_free	0.2460
