1. Protein Identity and Related Structures Protein Identity & Related Structures

Cyclophilin A

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 0–161	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 6000, EDTA, ethanol, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.216
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 0–161	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 6000, EDTA, ethanol, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.216

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1IST	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1VDN Crystal Structure Of Yeast Cyclophilin A Complexed With ACE-Ala-Ala-Pro-Ala-7-Amino-4-Methylcoumarin Deposited 2004-03-24	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 0–161（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；ammonium sulfate, methanol, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.60 Å R-free 0.237
9CF0 Parasitella parasitica Fanzor (PpFz) State 1 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: pentameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.47 Å
9CF1 Parasitella parasitica Fanzor (PpFz) State 2 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: pentameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.52 Å
9CF2 Parasitella parasitica Fanzor (PpFz) State 3 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: heptameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.15 Å
9CF3 Parasitella parasitica Fanzor (PpFz) State 4 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: pentameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.20 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYPH_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–162； UniProt 0–161 Author chain B； PDBConstruct 1–162； UniProt 0–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ist
Deposition date deposition_date	2001-12-25
Structure title title	Crystal structure of yeast cyclophilin A, CPR1
Keywords keywords	BARREL, Cyclosporin, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.78 Å
Radius of gyration Rg (electron density) rg_electron	21.97 Å
Forward intensity I(0) i0	20196500.00
Molecular weight molecular_weight	34519.0 kDa
Excluded volume excluded_volume	43255 Å³
Envelope volume envelope_volume	50029 Å³
Hydration-shell volume shell_volume	19674 Å³
Envelope diameter envelope_diameter	72.6 Å
Shell Rg shell_rg	27.45 Å
Envelope Rg envelope_rg	21.86 Å
Shape Rg shape_rg	21.96 Å
Total Rg total_rg	22.71 Å
Total atoms total_atoms	2440
Residues n_residues	322
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	72.8 Å
Rg (real space) rg_real	22.83 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	2.0200e+07
I(0) uncertainty (real space) i0_real_error	2.3850e+05
Rg (reciprocal space) rg_reciprocal	22.82 Å
I(0) (reciprocal space) i0_reciprocal	20200000.0000
Solution quality estimate total_estimate	0.8798
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.1 Å
Skewness Skewness skewness	0.349
Kurtosis Kurtosis kurtosis	-0.617
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8164000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.941

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ista_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

Domain ID domain_id	d1istb_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

CATH v4.4 (2 domains)

Domain ID domain_id	1istA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

Domain ID domain_id	1istB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	44.950 Å
Unit-cell length b length_b	53.110 Å
Unit-cell length c length_c	32.018 Å
Unit-cell angle α angle_alpha	84.91 °
Unit-cell angle β angle_beta	95.22 °
Unit-cell angle γ angle_gamma	108.56 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1990
R_work r_work	0.1990
R_free r_free	0.2160

Description description	Cyclophilin A
Molecular weight formula_weight	17411.7 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2566

Crystal structure of yeast cyclophilin A, CPR1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cyclophilin A

State in the Current Structure

Other States of the Same Protein in the Database

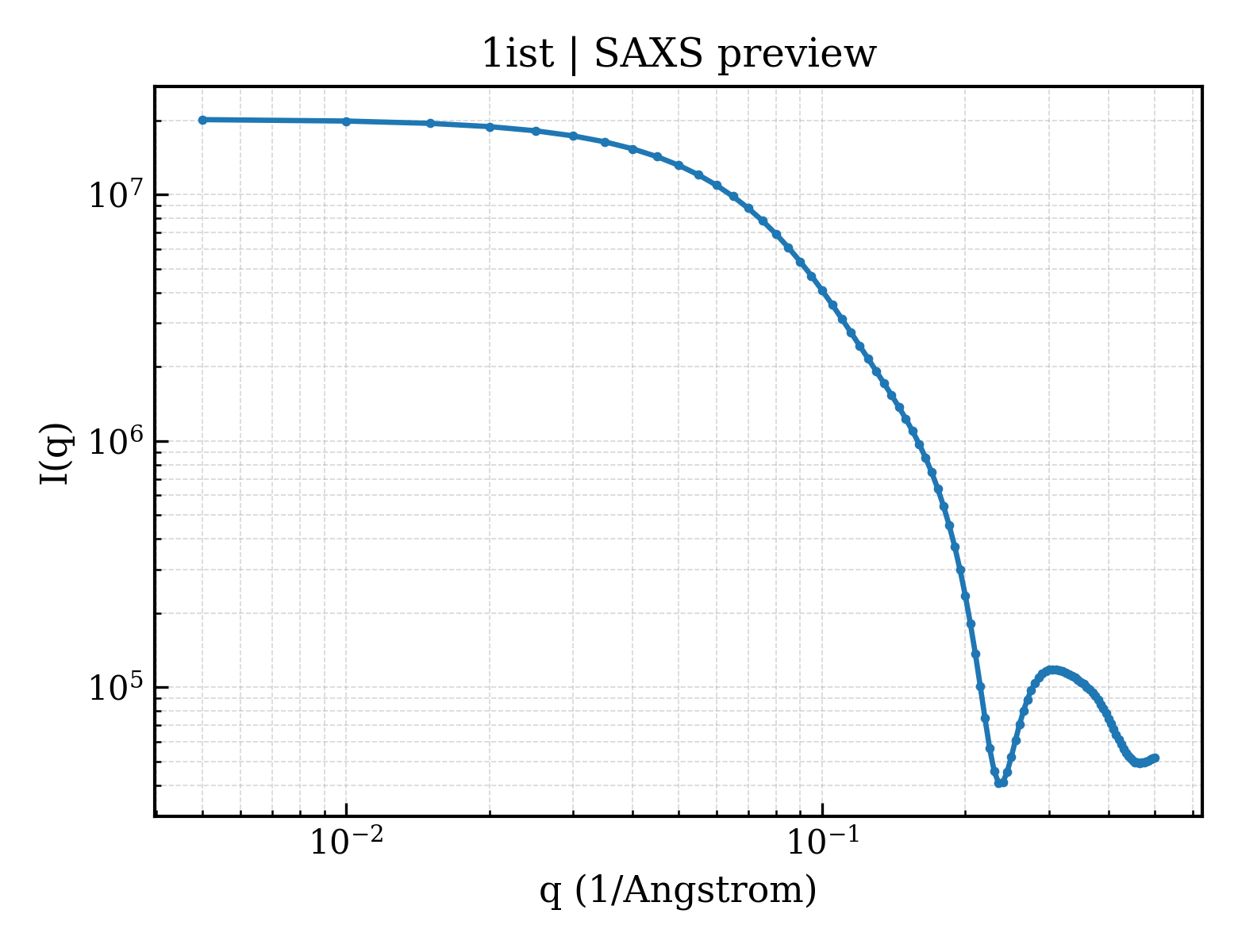

SAXS scattering curve SAXS Profile

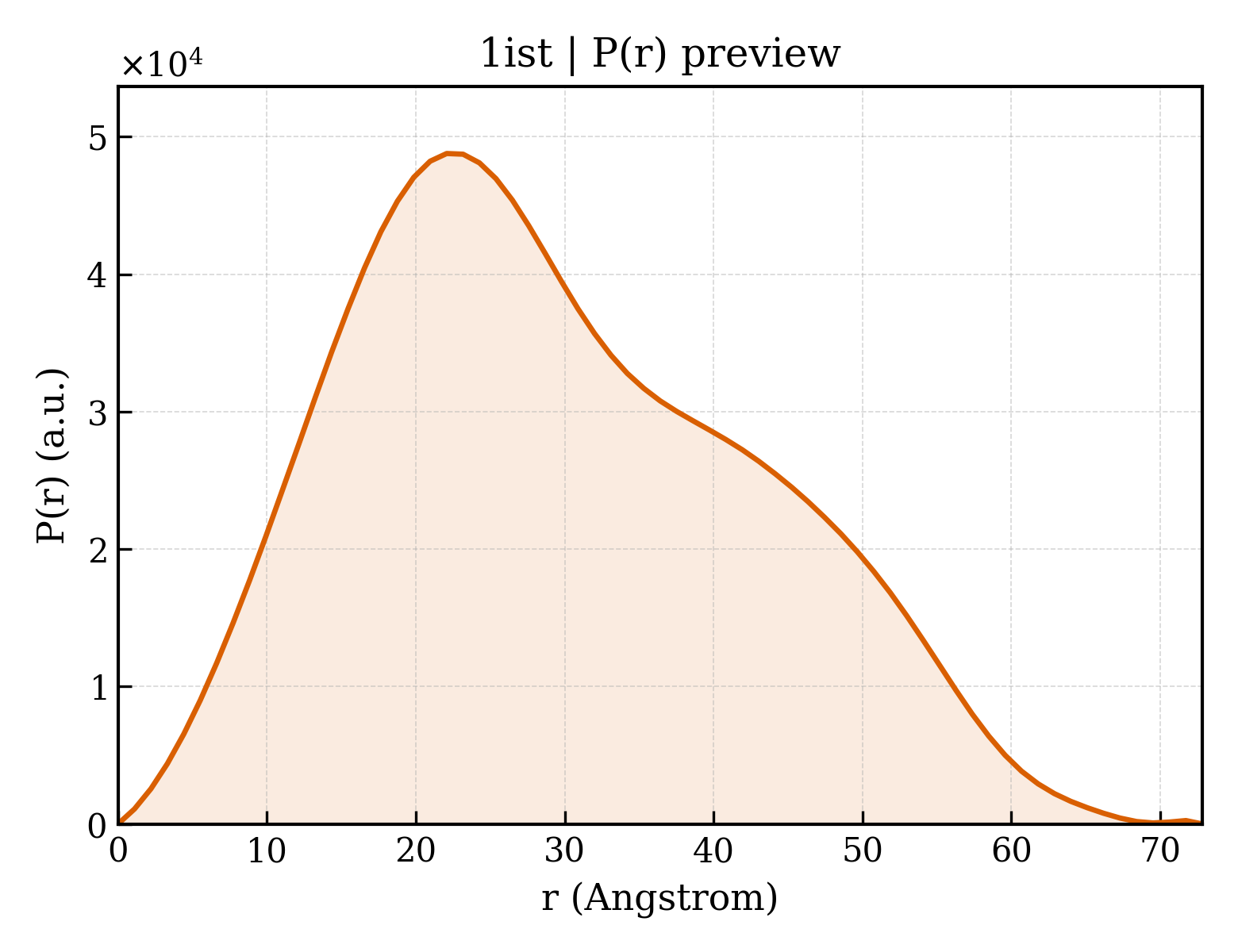

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	126
