SAXSdb — 1vdn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cyclophilin A

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 0–161	Not recorded	(ACE)AAPA(MCM) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；ammonium sulfate, methanol, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.60 Å R-free 0.237

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1VDN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IST Crystal structure of yeast cyclophilin A, CPR1 Deposited 2001-12-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 0–161（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 6000, EDTA, ethanol, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.216
1IST Crystal structure of yeast cyclophilin A, CPR1 Deposited 2001-12-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 0–161（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 6000, EDTA, ethanol, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.216
9CF0 Parasitella parasitica Fanzor (PpFz) State 1 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: pentameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.47 Å
9CF1 Parasitella parasitica Fanzor (PpFz) State 2 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: pentameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.52 Å
9CF2 Parasitella parasitica Fanzor (PpFz) State 3 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: heptameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.15 Å
9CF3 Parasitella parasitica Fanzor (PpFz) State 4 Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: pentameric	Chain C 1–162（162 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.20 Å

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYPH_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–162； UniProt 0–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vdn
Deposition date deposition_date	2004-03-24
Structure title title	Crystal Structure Of Yeast Cyclophilin A Complexed With ACE-Ala-Ala-Pro-Ala-7-Amino-4-Methylcoumarin
Keywords keywords	BETA BARREL, ISOMERASE-ISOMERASE INHIBITOR COMPLEX, ROTAMASE; ISOMERASE/ISOMERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.34 Å
Radius of gyration Rg (electron density) rg_electron	14.12 Å
Forward intensity I(0) i0	5919750.00
Molecular weight molecular_weight	17760.0 kDa
Excluded volume excluded_volume	22255 Å³
Envelope volume envelope_volume	23652 Å³
Hydration-shell volume shell_volume	13852 Å³
Envelope diameter envelope_diameter	47.0 Å
Shell Rg shell_rg	20.40 Å
Envelope Rg envelope_rg	14.35 Å
Shape Rg shape_rg	14.10 Å
Total Rg total_rg	15.37 Å
Total atoms total_atoms	1256
Residues n_residues	165
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.6 Å
Rg (real space) rg_real	15.19 Å
Rg uncertainty (real space) rg_real_error	0.22 Å
I(0) (real space) i0_real	5.9200e+06
I(0) uncertainty (real space) i0_real_error	6.0860e+04
Rg (reciprocal space) rg_reciprocal	15.20 Å
I(0) (reciprocal space) i0_reciprocal	5920000.0000
Solution quality estimate total_estimate	0.8875
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.1 Å
Skewness Skewness skewness	0.035
Kurtosis Kurtosis kurtosis	-0.420
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1971000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.858; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.979

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Cyclophilin A
Molecular weight formula_weight	17411.7 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1444

MSQVYFDVEADGQPIGRVVFKLYNDIVPKTAENFRALCTGEKGFGYAGSPFHRVIPDFMLQGGDFTAGNGTGGKSIYGGKFPDENFKKHHDRPGLLSMANAGPNTNGSQFFITTVPCPWLDGKHVVFGEVVDGYDIVKKVESLGSPSGATKARIVVAKSGEL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	(ACE)AAPA(MCM)
Molecular weight formula_weight	511.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XAAPAX

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	188

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1vdna_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

CATH v4.4 (1 domains)

Domain ID domain_id	1vdnA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	31.737 Å
Unit-cell length b length_b	40.009 Å
Unit-cell length c length_c	112.736 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1990
R_free r_free	0.2370

fit	/app/data/saxs_computation/vd/1vdn/1vdn.fit
pddf	/app/data/pr_computation/vd/1vdn/1vdn.pr.out
profile	/app/data/saxs_computation/vd/1vdn/1vdn.dat

Crystal Structure Of Yeast Cyclophilin A Complexed With ACE-Ala-Ala-Pro-Ala-7-Amino-4-Methylcoumarin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cyclophilin A

State in the Current Structure

Other States of the Same Protein in the Database

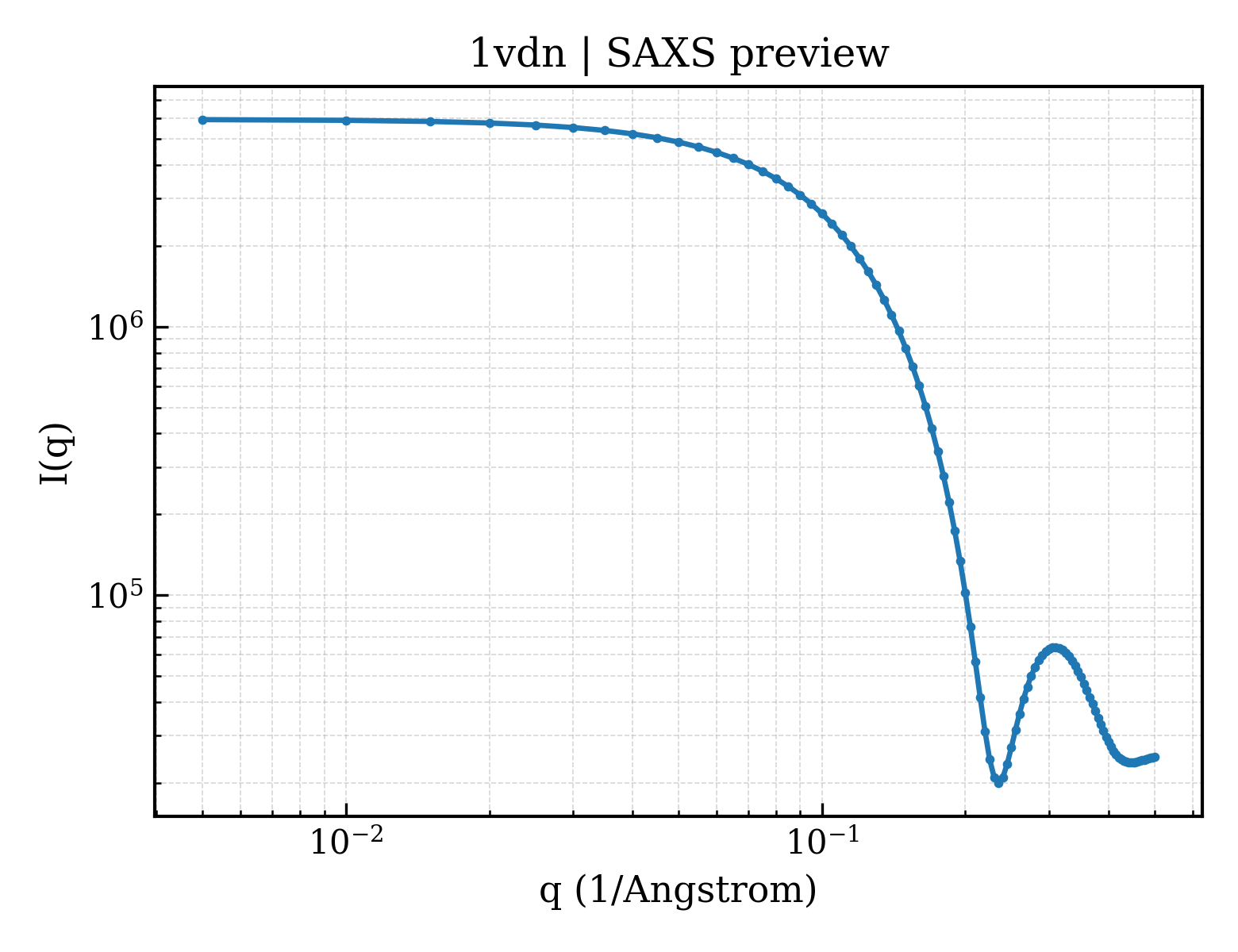

SAXS scattering curve SAXS Profile

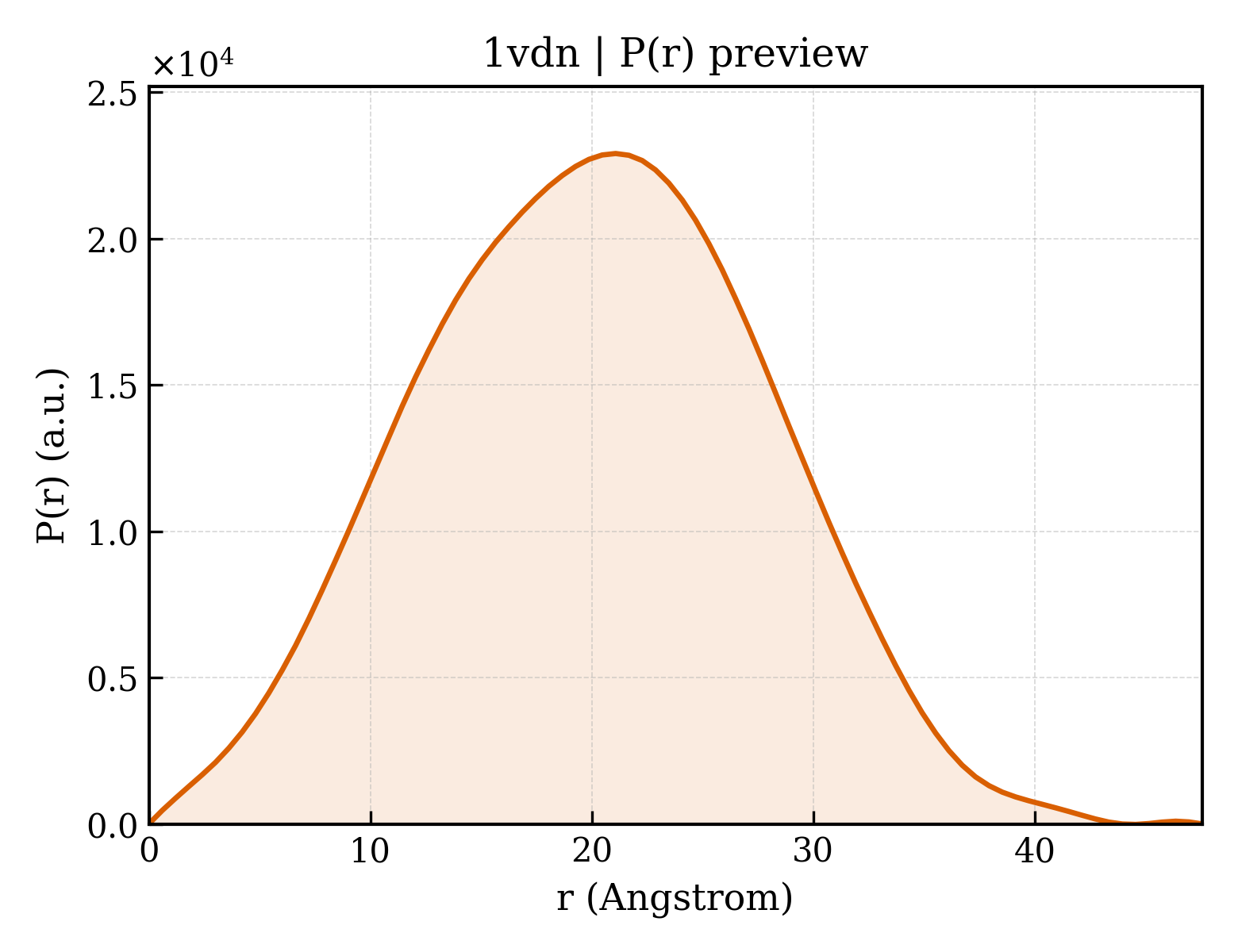

P(r) Distance Distribution P(r) Distribution
