SAXSdb — 1isx

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1isx
沉积日期 deposition_date	2001-12-27
结构标题 title	Crystal structure of xylanase from Streptomyces olivaceoviridis E-86 complexed with xylotriose
关键词 keywords	ALPHA-BETA BARREL, PROTEIN-SUGAR COMPLEX, CARBOHYDRATE BINDING DOMAIN, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.67 Å
回转半径 Rg (电子) rg_electron	31.11 Å
零角强度 I(0) i0	165210000.00
分子量 molecular_weight	95892.0 kDa
排除体积 excluded_volume	116980 Å³
包络体积 envelope_volume	140580 Å³
水化壳体积 shell_volume	37514 Å³
包络直径 envelope_diameter	104.0 Å
壳层 Rg shell_rg	38.20 Å
包络 Rg envelope_rg	30.81 Å
形状 Rg shape_rg	31.10 Å
总 Rg total_rg	31.69 Å
总原子数 total_atoms	6737
残基数 n_residues	872
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	102.9 Å
Rg (实空间) rg_real	31.63 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	1.6520e+08
I(0) 误差 (实空间) i0_real_error	2.4330e+06
Rg (倒空间) rg_reciprocal	31.65 Å
I(0) (倒空间) i0_reciprocal	165200000.0000
解质量估计 total_estimate	0.7059
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	37.0 Å
偏度 Skewness skewness	0.259
峰度 Kurtosis kurtosis	-0.525
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	60660000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 0.169; Positv: 1.000; Valcen: 0.995; Smooth: 0.915

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	endo-1,4-beta-D-xylanase
分子量 formula_weight	46791.2 kDa
EC 编号 ec_number	3.2.1.8
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7562

AESTLGAAAAQSGRYFGTAIASGKLGDSAYTTIASREFNMVTAENEMKIDATEPQRGQFNFSAGDRVYNWAVQNGKQVRGHTLAWHSQQPGWMQSLSGSTLRQAMIDHINGVMGHYKGKIAQWDVVNEAFSDDGSGGRRDSNLQRTGNDWIEVAFRTARAADPAAKLCYNDYNIENWTWAKTQGVYNMVRDFKQRGVPIDCVGFQSHFNSGSPYNSNFRTTLQNFAALGVDVAITELDIQGASSSTYAAVTNDCLAVSRCLGITVWGVRDTDSWRSGDTPLLFNGDGSKKAAYTAVLNALNGGSSTPPPSGGGQIKGVGSGRCLDVPNASTTDGTQVQLYDCHSATNQQWTYTDAGELRVYGDKCLDAAGTGNGTKVQIYSCWGGDNQKWRLNSDGSIVGVQSGLCLDAVGGGTANGTLIQLYSCSNGSNQRWTRT

来源 Source

来源生物 organism	Streptomyces olivaceoviridis
NCBI 分类编号 ncbi_taxonomy_id	1921
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose
分子量 formula_weight	414.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 3 branched

描述 description	beta-D-xylopyranose-(1-4)-beta-D-xylopyranose
分子量 formula_weight	282.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	beta-D-xylopyranose
分子量 formula_weight	150.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	806

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1isxa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.42 — beta-Trefoil
超家族 Superfamily superfamily	b.42.2 — Ricin B-like lectins
家族 Family family	b.42.2.1 — Ricin B-like

结构域编号 domain_id	d1isxa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.3 — beta-glycanases

结构域编号 domain_id	d1isxb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.42 — beta-Trefoil
超家族 Superfamily superfamily	b.42.2 — Ricin B-like lectins
家族 Family family	b.42.2.1 — Ricin B-like

结构域编号 domain_id	d1isxb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.3 — beta-glycanases

CATH v4.4 (4 domains)

结构域编号 domain_id	1isxA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	80 — Trefoil
拓扑 Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1isxA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1isxB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	80 — Trefoil
拓扑 Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1isxB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	75.370 Å
晶胞边长 b length_b	94.460 Å
晶胞边长 c length_c	138.270 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	29.820 Å
R 因子 r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2400

fit	/app/data/saxs_computation/is/1isx/1isx.fit
pddf	/app/data/pr_computation/is/1isx/1isx.pr.out
profile	/app/data/saxs_computation/is/1isx/1isx.dat

Crystal structure of xylanase from Streptomyces olivaceoviridis E-86 complexed with xylotriose

SAXS 散射曲线 SAXS Profile

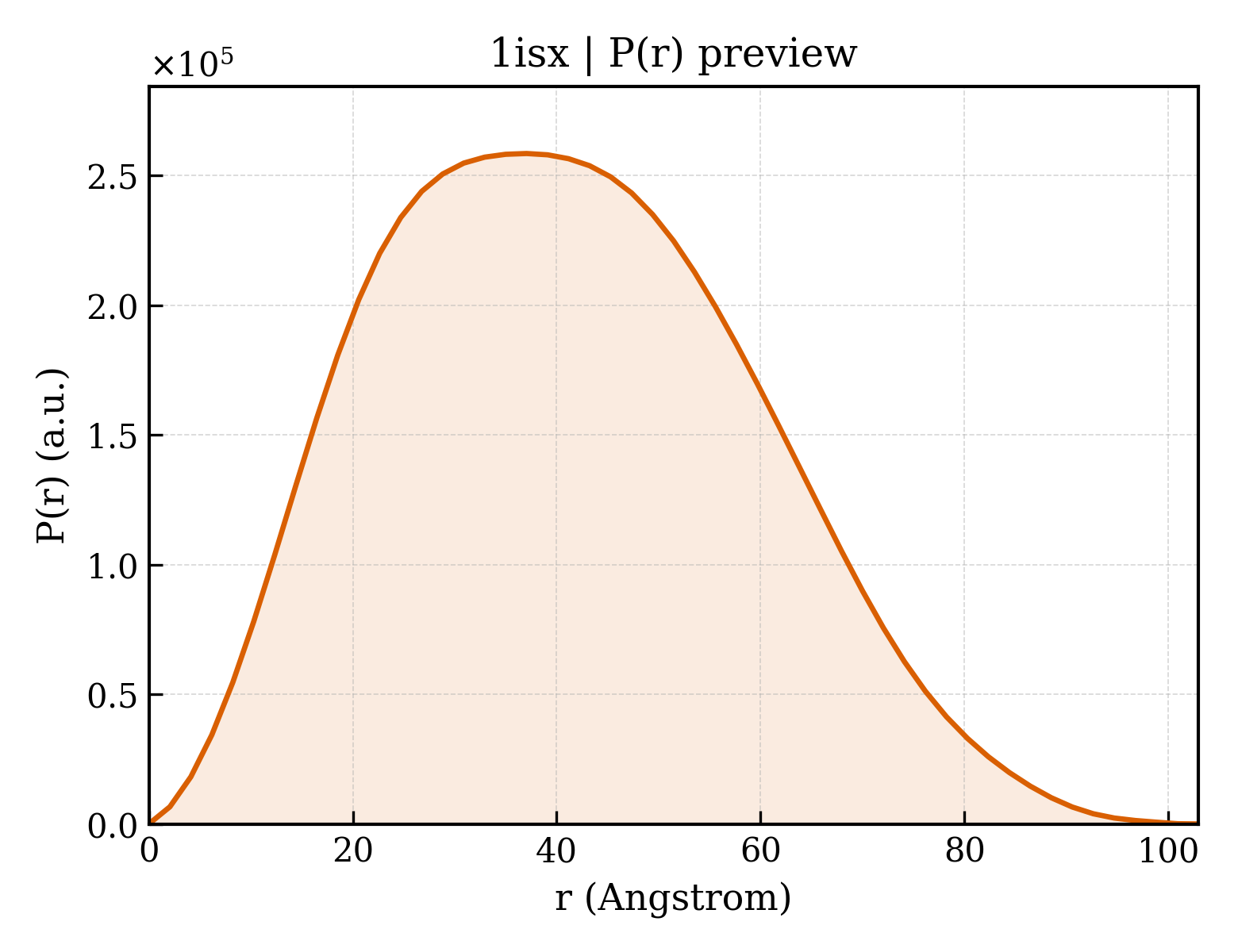

P(r) 距离分布 P(r) Distribution
