1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1it9
沉积日期 deposition_date	2002-01-11
结构标题 title	CRYSTAL STRUCTURE OF AN ANTIGEN-BINDING FRAGMENT FROM A HUMANIZED VERSION OF THE ANTI-HUMAN FAS ANTIBODY HFE7A
关键词 keywords	IMMUNOGLOBULIN, FAB, ANTI_FAS, AGONISTIC_ANTIBODY, APOPTOSIS, ANTIBODY_HUMANIZATION, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.67 Å
回转半径 Rg (电子) rg_electron	24.73 Å
零角强度 I(0) i0	38269600.00
分子量 molecular_weight	47051.0 kDa
排除体积 excluded_volume	58474 Å³
包络体积 envelope_volume	73381 Å³
水化壳体积 shell_volume	25016 Å³
包络直径 envelope_diameter	82.5 Å
壳层 Rg shell_rg	31.67 Å
包络 Rg envelope_rg	24.24 Å
形状 Rg shape_rg	24.72 Å
总 Rg total_rg	25.54 Å
总原子数 total_atoms	3313
残基数 n_residues	433
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.5 Å
Rg (实空间) rg_real	25.63 Å
Rg 误差 (实空间) rg_real_error	0.42 Å
I(0) (实空间) i0_real	3.8270e+07
I(0) 误差 (实空间) i0_real_error	4.5740e+05
Rg (倒空间) rg_reciprocal	25.65 Å
I(0) (倒空间) i0_reciprocal	38270000.0000
解质量估计 total_estimate	0.9137
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.9 Å
偏度 Skewness skewness	0.232
峰度 Kurtosis kurtosis	-0.600
角度范围 angular_range	— – 0.3100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8044000.0000
实空间数据点数 n_real_points	63
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.977; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.948

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	HUMANIZED ANTIBODY HFE7A, LIGHT CHAIN
分子量 formula_weight	23501.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	3319

EIVLTQSPGTLSLSPGERATLSCKASQSVDYDGDSYMNWYQQKPGQAPRLLIYAASNLESGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQSNEDPRTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFN

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Chlorocebus aethiops

Entity 2 polymer

描述 description	HUMANIZED ANTIBODY HFE7A, HEAVY CHAIN
分子量 formula_weight	23593.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

QVQLVQSGAEVKKPGASVKVSCKASGYTFTSYWMQWVKQAPGQGLEWMGEIDPSDSYTNYNQKFKGKATLTVDTSTSTAYMELSSLRSEDTAVYYCARNRDYSNNWYFDVWGEGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKV

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Chlorocebus aethiops

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1it9h1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1it9h2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1it9l1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1it9l2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	1it9H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1it9H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1it9L01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1it9L02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	54.365 Å
晶胞边长 b length_b	82.746 Å
晶胞边长 c length_c	104.934 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2020
R_work r_work	0.2020
R_free r_free	0.2800

fit	/app/data/saxs_computation/it/1it9/1it9.fit
pddf	/app/data/pr_computation/it/1it9/1it9.pr.out
profile	/app/data/saxs_computation/it/1it9/1it9.dat

CRYSTAL STRUCTURE OF AN ANTIGEN-BINDING FRAGMENT FROM A HUMANIZED VERSION OF THE ANTI-HUMAN FAS ANTIBODY HFE7A

SAXS 散射曲线 SAXS Profile

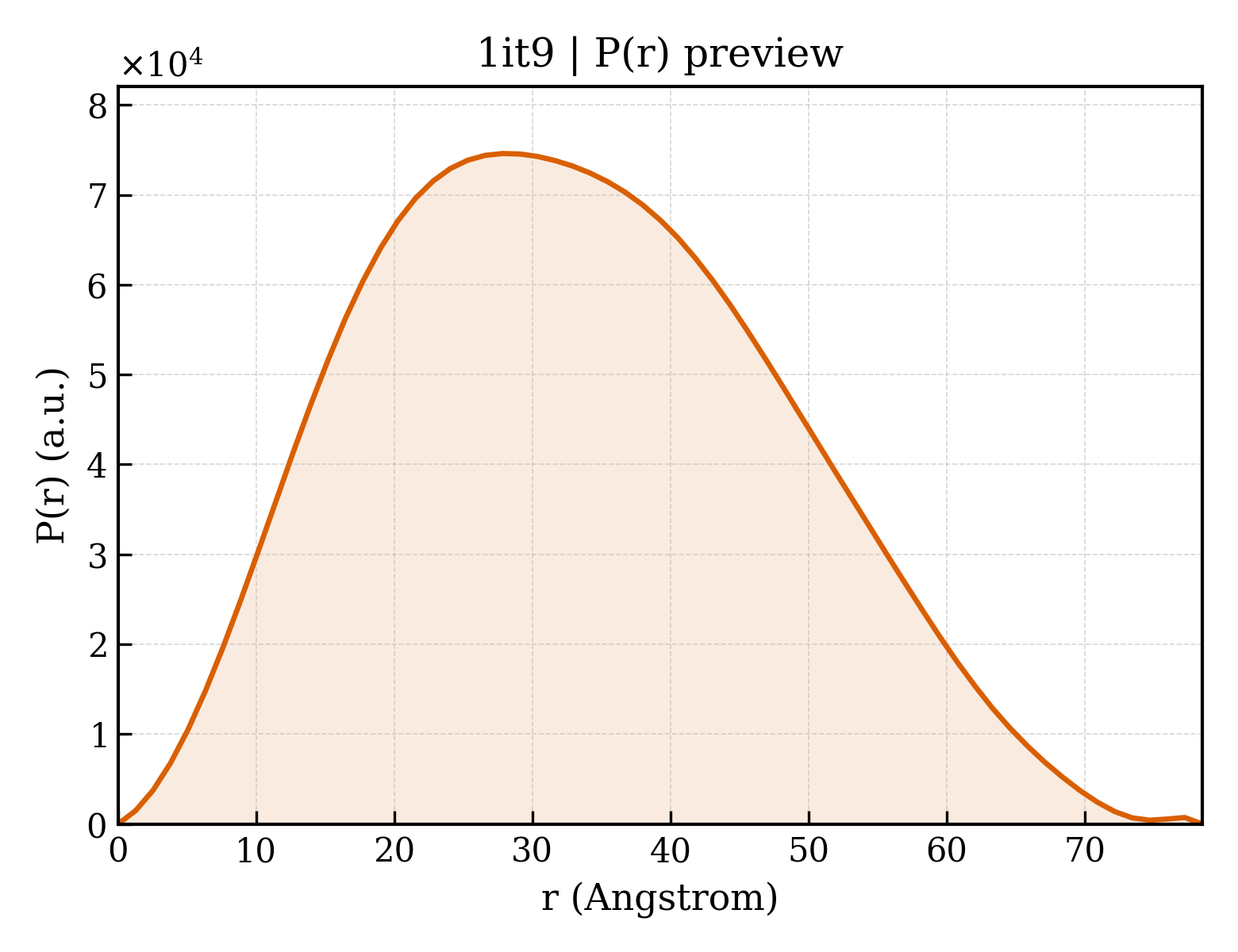

P(r) 距离分布 P(r) Distribution
