SAXSdb — 1itv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MMP9

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MMP9_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–195； UniProt 513–707 Author chain B； PDBConstruct 1–195； UniProt 513–707

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1itv
Deposition date deposition_date	2002-02-11
Structure title title	Dimeric form of the haemopexin domain of MMP9
Keywords keywords	MMP9, adaptive molecular recognition, beta propeller, dimer, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1itv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1itv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

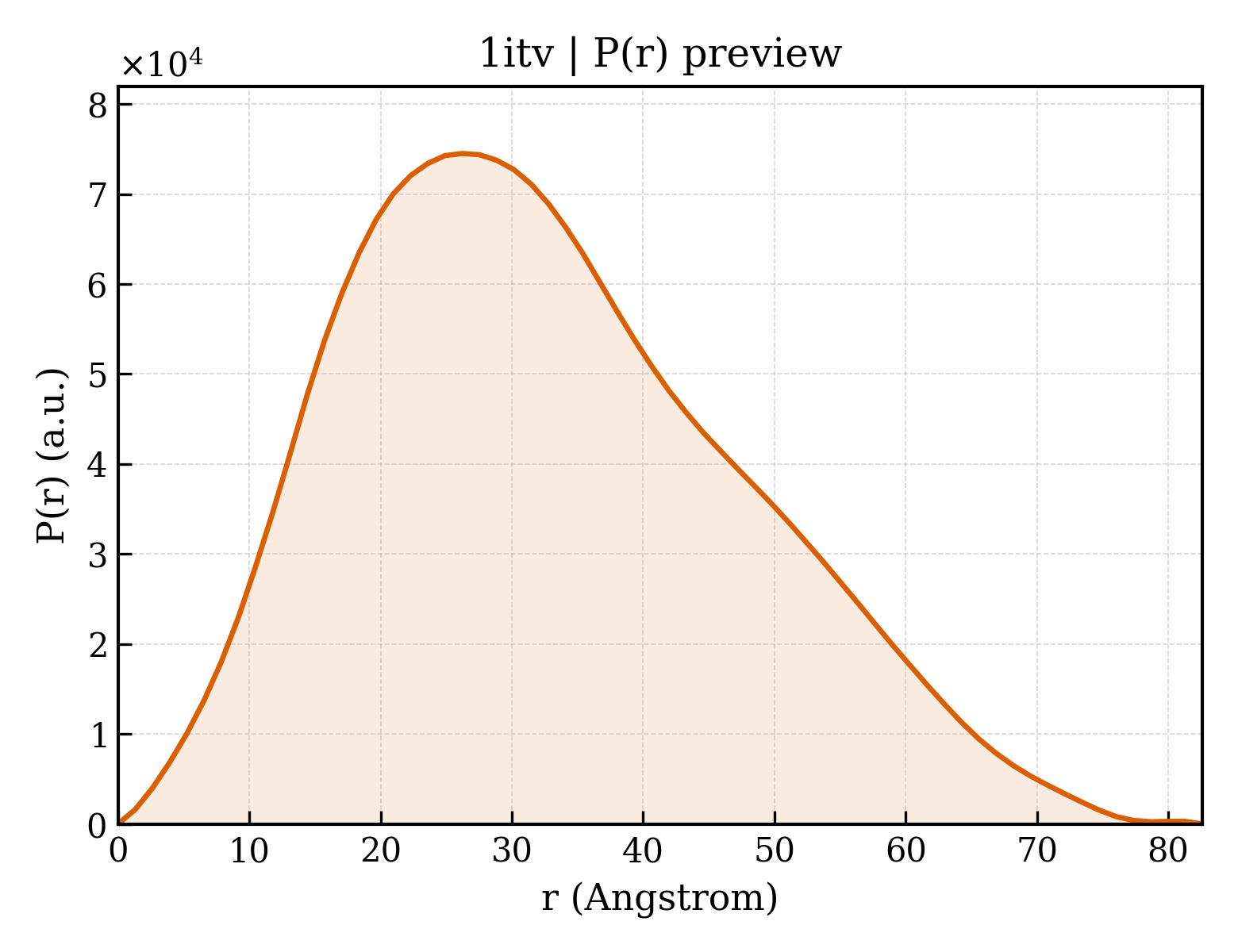

1itv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.23 Å
Rg (electron density)	24.70 Å
Total Rg	25.60 Å
Atom count	3192
Residues	390
Excluded volume	56464 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1itv__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MMP9
Molecular weight formula_weight	22450.5 kDa
EC 编号 ec_number	3.4.24.35
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3374

DDACNVNIFDAIAEIGNQLYLFKDGKYWRFSEGRGSRPQGPFLIADKWPALPRKLDSVFEEPLSKKLFFFSGRQVWVYTGASVLGPRRLDKLGLGADVAQVTGALRSGRGKMLLFSGRRLWRFDVKAQMVDPRSASEVDRMFPGVPLDTHDVFQFREKAYFCQDRFYWRVSSRSELNQVDQVGYVTYDILQCPED

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	182

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1itva_
Class class	b — All beta proteins
Fold Fold fold	b.66 — 4-bladed beta-propeller
Superfamily Superfamily superfamily	b.66.1 — Hemopexin-like domain
Family Family family	b.66.1.1 — Hemopexin-like domain

Domain ID domain_id	d1itvb_
Class class	b — All beta proteins
Fold Fold fold	b.66 — 4-bladed beta-propeller
Superfamily Superfamily superfamily	b.66.1 — Hemopexin-like domain
Family Family family	b.66.1.1 — Hemopexin-like domain

CATH v4.4 (2 domains)

Domain ID domain_id	1itvA00
Class class	2 — Mainly Beta
Architecture architecture	110 — 4 Propeller
Topology topology	10 — Hemopexin
Homologous superfamily homologous superfamily	10 — Hemopexin-like domain

Domain ID domain_id	1itvB00
Class class	2 — Mainly Beta
Architecture architecture	110 — 4 Propeller
Topology topology	10 — Hemopexin
Homologous superfamily homologous superfamily	10 — Hemopexin-like domain

▶

Unit-cell length a length_a	127.720 Å
Unit-cell length b length_b	127.720 Å
Unit-cell length c length_c	31.380 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43
Space-group number int_tables_number	78
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2320
R_work r_work	0.2290
R_free r_free	0.2750

Dimeric form of the haemopexin domain of MMP9
