1iu3
CRYSTAL STRUCTURE OF THE E.COLI SEQA PROTEIN COMPLEXED WITH HEMIMETHYLATED DNA
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1iu3 |
| 沉积日期 deposition_date | 2002-02-26 |
| 结构标题 title | CRYSTAL STRUCTURE OF THE E.COLI SEQA PROTEIN COMPLEXED WITH HEMIMETHYLATED DNA |
| 关键词 keywords | ;Protein-DNA complex, Recognition of hemimethylated DNA, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, REPLICATION INHIBITOR-DNA COMPLEX ;; REPLICATION INHIBITOR/DNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 25.39 Å |
| 回转半径 Rg (电子) rg_electron | 25.53 Å |
| 零角强度 I(0) i0 | 34532600.00 |
| 分子量 molecular_weight | 38068.0 kDa |
| 排除体积 excluded_volume | 44280 ų |
| 包络体积 envelope_volume | 57943 ų |
| 水化壳体积 shell_volume | 19316 ų |
| 包络直径 envelope_diameter | 86.2 Å |
| 壳层 Rg shell_rg | 32.10 Å |
| 包络 Rg envelope_rg | 25.15 Å |
| 形状 Rg shape_rg | 25.55 Å |
| 总 Rg total_rg | 26.12 Å |
| 总原子数 total_atoms | 2624 |
| 残基数 n_residues | 270 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

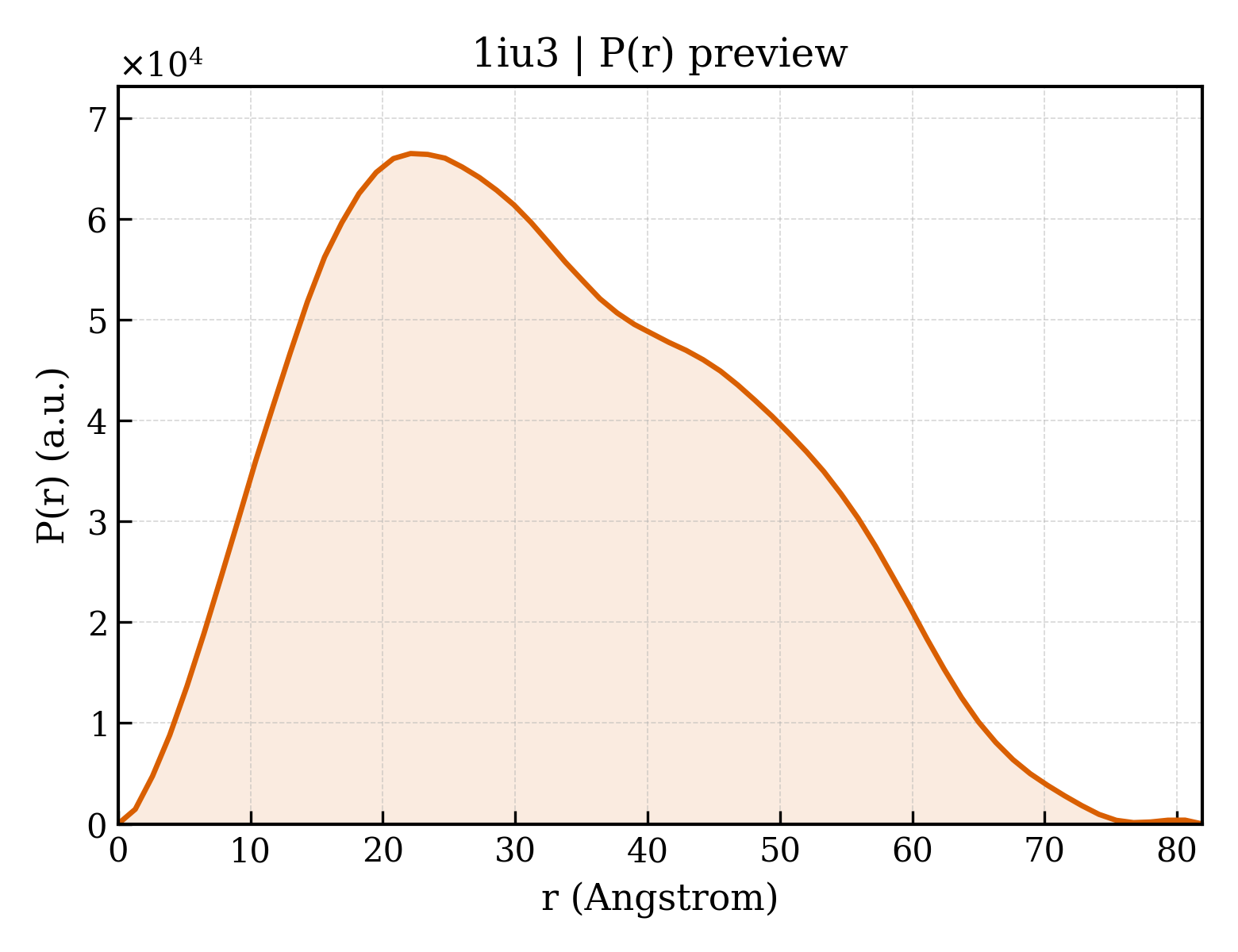

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 81.9 Å |
| Rg (实空间) rg_real | 25.47 Å |
| Rg 误差 (实空间) rg_real_error | 0.80 Å |
| I(0) (实空间) i0_real | 3.4530e+07 |
| I(0) 误差 (实空间) i0_real_error | 5.0270e+05 |
| Rg (倒空间) rg_reciprocal | 25.45 Å |
| I(0) (倒空间) i0_reciprocal | 34530000.0000 |
| 解质量估计 total_estimate | 0.8812 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 22.1 Å |
| 偏度 Skewness skewness | 0.305 |
| 峰度 Kurtosis kurtosis | -0.721 |
| 角度范围 angular_range | — – 0.3150 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2558000.0000 |
| 实空间数据点数 n_real_points | 64 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.896; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.791; Smooth: 0.980 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1iu3c1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.228 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 超家族 Superfamily superfamily | d.228.1 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 家族 Family family | d.228.1.1 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 结构域编号 domain_id | d1iu3c2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1iu3f1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.228 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 超家族 Superfamily superfamily | d.228.1 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 家族 Family family | d.228.1.1 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 结构域编号 domain_id | d1iu3f2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1iu3C00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1380 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 同源超家族 H-superfamily homologous superfamily | 10 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 结构域编号 domain_id | 1iu3F00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1380 — Replication modulator SeqA, C-terminal DNA-binding domain |
| 同源超家族 H-superfamily homologous superfamily | 10 — Replication modulator SeqA, C-terminal DNA-binding domain |
