SAXSdb — 1ivc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INFLUENZA A SUBTYPE N2 NEURAMINIDASE

Influenza A virus (strain A/Tokyo/3/1967 H2N2)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 4 其他Polymer 16	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 8 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-D-mannopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 4 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 CALCIUM ION × 4 4-(ACETYLAMINO)-5-AMINO-3-HYDROXYBENZOIC ACID × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NRAM_IATOK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–388； UniProt 82–469 Author chain B； PDBConstruct 1–388； UniProt 82–469

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ivc
Deposition date deposition_date	1994-12-12
Structure title title	STRUCTURES OF AROMATIC INHIBITORS OF INFLUENZA VIRUS NEURAMINIDASE
Keywords keywords	HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ivc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ivc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

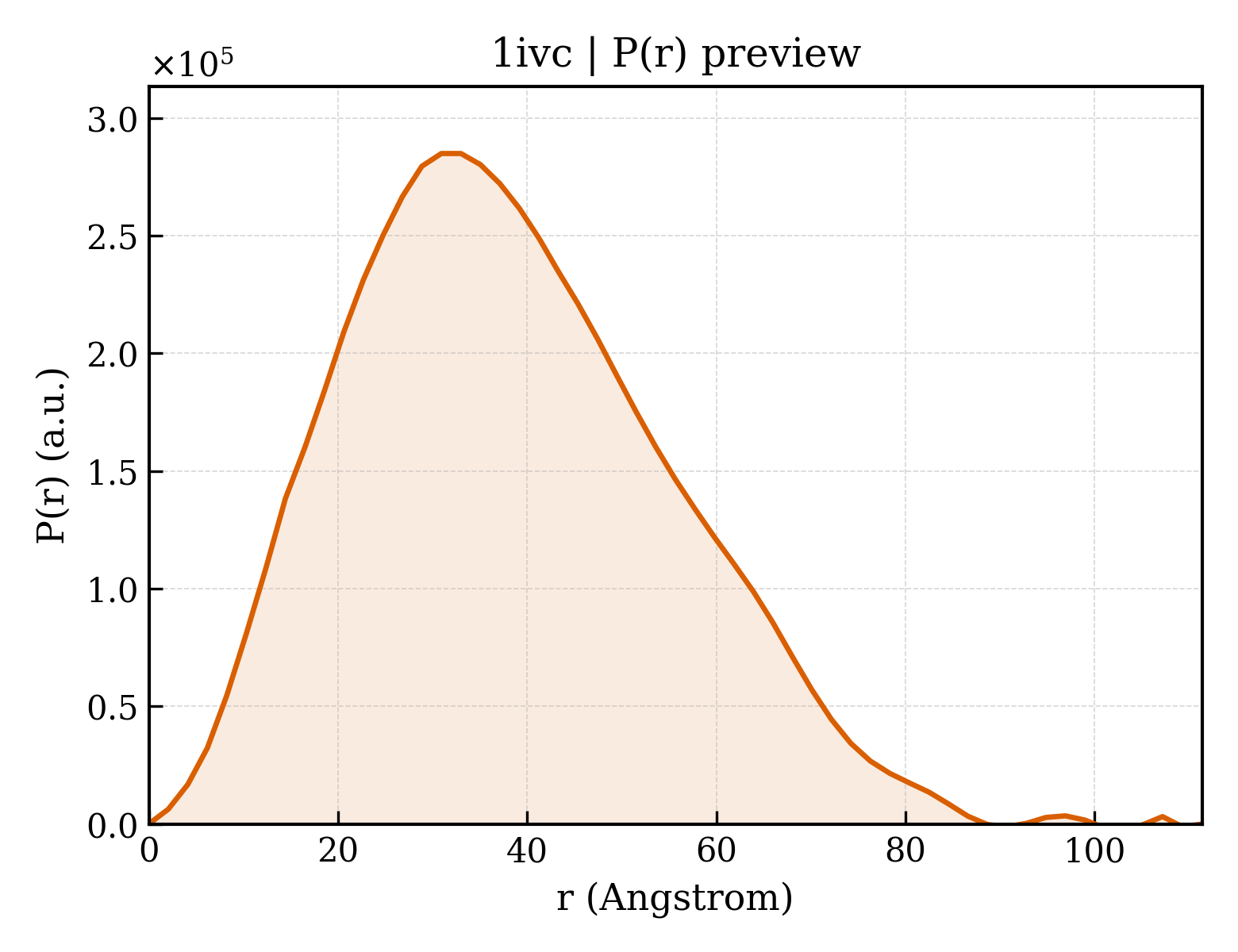

1ivc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.66 Å
Rg (electron density)	34.55 Å
Total Rg	35.16 Å
Atom count	16440
Residues	1552
Excluded volume	224860 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ivc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	INFLUENZA A SUBTYPE N2 NEURAMINIDASE
Molecular weight formula_weight	43141.0 kDa
EC 编号 ec_number	3.2.1.18
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8220

VEYRNWSKPQCQITGFAPFSKDNSIRLSAGGDIWVTREPYVSCDPVKCYQFALGQGTTLDNKHSNDTVHDRIPHRTLLMNELGVPFHLGTRQVCIAWSSSSCHDGKAWLHVCITGDDKNATASFIYDGRLVDSIGSWSQNILRTQESECVCINGTCTVVMTDGSASGRADTRILFIEEGKIVHISPLAGSAQHVEECSCYPRYPGVRCICRDNWKGSNRPVVDINMEDYSIDSSYVCSGLVGDTPRNDDRSSNSNCRDPNNERGTQGVKGWAFDNGNDLWMGRTISKDLRSGYETFKVIGGWSTPNSKSQINRQVIVDSDNRSGYSGIFSVEGKSCINRCFYVELIRGRKQETRVWWTSNSIVVFCGTSGTYGTGSWPDGANINFMPI

Source Source

Source organism organism	Influenza A virus (strain A/Tokyo/3/1967 H2N2)
NCBI taxonomy ID ncbi_taxonomy_id	380960

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 3 Entity 3 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-D-mannopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1073.0 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	4-(ACETYLAMINO)-5-AMINO-3-HYDROXYBENZOIC ACID
Molecular weight formula_weight	210.2 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ivca_
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

Domain ID domain_id	d1ivcb_
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

CATH v4.4 (2 domains)

Domain ID domain_id	1ivcA00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ivcB00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	120.350 Å
Unit-cell length b length_b	139.720 Å
Unit-cell length c length_c	140.230 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	6.500 Å
R factor r_factor	0.2040
R_work r_work	0.2040
R_free r_free	—
