1iyi

Crystal structure of hematopoietic prostaglandin D synthase

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMATOPOIETIC PROSTAGLANDIN D SYNTHASE

Homo sapiens

UniProt O60760

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 2 GLUTATHIONE × 2 CALCIUM ION × 1 water × 2 Consistent with protein count
2 Protein homooligomer Homooligomer Protein 2 GLUTATHIONE × 2 CALCIUM ION × 1 water × 2 Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer
1iyh 1iyh 1iyi 1iyi 1v40 1v40 2cvd 2cvd 2vcq 2vcq 2vcw 2vcw

49 assemblies; showing the first 12

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name PTGD2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–198； UniProt 1–198 Author chain B； PDBConstruct 1–198； UniProt 1–198 Author chain C； PDBConstruct 1–198； UniProt 1–198 Author chain D； PDBConstruct 1–198； UniProt 1–198

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1iyi
Deposition date deposition_date2002-08-26
Structure title titleCrystal structure of hematopoietic prostaglandin D synthase
Keywords keywordsHEMATOPOIETIC PROSTAGLANDIN D SYNTHASE, PGDS, GST, SIGMA-CLASS GST, LIGASE, ISOMERASE; ISOMERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1iyi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

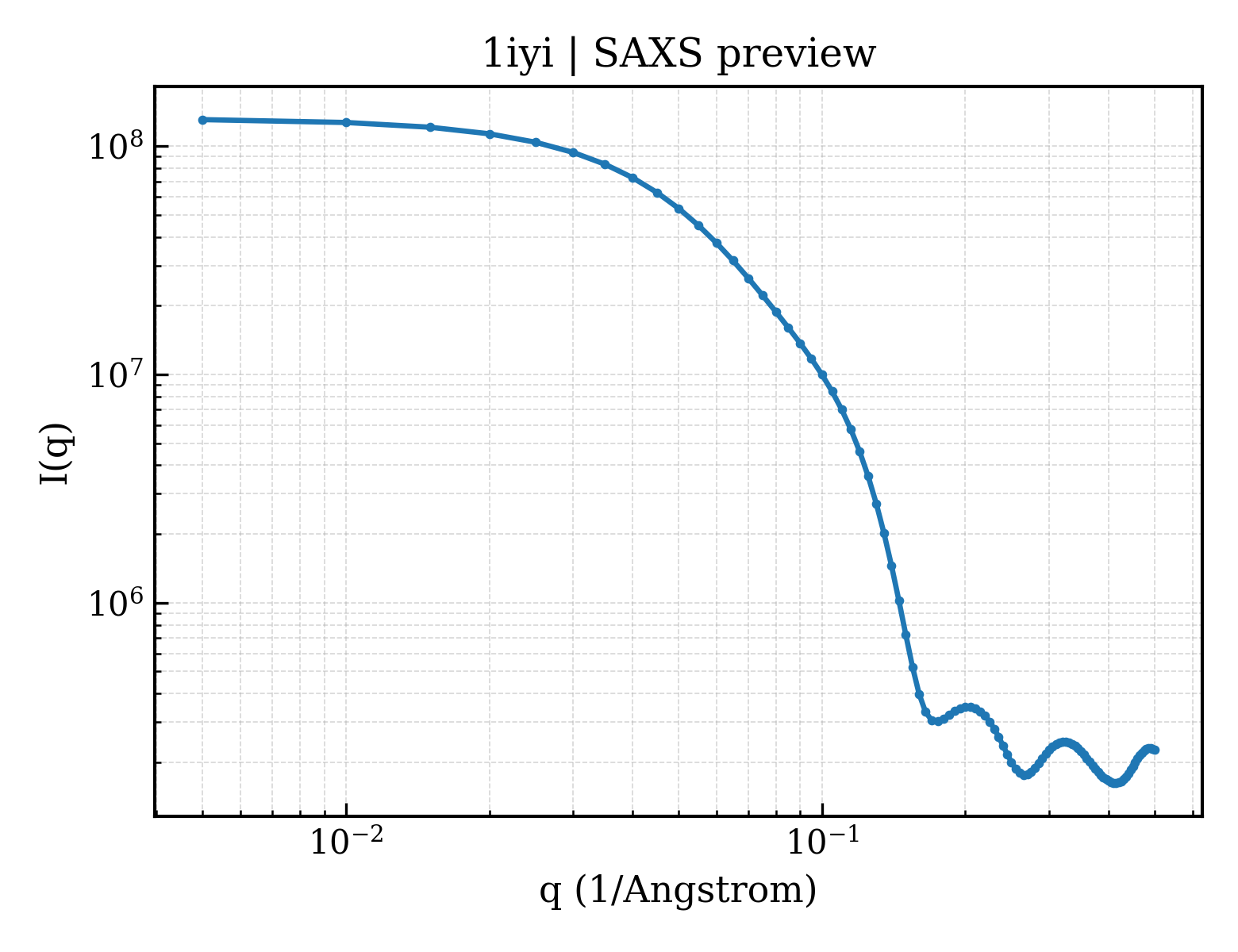

1iyi__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1iyi__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）22.01 Å
Rg (electron density)20.76 Å
Total Rg21.64 Å
Atom count3317
Residues396
Excluded volume59442 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1iyi__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 1iyi__assembly_2__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_idd1iyia1
Class classa — All alpha proteins
Fold Fold folda.45 — GST C-terminal domain-like
Superfamily Superfamily superfamilya.45.1 — GST C-terminal domain-like
Family Family familya.45.1.1 — Glutathione S-transferase (GST), C-terminal domain
Domain ID domain_idd1iyia2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.47 — Thioredoxin fold
Superfamily Superfamily superfamilyc.47.1 — Thioredoxin-like
Family Family familyc.47.1.5 — Glutathione S-transferase (GST), N-terminal domain
Domain ID domain_idd1iyib1
Class classa — All alpha proteins
Fold Fold folda.45 — GST C-terminal domain-like
Superfamily Superfamily superfamilya.45.1 — GST C-terminal domain-like
Family Family familya.45.1.1 — Glutathione S-transferase (GST), C-terminal domain
Domain ID domain_idd1iyib2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.47 — Thioredoxin fold
Superfamily Superfamily superfamilyc.47.1 — Thioredoxin-like
Family Family familyc.47.1.5 — Glutathione S-transferase (GST), N-terminal domain
Domain ID domain_idd1iyic1
Class classa — All alpha proteins
Fold Fold folda.45 — GST C-terminal domain-like
Superfamily Superfamily superfamilya.45.1 — GST C-terminal domain-like
Family Family familya.45.1.1 — Glutathione S-transferase (GST), C-terminal domain
Domain ID domain_idd1iyic2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.47 — Thioredoxin fold
Superfamily Superfamily superfamilyc.47.1 — Thioredoxin-like
Family Family familyc.47.1.5 — Glutathione S-transferase (GST), N-terminal domain
Domain ID domain_idd1iyid1
Class classa — All alpha proteins
Fold Fold folda.45 — GST C-terminal domain-like
Superfamily Superfamily superfamilya.45.1 — GST C-terminal domain-like
Family Family familya.45.1.1 — Glutathione S-transferase (GST), C-terminal domain
Domain ID domain_idd1iyid2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.47 — Thioredoxin fold
Superfamily Superfamily superfamilyc.47.1 — Thioredoxin-like
Family Family familyc.47.1.5 — Glutathione S-transferase (GST), N-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id1iyiA01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id1iyiA02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily10 —
Domain ID domain_id1iyiB01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id1iyiB02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily10 —
Domain ID domain_id1iyiC01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id1iyiC02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily10 —
Domain ID domain_id1iyiD01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id1iyiD02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily10 —
▶

7. Citations (1)
