1iyl

Crystal Structure of Candida albicans N-myristoyltransferase with Non-peptidic Inhibitor

Method: X-RAY DIFFRACTION D_max: 166.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

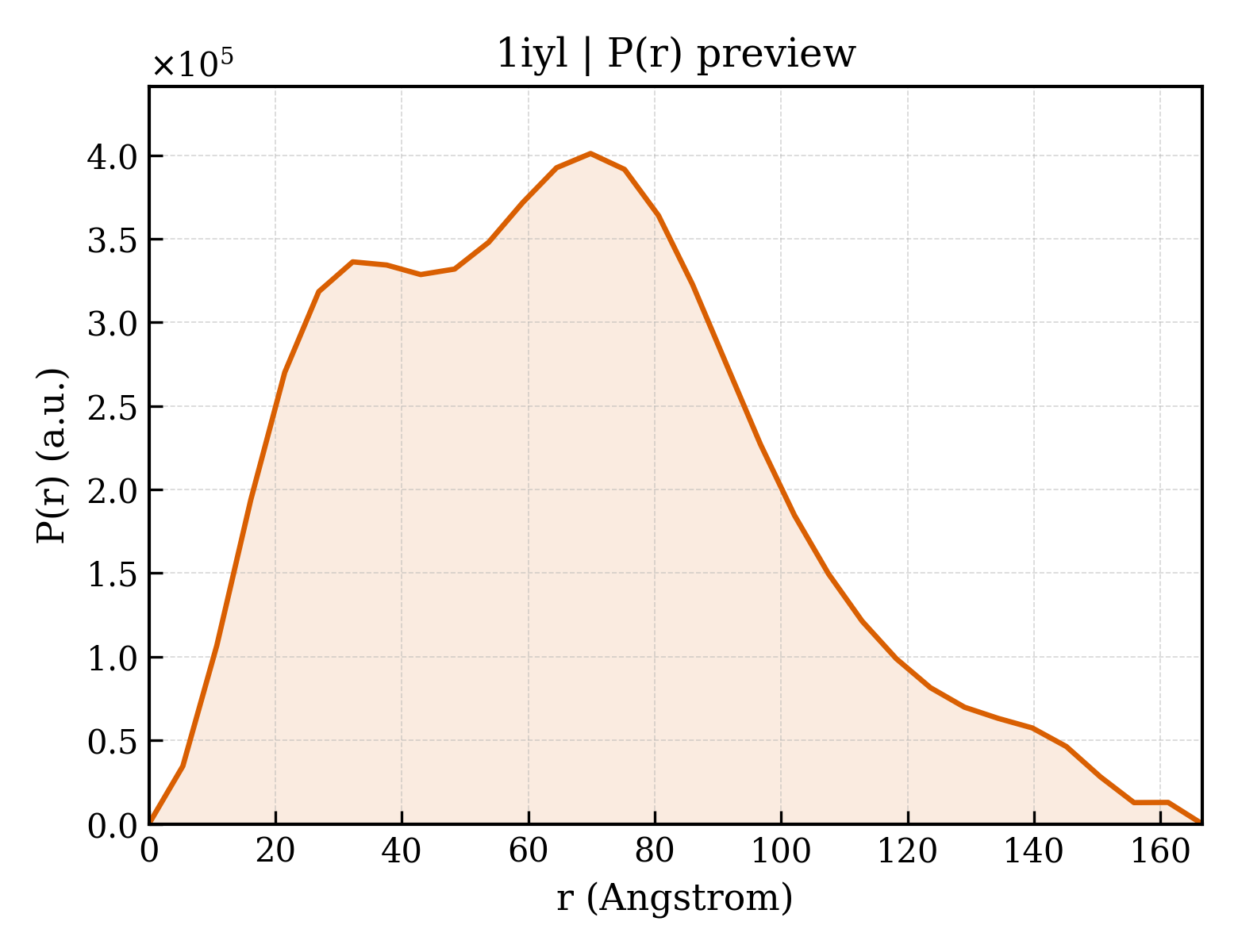

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1iyl
沉积日期 deposition_date	2002-08-29
结构标题 title	Crystal Structure of Candida albicans N-myristoyltransferase with Non-peptidic Inhibitor
关键词 keywords	Transferase; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.34 Å
回转半径 Rg (电子) rg_electron	51.29 Å
零角强度 I(0) i0	423657000.00
分子量 molecular_weight	177930.0 kDa
排除体积 excluded_volume	225600 Å³
包络体积 envelope_volume	321490 Å³
水化壳体积 shell_volume	56964 Å³
包络直径 envelope_diameter	179.3 Å
壳层 Rg shell_rg	49.26 Å
包络 Rg envelope_rg	49.47 Å
形状 Rg shape_rg	51.26 Å
总 Rg total_rg	51.30 Å
总原子数 total_atoms	12597
残基数 n_residues	1525
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	166.6 Å
Rg (实空间) rg_real	51.59 Å
Rg 误差 (实空间) rg_real_error	2.06 Å
I(0) (实空间) i0_real	4.2370e+08
I(0) 误差 (实空间) i0_real_error	9.5300e+06
Rg (倒空间) rg_reciprocal	51.12 Å
I(0) (倒空间) i0_reciprocal	423400000.0000
解质量估计 total_estimate	0.7941
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	69.9 Å
偏度 Skewness skewness	0.419
峰度 Kurtosis kurtosis	-0.307
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	35440000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.799; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.842; Smooth: 0.082

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Myristoyl-CoA:Protein N-Myristoyltransferase
分子量 formula_weight	45421.6 kDa
EC 编号 ec_number	2.3.1.97
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12597

EGPIDKLKTPEDVPNDPLPLISDFEWSTLDIDDNLQLDELYKLLYDNYVEDIDATFRFKYSHEFFQWALKPPGWRKDWHVGVRVKSTGKLVAFIAATPVTFKLNKSNKVIDSVEINFLCIHKKLRNKRLAPVLIKEITRRVNKQNIWQALYTGGSILPTPLTTCRYQHRPINWSKLHDVGFSHLPPNQTKSSMVASYTLPNNPKLKGLRPMTGKDVSTVLSLLYKYQERFDIVQLFTEEEFKHWMLGHDENSDSNVVKSYVVEDENGIITDYFSYYLLPFTVLDNAQHDELGIAYLFYYASDSFEKPNYKKRLNELITDALITSKKFGVDVFNCLTCQDNTYFLKDCKFGSGDGFLNYYLFNYRTFPMDGGIDKKTKEVVEDQTSGIGVVLL

来源 Source

来源生物 organism	Candida albicans
NCBI 分类编号 ncbi_taxonomy_id	5476
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	(1-METHYL-1H-IMIDAZOL-2-YL)-(3-METHYL-4-{3-[(PYRIDIN-3-YLMETHYL)-AMINO]-PROPOXY}-BENZOFURAN-2-YL)-METHANONE
分子量 formula_weight	404.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1iyla1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iyla2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iylb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iylb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iylc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iylc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iyld1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

结构域编号 domain_id	d1iyld2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.2 — N-myristoyl transferase, NMT

CATH v4.4 (8 domains)

结构域编号 domain_id	1iylA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1iylD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	93.277 Å
晶胞边长 b length_b	96.885 Å
晶胞边长 c length_c	269.277 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2880
R_work r_work	0.2840
R_free r_free	0.3660

fit	/app/data/saxs_computation/iy/1iyl/1iyl.fit
pddf	/app/data/pr_computation/iy/1iyl/1iyl.pr.out
profile	/app/data/saxs_computation/iy/1iyl/1iyl.dat
