1j0x

Crystal structure of the rabbit muscle glyceraldehyde-3-phosphate dehydrogenase (GAPDH)

Method: X-RAY DIFFRACTION D_max: 94.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

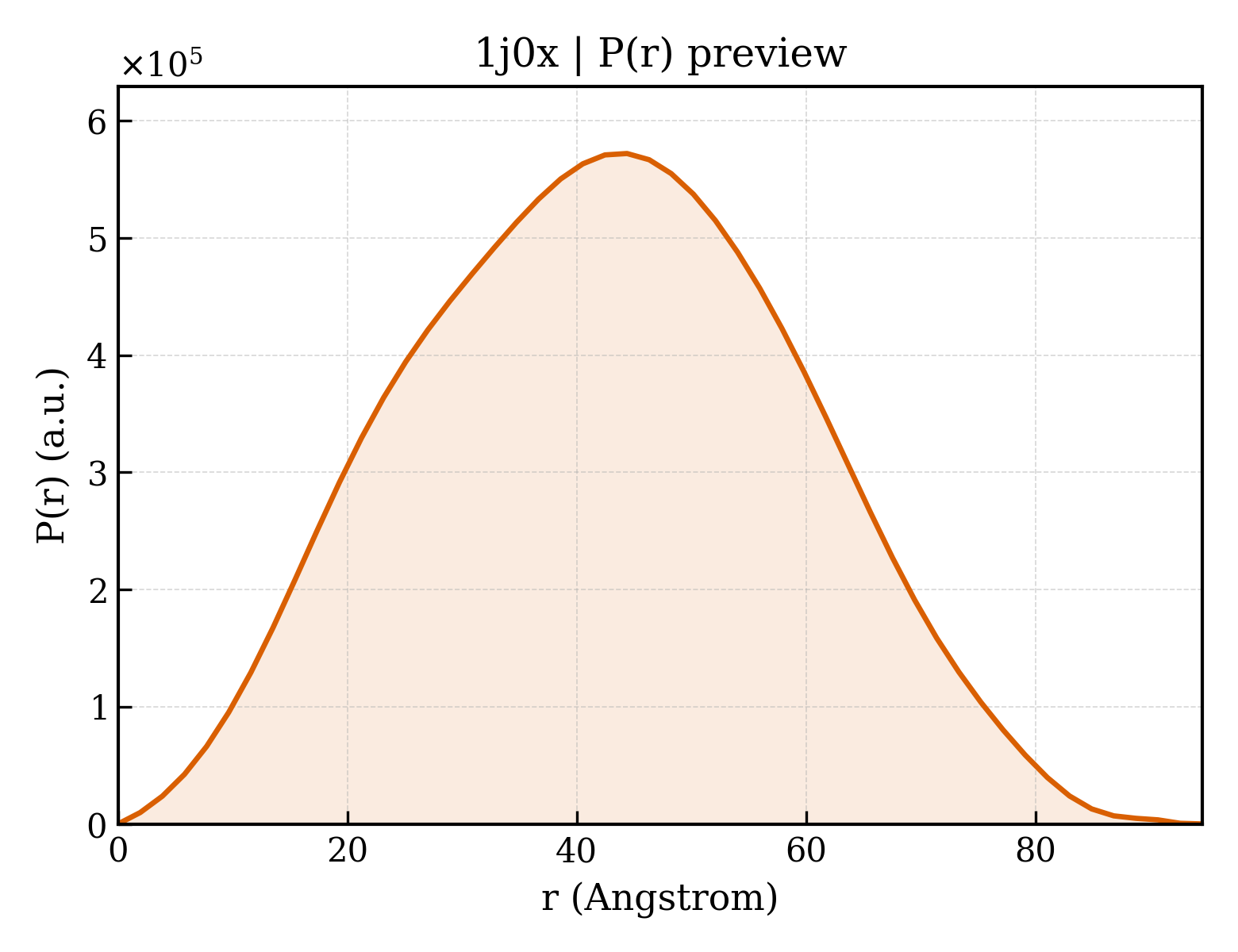

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1j0x
沉积日期 deposition_date	2002-11-25
结构标题 title	Crystal structure of the rabbit muscle glyceraldehyde-3-phosphate dehydrogenase (GAPDH)
关键词 keywords	OXIDOREDUCTASE, dehydrogenase, Rossmann fold, mammalian GAPDH, apoptosis, negative cooperativity; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.58 Å
回转半径 Rg (电子) rg_electron	31.81 Å
零角强度 I(0) i0	324676000.00
分子量 molecular_weight	144170.0 kDa
排除体积 excluded_volume	180280 Å³
包络体积 envelope_volume	216380 Å³
水化壳体积 shell_volume	53821 Å³
包络直径 envelope_diameter	98.4 Å
壳层 Rg shell_rg	40.94 Å
包络 Rg envelope_rg	31.73 Å
形状 Rg shape_rg	31.80 Å
总 Rg total_rg	32.53 Å
总原子数 total_atoms	10132
残基数 n_residues	1324
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	94.6 Å
Rg (实空间) rg_real	32.30 Å
Rg 误差 (实空间) rg_real_error	0.41 Å
I(0) (实空间) i0_real	3.2470e+08
I(0) 误差 (实空间) i0_real_error	4.1870e+06
Rg (倒空间) rg_reciprocal	32.42 Å
I(0) (倒空间) i0_reciprocal	324700000.0000
解质量估计 total_estimate	0.9016
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	44.4 Å
偏度 Skewness skewness	0.049
峰度 Kurtosis kurtosis	-0.569
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	215100000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.840

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	glyceraldehyde-3-phosphate dehydrogenase
分子量 formula_weight	35755.8 kDa
EC 编号 ec_number	1.2.1.12
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P,Q,R
原子数 atom_count	10605

VKVGVNGFGRIGRLVTRAAFNSGKVDVVAINDPFIDLHYMVYMFQYDSTHGKFHGTVKAENGKLVINGKAITIFQERDPANIKWGDAGAEYVVESTGVFTTMEKAGAHLKGGAKRVIISAPSADAPMFVMGVNHEKYDNSLKIVSNASCTTNCLAPLAKVIHDHFGIVEGLMTTVHAITATQKTVDGPSGKLWRDGRGAAQNIIPASTGAAKAVGKVIPELNGKLTGMAFRVPTPNVSVVDLTCRLEKAAKYDDIKKVVKQASEGPLKGILGYTEDQVVSCDFNSDTHSSTFDAGAGIALNDHFVKLISWYDNEFGYSNRVVDLMVHMASKE

Entity 2 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	473

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1j0xo1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1j0xo2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

结构域编号 domain_id	d1j0xp1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1j0xp2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

结构域编号 domain_id	d1j0xq1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1j0xq2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

结构域编号 domain_id	d1j0xr1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1j0xr2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1j0xO01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1j0xO02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1j0xP01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1j0xP02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1j0xQ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1j0xQ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1j0xR01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1j0xR02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	81.700 Å
晶胞边长 b length_b	98.500 Å
晶胞边长 c length_c	183.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	17.930 Å
R 因子 r_factor	—
R_work r_work	0.2030
R_free r_free	0.2390

fit	/app/data/saxs_computation/j0/1j0x/1j0x.fit
pddf	/app/data/pr_computation/j0/1j0x/1j0x.pr.out
profile	/app/data/saxs_computation/j0/1j0x/1j0x.dat
