1j1d

Crystal structure of the 46kDa domain of human cardiac troponin in the Ca2+ saturated form

Method: X-RAY DIFFRACTION D_max: 147.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

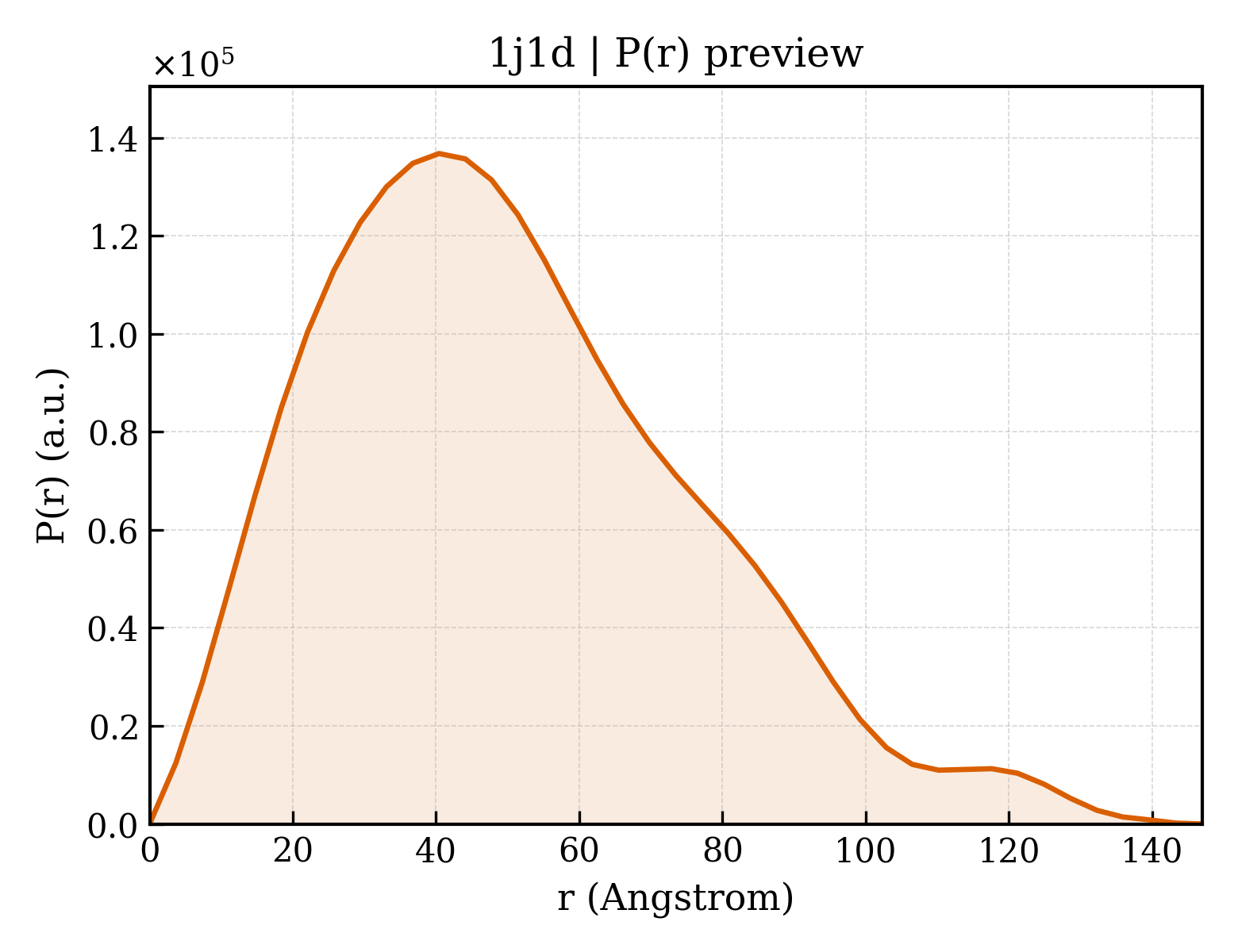

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1j1d
沉积日期 deposition_date	2002-12-03
结构标题 title	Crystal structure of the 46kDa domain of human cardiac troponin in the Ca2+ saturated form
关键词 keywords	Thin filament, muscle regulation, Ca2+ binding protein, EF-hand, coiled-coil, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.44 Å
回转半径 Rg (电子) rg_electron	39.94 Å
零角强度 I(0) i0	107066000.00
分子量 molecular_weight	81089.0 kDa
排除体积 excluded_volume	100970 Å³
包络体积 envelope_volume	154070 Å³
水化壳体积 shell_volume	35563 Å³
包络直径 envelope_diameter	153.2 Å
壳层 Rg shell_rg	40.69 Å
包络 Rg envelope_rg	39.42 Å
形状 Rg shape_rg	39.88 Å
总 Rg total_rg	40.19 Å
总原子数 total_atoms	5675
残基数 n_residues	698
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	147.0 Å
Rg (实空间) rg_real	40.02 Å
Rg 误差 (实空间) rg_real_error	2.08 Å
I(0) (实空间) i0_real	1.0710e+08
I(0) 误差 (实空间) i0_real_error	2.2050e+06
Rg (倒空间) rg_reciprocal	39.66 Å
I(0) (倒空间) i0_reciprocal	107000000.0000
解质量估计 total_estimate	0.8011
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	40.4 Å
偏度 Skewness skewness	0.617
峰度 Kurtosis kurtosis	0.059
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6606000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.678; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.667; Smooth: 0.708

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Troponin C
分子量 formula_weight	18401.4 kDa
突变 mutation	C35S, C84S
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	5777

MDDIYKAAVEQLTEEQKNEFKAAFDIFVLGAEDGSISTKELGKVMRMLGQNPTPEELQEMIDEVDEDGSGTVDFDEFLVMMVRSMKDDSKGKSEEELSDLFRMFDKNADGYIDLEELKIMLQATGETITEDDIEELMKDGDKNNDGRIDYDEFLEFMKGVE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Troponin T
分子量 formula_weight	12842.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

HFGGYIQKQAQTERKSGKRQTEREKKKKILAERRKVLAIDHLNEDQLREKAKELWQTIYNLEAEKFDLQEKFKQQKYEINVLRNRINDNQKVSKTRGKAKVTGRWK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Troponin I
分子量 formula_weight	15191.7 kDa
突变 mutation	T31M, C80A, C97A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

MEPHAKKKSKISASRKLQLKTLLLQIAKQELEREAEERRGEKGRALSTRAQPLELAGLGFAELQDLARQLHARVDKVDEERYDIEAKVTKNITEIADLTQKIFDLRGKFKRPTLRRVRISADAMMQALLGARA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	102

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1j1da_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

结构域编号 domain_id	d1j1db_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.25 — Troponin coil-coiled subunits
家族 Family family	h.1.25.1 — Troponin T

结构域编号 domain_id	d1j1dc_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.25 — Troponin coil-coiled subunits
家族 Family family	h.1.25.2 — Troponin I

结构域编号 domain_id	d1j1dd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

结构域编号 domain_id	d1j1de_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.25 — Troponin coil-coiled subunits
家族 Family family	h.1.25.1 — Troponin T

结构域编号 domain_id	d1j1df_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.25 — Troponin coil-coiled subunits
家族 Family family	h.1.25.2 — Troponin I

CATH v4.4 (8 domains)

结构域编号 domain_id	1j1dA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1j1dA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1j1dB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	350 — Troponin complex, TnI/TnT subunit

结构域编号 domain_id	1j1dC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	350 — Troponin complex, TnI/TnT subunit

结构域编号 domain_id	1j1dD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1j1dD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1j1dE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	350 — Troponin complex, TnI/TnT subunit

结构域编号 domain_id	1j1dF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	350 — Troponin complex, TnI/TnT subunit

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	42.346 Å
晶胞边长 b length_b	167.860 Å
晶胞边长 c length_c	69.707 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.35 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.610 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	—
R_work r_work	0.2640
R_free r_free	0.2980

fit	/app/data/saxs_computation/j1/1j1d/1j1d.fit
pddf	/app/data/pr_computation/j1/1j1d/1j1d.pr.out
profile	/app/data/saxs_computation/j1/1j1d/1j1d.dat
