SAXSdb — 1j2g

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1j2g
沉积日期 deposition_date	2003-01-05
结构标题 title	Crystal structure of Urate oxidase from Bacillus SP. TB-90 co-crystallized with 8-Azaxanthine
关键词 keywords	T-fold barrel, purine, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.40 Å
回转半径 Rg (电子) rg_electron	30.84 Å
零角强度 I(0) i0	302689000.00
分子量 molecular_weight	140770.0 kDa
排除体积 excluded_volume	176870 Å³
包络体积 envelope_volume	220300 Å³
水化壳体积 shell_volume	55774 Å³
包络直径 envelope_diameter	96.3 Å
壳层 Rg shell_rg	40.65 Å
包络 Rg envelope_rg	30.32 Å
形状 Rg shape_rg	30.81 Å
总 Rg total_rg	31.80 Å
总原子数 total_atoms	9956
残基数 n_residues	1224
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	89.9 Å
Rg (实空间) rg_real	32.04 Å
Rg 误差 (实空间) rg_real_error	0.27 Å
I(0) (实空间) i0_real	3.0270e+08
I(0) 误差 (实空间) i0_real_error	3.6340e+06
Rg (倒空间) rg_reciprocal	32.19 Å
I(0) (倒空间) i0_reciprocal	302700000.0000
解质量估计 total_estimate	0.9040
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.0 Å
偏度 Skewness skewness	-0.074
峰度 Kurtosis kurtosis	-0.556
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	162900000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.911

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Uricase
分子量 formula_weight	36581.2 kDa
EC 编号 ec_number	1.7.3.3
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	10365

MTKHKERVMYYGKGDVFAYRTYLKPLTGVRTIPESPFSGRDHILFGVNVKISVGGTKLLTSFTKGDNSLVVATDSMKNFIQKHLASYTGTTIEGFLEYVATSFLKKYSHIEKISLIGEEIPFETTFAVKNGNRAASELVFKKSRNEYATAYLNMVRNEDNTLNITEQQSGLAGLQLIKVSGNSFVGFIRDEYTTLPEDSNRPLFVYLNIKWKYKNTEDSFGTNPENYVAAEQIRDIATSVFHETETLSIQHLIYLIGRRILERFPQLQEVYFESQNHTWDKIVEEIPESEGKVYTEPRPPYGFQCFTVTQEDLPHENIL

来源 Source

来源生物 organism	Bacillus sp.
NCBI 分类编号 ncbi_taxonomy_id	36824
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	8-AZAXANTHINE
分子量 formula_weight	153.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	409

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1j2ga1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2ga2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2gb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2gb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2gc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2gc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2gd1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

结构域编号 domain_id	d1j2gd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.96 — T-fold
超家族 Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
家族 Family family	d.96.1.4 — Urate oxidase (uricase)

CATH v4.4 (4 domains)

结构域编号 domain_id	1j2gA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	270 — Urate Oxidase
同源超家族 H-superfamily homologous superfamily	10 — Urate Oxidase;

结构域编号 domain_id	1j2gB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	270 — Urate Oxidase
同源超家族 H-superfamily homologous superfamily	10 — Urate Oxidase;

结构域编号 domain_id	1j2gC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	270 — Urate Oxidase
同源超家族 H-superfamily homologous superfamily	10 — Urate Oxidase;

结构域编号 domain_id	1j2gD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	270 — Urate Oxidase
同源超家族 H-superfamily homologous superfamily	10 — Urate Oxidase;

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	133.390 Å
晶胞边长 b length_b	144.410 Å
晶胞边长 c length_c	78.785 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	48.010 Å
R 因子 r_factor	0.1823
R_work r_work	0.1804
R_free r_free	0.2181

fit	/app/data/saxs_computation/j2/1j2g/1j2g.fit
pddf	/app/data/pr_computation/j2/1j2g/1j2g.pr.out
profile	/app/data/saxs_computation/j2/1j2g/1j2g.dat

Crystal structure of Urate oxidase from Bacillus SP. TB-90 co-crystallized with 8-Azaxanthine

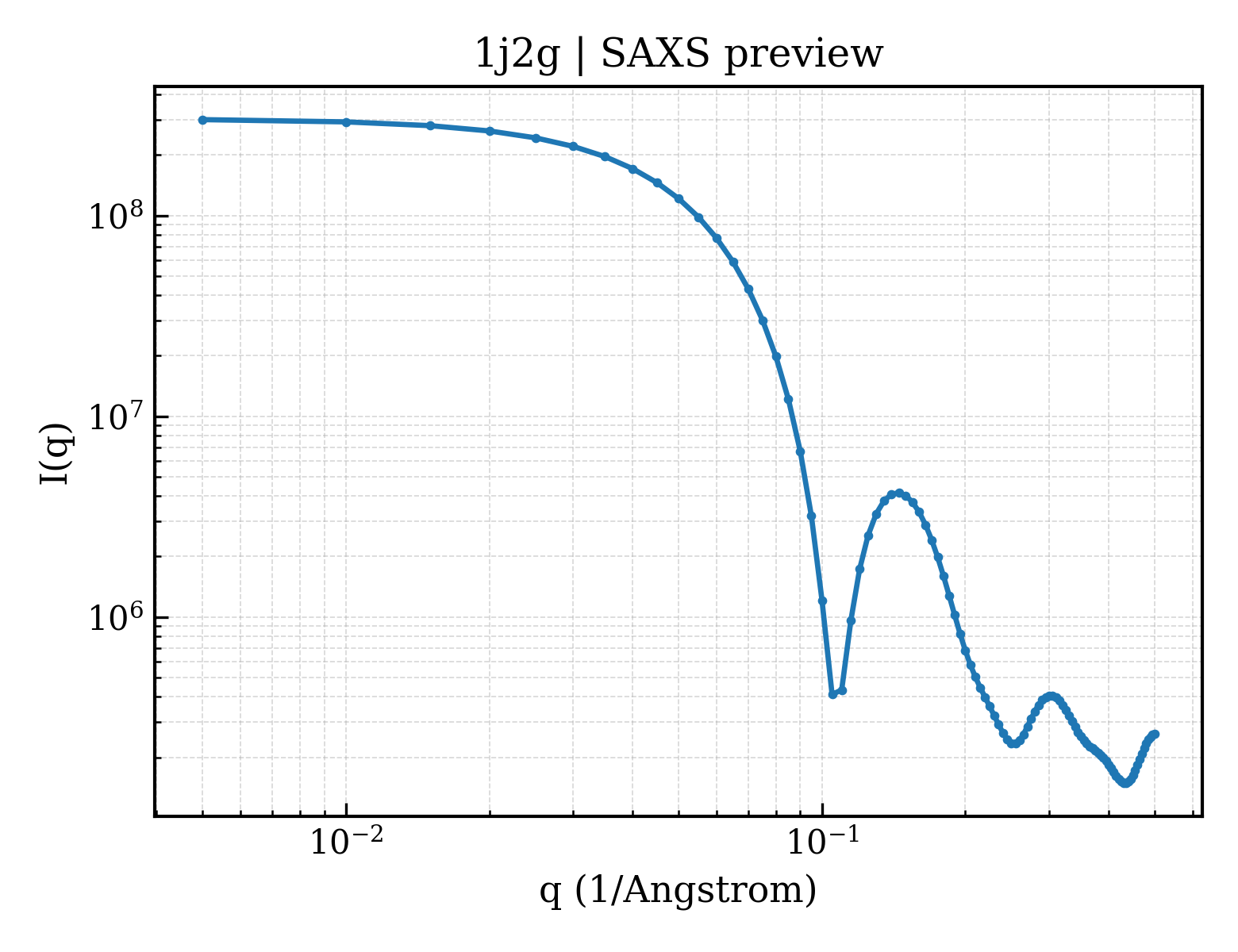

SAXS 散射曲线 SAXS Profile

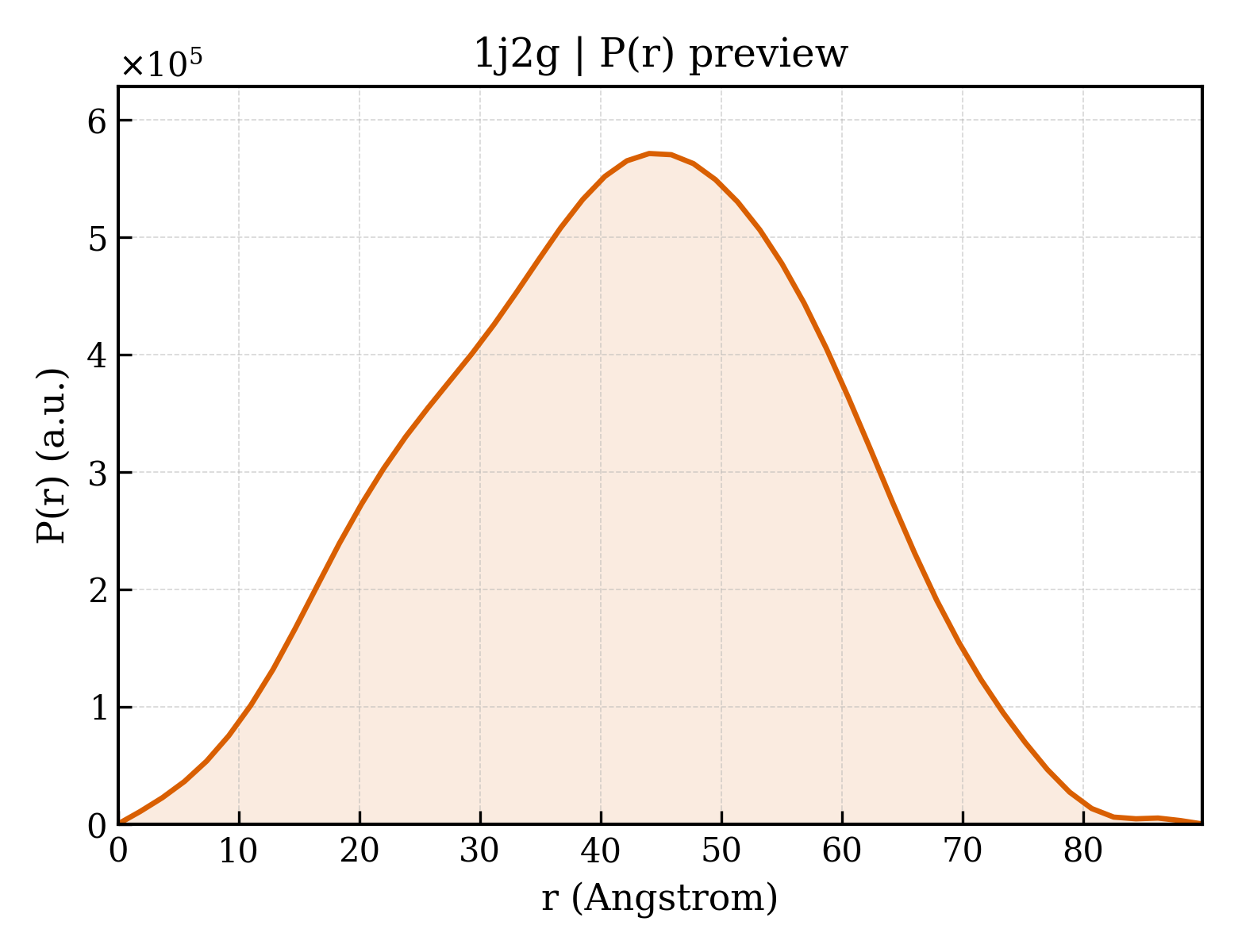

P(r) 距离分布 P(r) Distribution
