1j2q

20S proteasome in complex with calpain-Inhibitor I from archaeoglobus fulgidus

Method: X-RAY DIFFRACTION D_max: 139.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

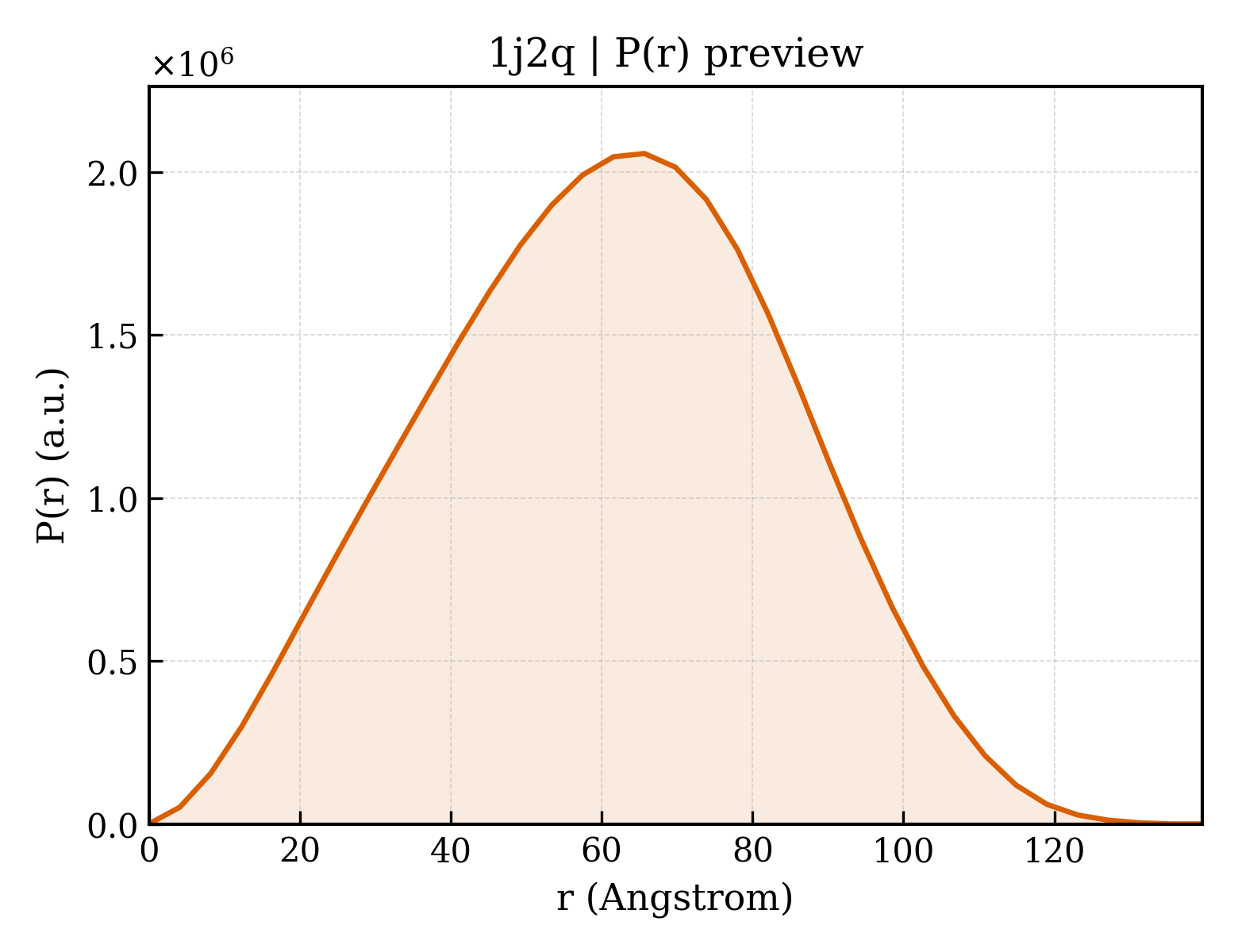

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1j2q
沉积日期 deposition_date	2003-01-08
结构标题 title	20S proteasome in complex with calpain-Inhibitor I from archaeoglobus fulgidus
关键词 keywords	proteasome, ubiquitin, 20S, CP, hydrolase; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.52 Å
回转半径 Rg (电子) rg_electron	45.56 Å
零角强度 I(0) i0	1610450000.00
分子量 molecular_weight	343050.0 kDa
排除体积 excluded_volume	433840 Å³
包络体积 envelope_volume	581640 Å³
水化壳体积 shell_volume	101280 Å³
包络直径 envelope_diameter	140.4 Å
壳层 Rg shell_rg	54.27 Å
包络 Rg envelope_rg	44.34 Å
形状 Rg shape_rg	45.53 Å
总 Rg total_rg	45.99 Å
总原子数 total_atoms	24122
残基数 n_residues	2940
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	139.6 Å
Rg (实空间) rg_real	46.09 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	1.6100e+09
I(0) 误差 (实空间) i0_real_error	2.8200e+07
Rg (倒空间) rg_reciprocal	46.51 Å
I(0) (倒空间) i0_reciprocal	1611000000.0000
解质量估计 total_estimate	0.8881
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	65.7 Å
偏度 Skewness skewness	-0.020
峰度 Kurtosis kurtosis	-0.530
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	177400000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.854

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Proteasome alpha subunit
分子量 formula_weight	26561.5 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G
原子数 atom_count	24227

RAITVFSPDGRLFQVEYAREAVKRGATAIGIKCKEGVILIADKRVGSKLLEADTIEKIYKIDEHICAATSGLVADARVLIDRARIEAQINRLTYDEPITVKELAKKICDFKQQYTQYGGVRPFGVSLLIAGVDEVPKLYETDPSGALLEYKATAIGMGRNAVTEFFEKEYRDDLSFDDAMVLGLVAMGLSIESELVPENIEVGYVKVDDRTFKEVSPEELKPYVERANERIRELLKK

来源 Source

来源生物 organism	Archaeoglobus fulgidus
NCBI 分类编号 ncbi_taxonomy_id	2234
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Proteasome beta subunit
分子量 formula_weight	22132.3 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J,K,L,M,N

TTTVGLVCKDGVVMATEKRATMGNFIASKAAKKIYQIADRMAMTTAGSVGDAQFLARIIKIEANLYEIRRERKPTVRAIATLTSNLLNSYRYFPYLVQLLIGGIDSEGKSIYSIDPIGGAIEEKDIVATGSGSLTAYGVLEDRFTPEIGVDEAVELAVRAIYSAMKRDSASGDGIDVVKITEDEFYQYSPEEVEQILAKFRK

来源 Source

来源生物 organism	Archaeoglobus fulgidus
NCBI 分类编号 ncbi_taxonomy_id	2234
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	2-ACETYLAMINO-4-METHYL-PENTANOIC ACID [1-(1-FORMYL-PENTYLCARBAMOYL)-3-METHYL-BUTYL]-AMIDE
分子量 formula_weight	383.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	105

▼

6. 折叠分类 (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

结构域编号 domain_id	d1j2qa_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qe_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qg_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qh_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qi_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qj_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qk_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2ql_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qm_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1j2qn_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

CATH v4.4 (14 domains)

结构域编号 domain_id	1j2qA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1j2qN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	148.097 Å
晶胞边长 b length_b	148.097 Å
晶胞边长 c length_c	303.140 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	42

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	2.830 Å
最低分辨率 resolution_low	16.990 Å
R 因子 r_factor	0.2430
R_work r_work	0.2410
R_free r_free	0.2790
