Pyrococcus horikoshii
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | RL13_PYRHO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–142； UniProt 1–142 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1j3a |
| Deposition date deposition_date | 2003-01-21 |
| Structure title title | Crystal structure of ribosomal protein L13 from Pyrococcus horikoshii |
| Keywords keywords | ribosomal protein, rRNA binding, ribosomal assembly, RIBOSOME; RIBOSOME |
| Experimental Method method | X-RAY DIFFRACTION |

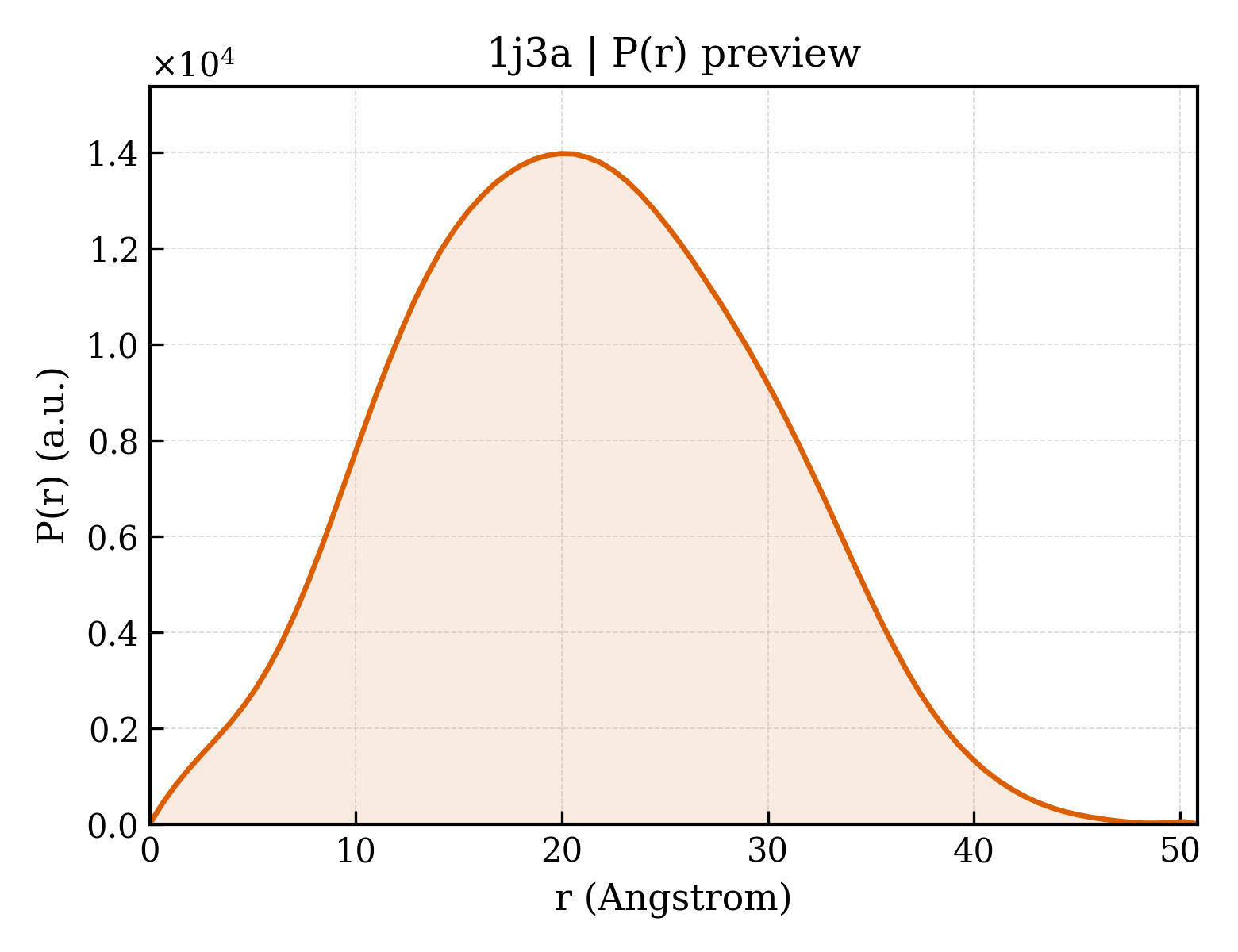

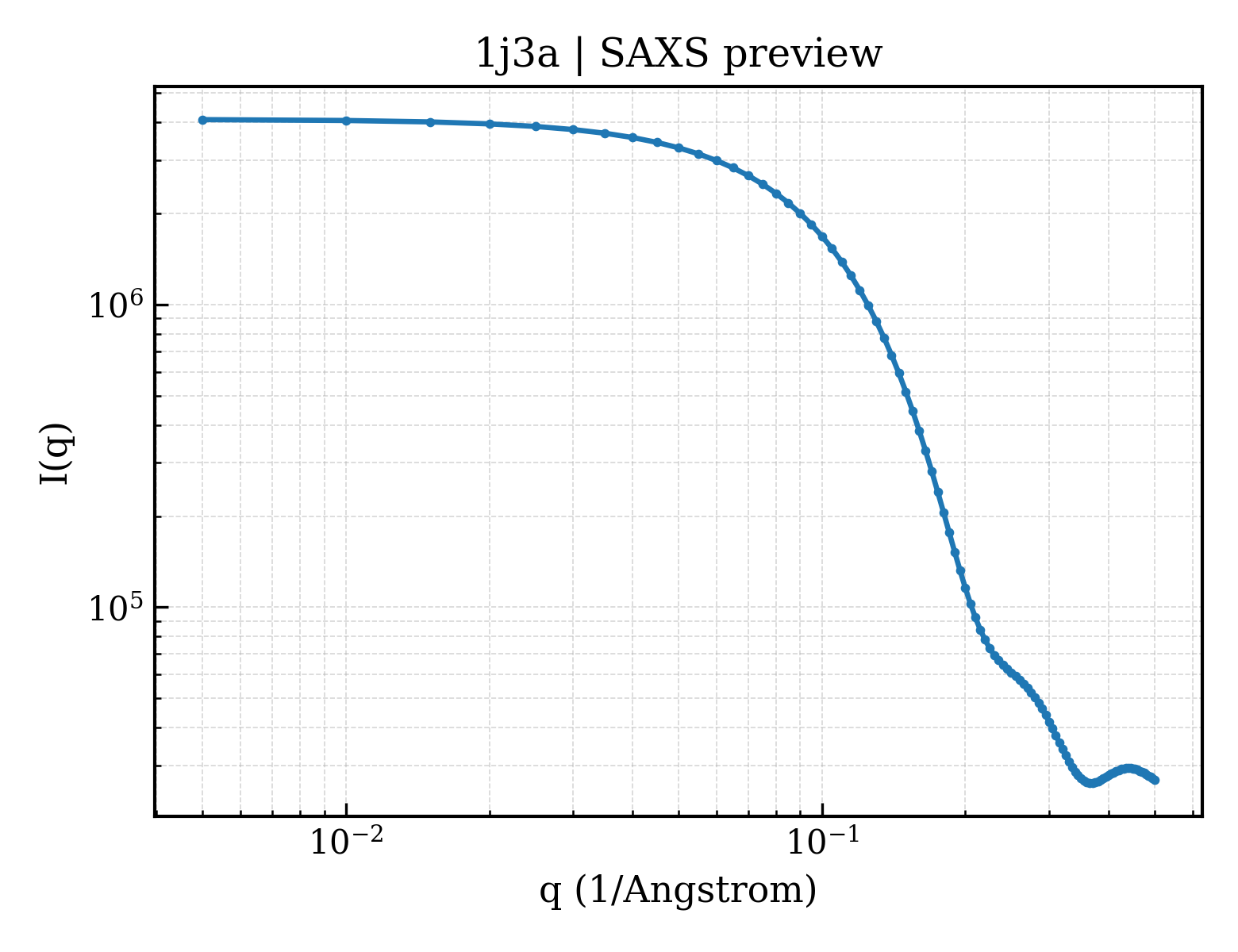

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.15 Å |
| Rg (electron density) | 14.79 Å |
| Total Rg | 16.00 Å |
| Atom count | 1045 |
| Residues | 129 |
| Excluded volume | 18922 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1j3aa_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.21 — Ribosomal protein L13 |
| Superfamily Superfamily superfamily | c.21.1 — Ribosomal protein L13 |
| Family Family family | c.21.1.1 — Ribosomal protein L13 |
| Domain ID domain_id | 1j3aA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 1180 — Ribosomal Protein L13p; Chain: A; |
| Homologous superfamily homologous superfamily | 10 — Ribosomal protein L13 |
