SAXSdb — 1j3j

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1j3j
沉积日期 deposition_date	2003-02-03
结构标题 title	;Double mutant (C59R+S108N) Plasmodium falciparum dihydrofolate reductase-thymidylate synthase (PfDHFR-TS) complexed with pyrimethamine, NADPH, and dUMP ;
关键词 keywords	bifunctional, OXIDOREDUCTASE, TRANSFERASE; OXIDOREDUCTASE, TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.75 Å
回转半径 Rg (电子) rg_electron	33.70 Å
零角强度 I(0) i0	255683000.00
分子量 molecular_weight	131140.0 kDa
排除体积 excluded_volume	164940 Å³
包络体积 envelope_volume	211560 Å³
水化壳体积 shell_volume	50937 Å³
包络直径 envelope_diameter	110.5 Å
壳层 Rg shell_rg	41.63 Å
包络 Rg envelope_rg	33.58 Å
形状 Rg shape_rg	33.66 Å
总 Rg total_rg	34.43 Å
总原子数 total_atoms	9228
残基数 n_residues	1089
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	104.6 Å
Rg (实空间) rg_real	34.63 Å
Rg 误差 (实空间) rg_real_error	0.52 Å
I(0) (实空间) i0_real	2.5570e+08
I(0) 误差 (实空间) i0_real_error	3.6180e+06
Rg (倒空间) rg_reciprocal	34.71 Å
I(0) (倒空间) i0_reciprocal	255700000.0000
解质量估计 total_estimate	0.6721
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.2 Å
偏度 Skewness skewness	0.170
峰度 Kurtosis kurtosis	-0.598
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	55920000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.980; Stabil: 1.000; Sysdev: 0.038; Positv: 1.000; Valcen: 0.997; Smooth: 0.684

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Bifunctional dihydrofolate reductase-thymidylate synthase
分子量 formula_weight	33214.3 kDa
EC 编号 ec_number	1.5.1.3, 2.1.1.45
突变 mutation	C59R, S108N
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9961

MMEQVCDVFDIYAICACCKVESKNEGKKNEVFNNYTFRGLGNKGVLPWKCNSLDMKYFRAVTTYVNESKYEKLKYKRCKYLNKETVDNVNDMPNSKKLQNVVVMGRTNWESIPKKFKPLSNRINVILSRTLKKEDFDEDVYIINKVEDLIVLLGKLNYYKCFIIGGSVVYQEFLEKKLIKKIYFTRINSTYECDVFFPEINENEYQIISVSDVYTSNNTTLDFIIYKKTNNKMLNEQNCIKGEEKNNDMPLKNDDKDTCHMKKLTEFYKNVDKYKINYEN

来源 Source

来源生物 organism	Plasmodium falciparum
通用名 common_name	malaria parasite P. falciparum
NCBI 分类编号 ncbi_taxonomy_id	5833
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Bifunctional dihydrofolate reductase-thymidylate synthase
分子量 formula_weight	38712.9 kDa
EC 编号 ec_number	1.5.1.3, 2.1.1.45
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

DDDDEEEDDFVYFNFNKEKEEKNKNSIHPNDFQIYNSLKYKYHPEYQYLNIIYDIMMNGNKQSDRTGVGVLSKFGYIMKFDLSQYFPLLTTKKLFLRGIIEELLWFIRGETNGNTLLNKNVRIWEANGTREFLDNRKLFHREVNDLGPIYGFQWRHFGAEYTNMYDNYENKGVDQLKNIINLIKNDPTSRRILLCAWNVKDLDQMALPPCHILCQFYVFDGKLSCIMYQRSCDLGLGVPFNIASYSIFTHMIAQVCNLQPAQFIHVLGNAHVYNNHIDSLKIQLNRIPYPFPTLKLNPDIKNIEDFTISDFTIQNYVHHEKISMDMAA

来源 Source

来源生物 organism	Plasmodium falciparum
通用名 common_name	malaria parasite P. falciparum
NCBI 分类编号 ncbi_taxonomy_id	5833
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	5-(4-CHLORO-PHENYL)-6-ETHYL-PYRIMIDINE-2,4-DIAMINE
分子量 formula_weight	248.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	745.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	;2'-DEOXYURIDINE 5'-MONOPHOSPHATE ;
分子量 formula_weight	308.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	733

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1j3ja_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.71 — Dihydrofolate reductase-like
超家族 Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
家族 Family family	c.71.1.1 — Dihydrofolate reductases

结构域编号 domain_id	d1j3jb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.71 — Dihydrofolate reductase-like
超家族 Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
家族 Family family	c.71.1.1 — Dihydrofolate reductases

结构域编号 domain_id	d1j3jc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.117 — Thymidylate synthase/dCMP hydroxymethylase
超家族 Superfamily superfamily	d.117.1 — Thymidylate synthase/dCMP hydroxymethylase
家族 Family family	d.117.1.1 — Thymidylate synthase/dCMP hydroxymethylase

结构域编号 domain_id	d1j3jd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.117 — Thymidylate synthase/dCMP hydroxymethylase
超家族 Superfamily superfamily	d.117.1 — Thymidylate synthase/dCMP hydroxymethylase
家族 Family family	d.117.1.1 — Thymidylate synthase/dCMP hydroxymethylase

CATH v4.4 (4 domains)

结构域编号 domain_id	1j3jA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	430 — Dihydrofolate Reductase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

结构域编号 domain_id	1j3jB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	430 — Dihydrofolate Reductase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

结构域编号 domain_id	1j3jC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	572 — Thymidylate Synthase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Thymidylate synthase/dCMP hydroxymethylase domain

结构域编号 domain_id	1j3jD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	572 — Thymidylate Synthase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Thymidylate synthase/dCMP hydroxymethylase domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	56.343 Å
晶胞边长 b length_b	154.999 Å
晶胞边长 c length_c	164.001 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	23.830 Å
R 因子 r_factor	0.2000
R_work r_work	0.1980
R_free r_free	0.2310

fit	/app/data/saxs_computation/j3/1j3j/1j3j.fit
pddf	/app/data/pr_computation/j3/1j3j/1j3j.pr.out
profile	/app/data/saxs_computation/j3/1j3j/1j3j.dat

;Double mutant (C59R+S108N) Plasmodium falciparum dihydrofolate reductase-thymidylate synthase (PfDHFR-TS) complexed with pyrimethamine, NADPH, and dUMP ;

SAXS 散射曲线 SAXS Profile

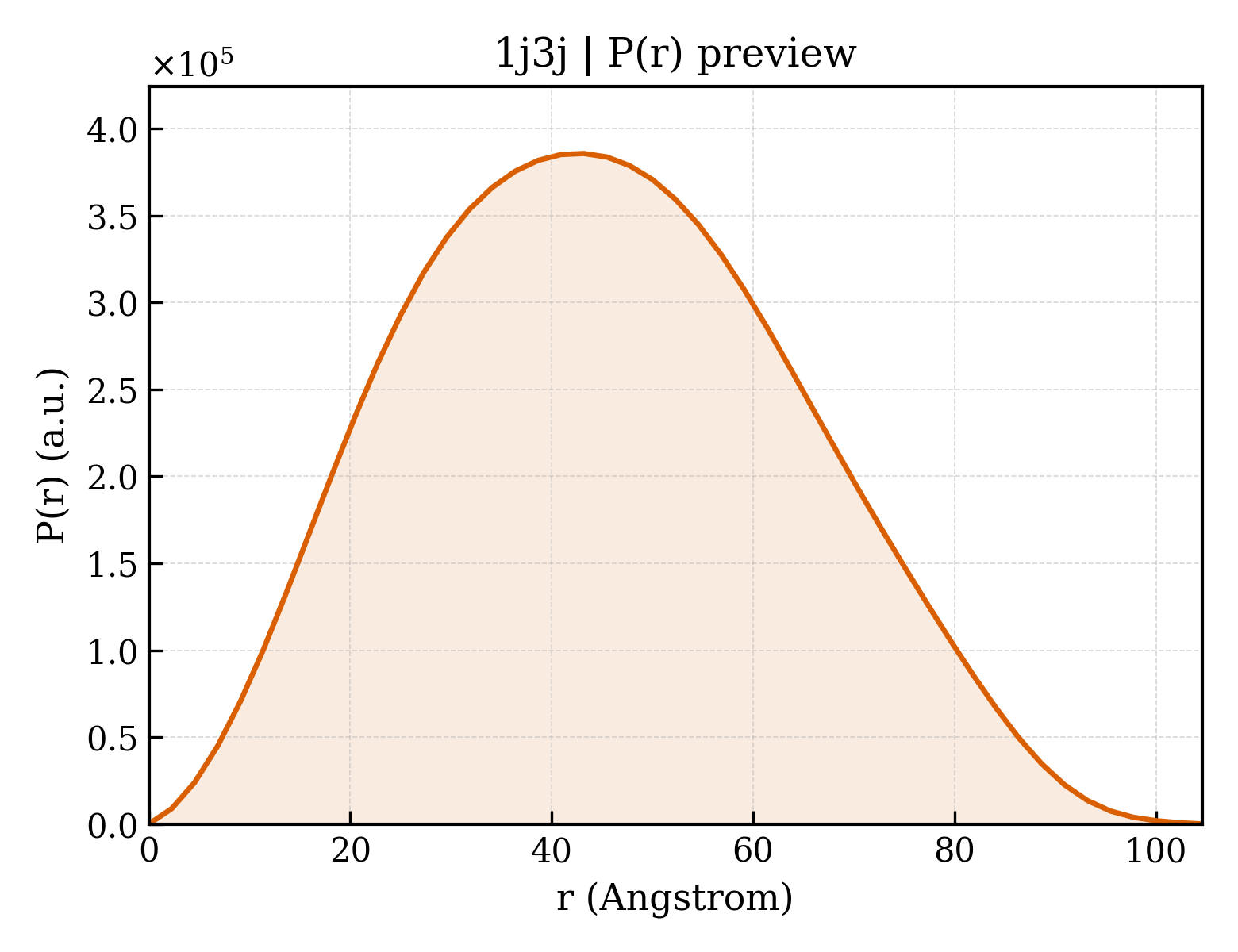

P(r) 距离分布 P(r) Distribution
