1j3l
Structure of the RNA-processing inhibitor RraA from Thermus thermophilis

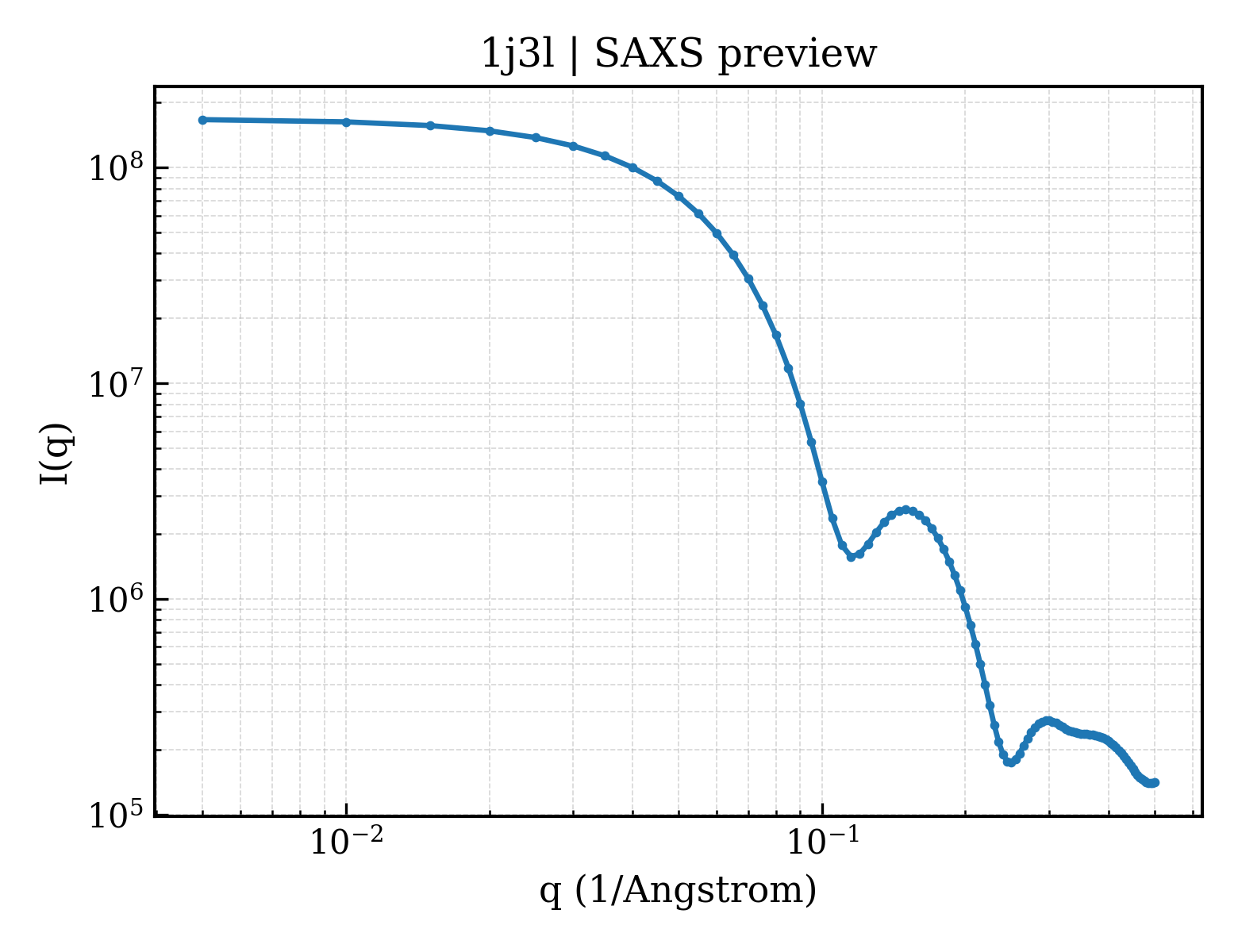

SAXS 散射曲线 SAXS Profile

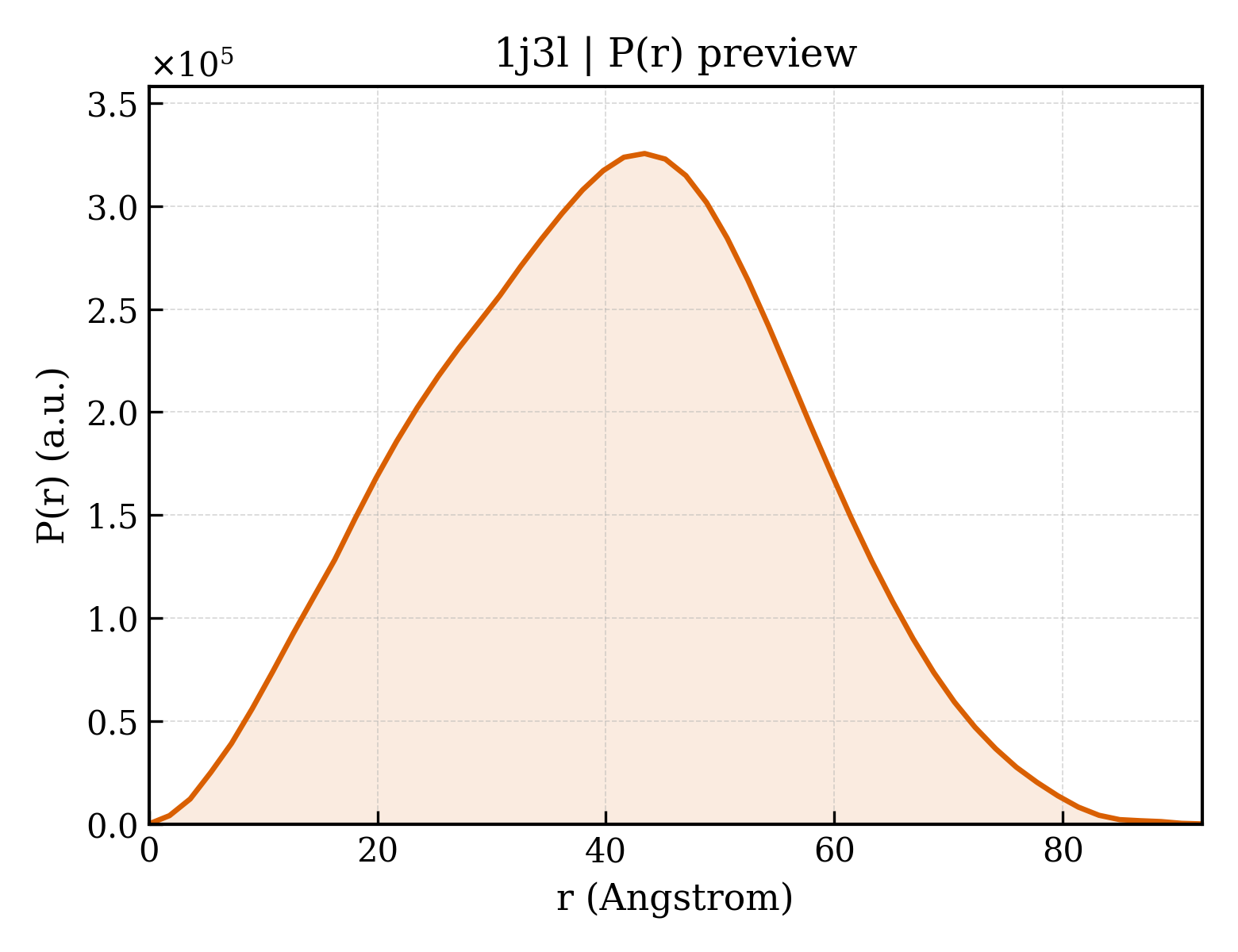

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1j3l |
| 沉积日期 deposition_date | 2003-02-04 |
| 结构标题 title | Structure of the RNA-processing inhibitor RraA from Thermus thermophilis |
| 关键词 keywords | Vitamine K2, Structural Genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, transferase; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 30.98 Å |
| 回转半径 Rg (电子) rg_electron | 29.80 Å |
| 零角强度 I(0) i0 | 168168000.00 |
| 分子量 molecular_weight | 103750.0 kDa |
| 排除体积 excluded_volume | 130640 ų |
| 包络体积 envelope_volume | 166330 ų |
| 水化壳体积 shell_volume | 45324 ų |
| 包络直径 envelope_diameter | 94.6 Å |
| 壳层 Rg shell_rg | 38.14 Å |
| 包络 Rg envelope_rg | 29.09 Å |
| 形状 Rg shape_rg | 29.81 Å |
| 总 Rg total_rg | 30.55 Å |
| 总原子数 total_atoms | 7294 |
| 残基数 n_residues | 968 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 92.2 Å |
| Rg (实空间) rg_real | 30.73 Å |
| Rg 误差 (实空间) rg_real_error | 0.58 Å |
| I(0) (实空间) i0_real | 1.6820e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.4910e+06 |
| Rg (倒空间) rg_reciprocal | 30.84 Å |
| I(0) (倒空间) i0_reciprocal | 168200000.0000 |
| 解质量估计 total_estimate | 0.8989 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 43.4 Å |
| 偏度 Skewness skewness | 0.028 |
| 峰度 Kurtosis kurtosis | -0.493 |
| 角度范围 angular_range | — – 0.2550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 68650000.0000 |
| 实空间数据点数 n_real_points | 52 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.920; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.949 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1j3la_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.8 — The 'swivelling' beta/beta/alpha domain |
| 超家族 Superfamily superfamily | c.8.7 — RraA-like |
| 家族 Family family | c.8.7.1 — RraA-like |
| 结构域编号 domain_id | d1j3lb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.8 — The 'swivelling' beta/beta/alpha domain |
| 超家族 Superfamily superfamily | c.8.7 — RraA-like |
| 家族 Family family | c.8.7.1 — RraA-like |
| 结构域编号 domain_id | d1j3lc_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.8 — The 'swivelling' beta/beta/alpha domain |
| 超家族 Superfamily superfamily | c.8.7 — RraA-like |
| 家族 Family family | c.8.7.1 — RraA-like |
| 结构域编号 domain_id | d1j3ld_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.8 — The 'swivelling' beta/beta/alpha domain |
| 超家族 Superfamily superfamily | c.8.7 — RraA-like |
| 家族 Family family | c.8.7.1 — RraA-like |
| 结构域编号 domain_id | d1j3le_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.8 — The 'swivelling' beta/beta/alpha domain |
| 超家族 Superfamily superfamily | c.8.7 — RraA-like |
| 家族 Family family | c.8.7.1 — RraA-like |
| 结构域编号 domain_id | d1j3lf_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.8 — The 'swivelling' beta/beta/alpha domain |
| 超家族 Superfamily superfamily | c.8.7 — RraA-like |
| 家族 Family family | c.8.7.1 — RraA-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1j3lA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 30 — Glucose Oxidase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 40 — Ribonuclease E inhibitor RraA/RraA-like |
| 结构域编号 domain_id | 1j3lB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 30 — Glucose Oxidase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 40 — Ribonuclease E inhibitor RraA/RraA-like |
| 结构域编号 domain_id | 1j3lC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 30 — Glucose Oxidase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 40 — Ribonuclease E inhibitor RraA/RraA-like |
| 结构域编号 domain_id | 1j3lD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 30 — Glucose Oxidase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 40 — Ribonuclease E inhibitor RraA/RraA-like |
| 结构域编号 domain_id | 1j3lE00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 30 — Glucose Oxidase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 40 — Ribonuclease E inhibitor RraA/RraA-like |
| 结构域编号 domain_id | 1j3lF00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 30 — Glucose Oxidase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 40 — Ribonuclease E inhibitor RraA/RraA-like |
