SAXSdb — 1j48

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Apoprotein of C1027

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAGA_STRGL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–110； UniProt 34–143 Author chain B； PDBConstruct 1–110； UniProt 34–143

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1j48
Deposition date deposition_date	2001-07-30
Structure title title	Crystal Structure of Apo-C1027
Keywords keywords	Antibiotic, DNA-binding; ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1j48__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1j48__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

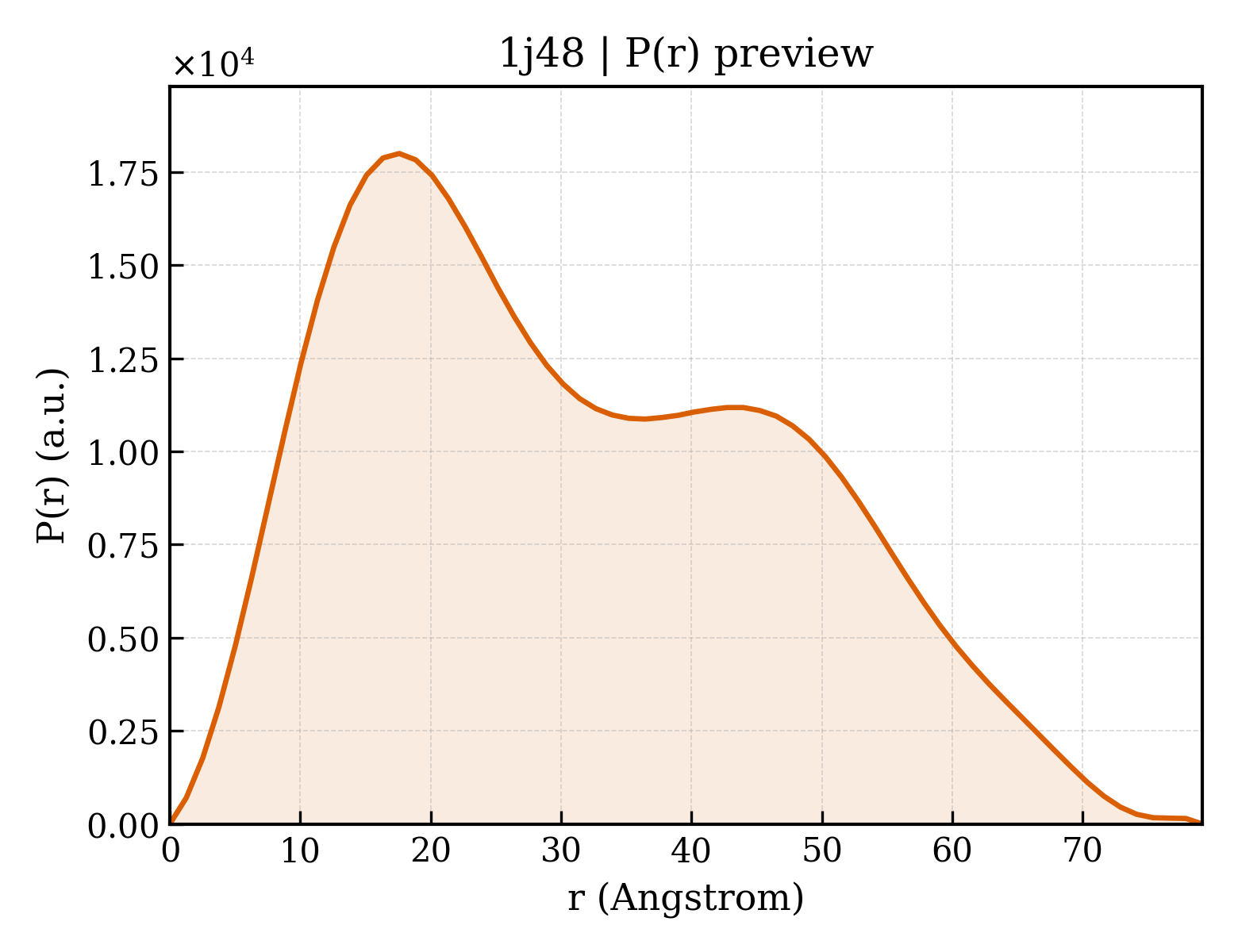

1j48__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.36 Å
Rg (electron density)	13.23 Å
Total Rg	14.34 Å
Atom count	731
Residues	109
Excluded volume	12732 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1j48__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1j48__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1j48a_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.7 — Actinoxanthin-like
Family Family family	b.1.7.1 — Actinoxanthin-like

Domain ID domain_id	d1j48b_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.7 — Actinoxanthin-like
Family Family family	b.1.7.1 — Actinoxanthin-like

CATH v4.4 (2 domains)

Domain ID domain_id	1j48A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	230 — Neocarzinostatin-like

Domain ID domain_id	1j48B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	230 — Neocarzinostatin-like

▶

Unit-cell length a length_a	55.150 Å
Unit-cell length b length_b	55.150 Å
Unit-cell length c length_c	55.870 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	500.000 Å
R factor r_factor	—
R_work r_work	0.1850
R_free r_free	0.2370

Description description	Apoprotein of C1027
Molecular weight formula_weight	10504.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1642

Crystal Structure of Apo-C1027

1. Protein Identity and Related Structures Protein Identity & Related Structures

Apoprotein of C1027

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1j48__assembly_1__model_1

1j48__assembly_1__model_1 | I(q)

1j48__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	180
