Thermotoga maritima
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | CALCIUM ION × 1 water × 1 | Consistent with protein count |
| UniProt name | Q9X0H1_THEMA |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 13–136； UniProt 1–124 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1j5u |
| Deposition date deposition_date | 2002-07-03 |
| Structure title title | CRYSTAL STRUCTURE OF AN ARCHEASE, POSSIBLE CHAPERONE (TM1083) FROM THERMOTOGA MARITIMA AT 2.0 A RESOLUTION |
| Keywords keywords | ARCHEASE, STRUCTURAL GENOMICS, JOINT CENTER FOR STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI, CHAPERONE; CHAPERONE |
| Experimental Method method | X-RAY DIFFRACTION |

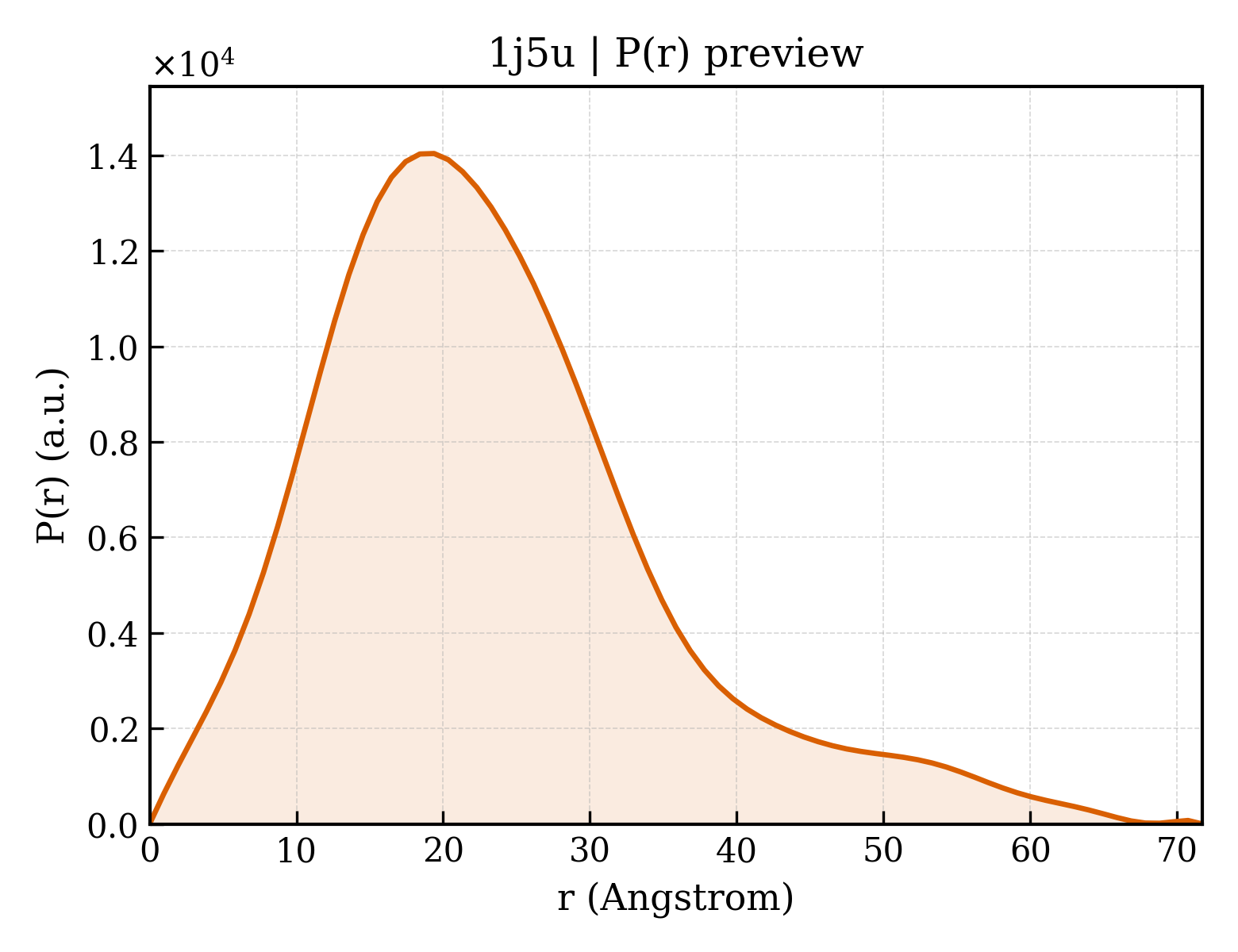

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 18.07 Å |
| Rg (electron density) | 16.81 Å |
| Total Rg | 17.99 Å |
| Atom count | 1066 |
| Residues | 125 |
| Excluded volume | 19030 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1j5ua1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.208 — MTH1598-like |
| Superfamily Superfamily superfamily | d.208.1 — MTH1598-like |
| Family Family family | d.208.1.1 — MTH1598-like |
| Domain ID domain_id | d1j5ua2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1j5uA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 55 — 3-Layer(bab) Sandwich |
| Topology topology | 10 — Archease, Possible Chaperone; Chain: A; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Archease domain |
