SAXSdb — 1j8d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

deoxy-D-mannose-octulosonate 8-phosphate phosphatase

Haemophilus influenzae Rd

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	GLYCEROL × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KDOP_HAEIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–180； UniProt 1–180 Author chain B； PDBConstruct 1–180； UniProt 1–180 Author chain C； PDBConstruct 1–180； UniProt 1–180 Author chain D； PDBConstruct 1–180； UniProt 1–180

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1j8d
Deposition date deposition_date	2001-05-21
Structure title title	Structure Of the metal-free form of the deoxy-D-mannose-octulosonate 8-phosphate phosphatase (YrbI) From Haemophilus Influenzae (HI1679)
Keywords keywords	HI1679, structural genomics, KDO 8-P phosphatase, Structure 2 Function Project, S2F, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1j8d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1j8d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

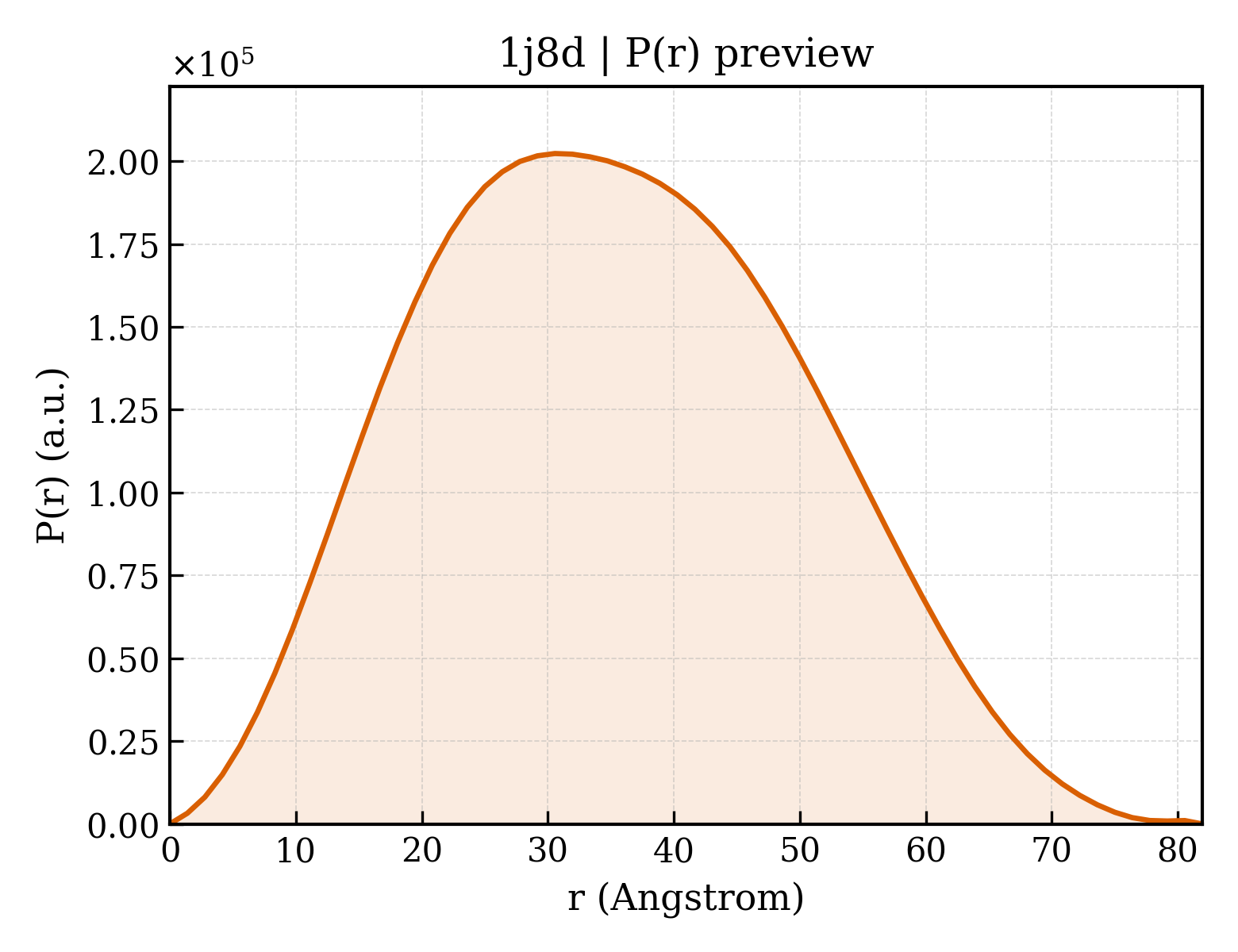

1j8d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.10 Å
Rg (electron density)	26.26 Å
Total Rg	27.21 Å
Atom count	5454
Residues	692
Excluded volume	97876 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1j8d__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	deoxy-D-mannose-octulosonate 8-phosphate phosphatase
Molecular weight formula_weight	19783.5 kDa
EC 编号 ec_number	3.1.3.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5713

MQQKLENIKFVITDVDGVLTDGQLHYDANGEAIKSFHVRDGLGIKMLMDADIQVAVLSGRDSPILRRRIADLGIKLFFLGKLEKETACFDLMKQAGVTAEQTAYIGDDSVDLPAFAACGTSFAVADAPIYVKNAVDHVLSTHGGKGAFREMSDMILQAQGKSSVFDTAQGFLKSVKSMGQ

Source Source

Source organism organism	Haemophilus influenzae Rd
NCBI taxonomy ID ncbi_taxonomy_id	71421
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	259

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1j8da_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.5 — Probable phosphatase YrbI

Domain ID domain_id	d1j8db_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.5 — Probable phosphatase YrbI

Domain ID domain_id	d1j8dc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.5 — Probable phosphatase YrbI

Domain ID domain_id	d1j8dd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.5 — Probable phosphatase YrbI

CATH v4.4 (4 domains)

Domain ID domain_id	1j8dA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1j8dB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1j8dC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1j8dD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

▶

Unit-cell length a length_a	67.770 Å
Unit-cell length b length_b	132.300 Å
Unit-cell length c length_c	140.970 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1760
R_free r_free	0.2580
