1jbq

;STRUCTURE OF HUMAN CYSTATHIONINE BETA-SYNTHASE: A UNIQUE PYRIDOXAL 5'-PHOSPHATE DEPENDENT HEMEPROTEIN ;

Method: X-RAY DIFFRACTION D_max: 152.6 Å Quality: GOOD

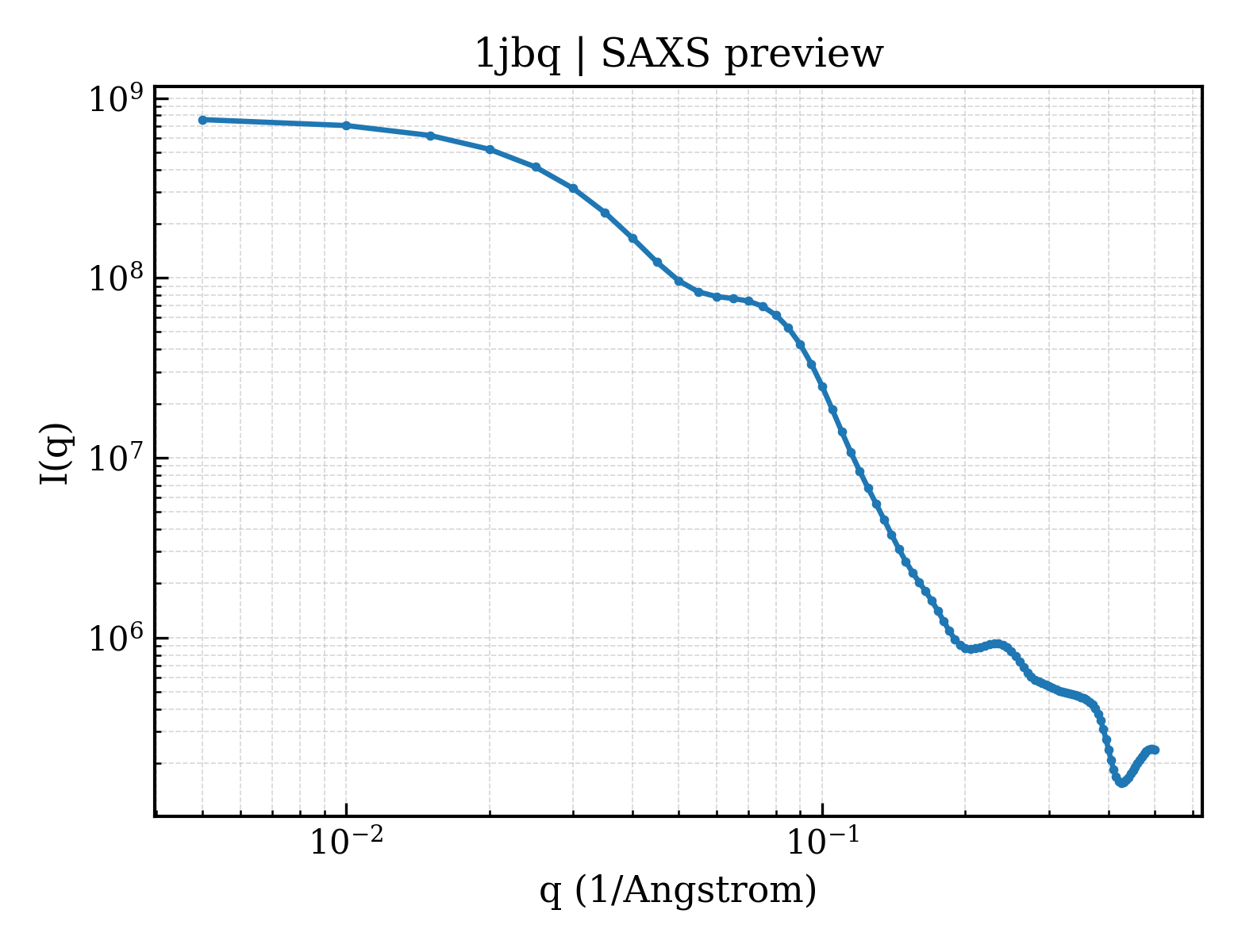

SAXS 散射曲线 SAXS Profile

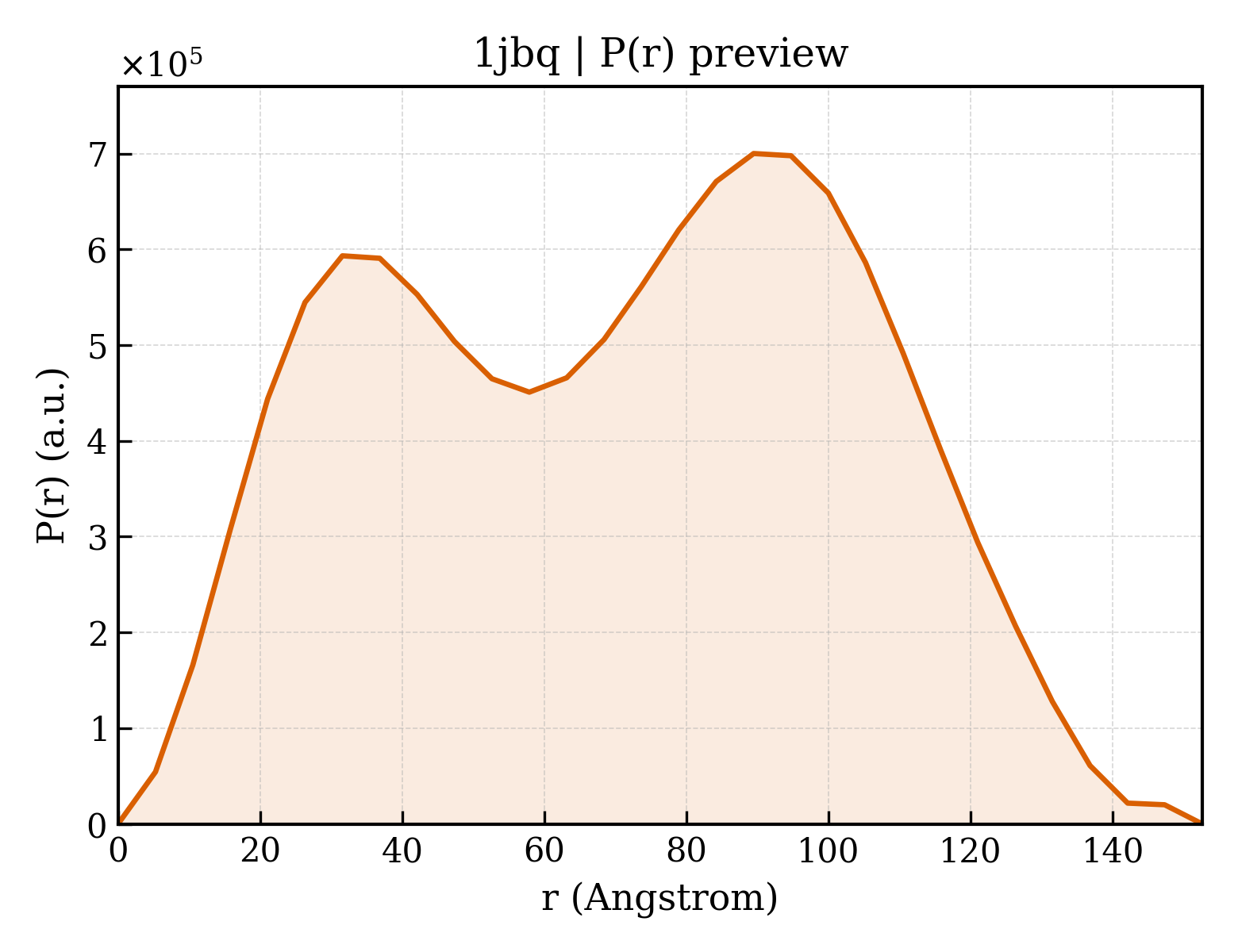

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jbq
沉积日期 deposition_date	2001-06-06
结构标题 title	;STRUCTURE OF HUMAN CYSTATHIONINE BETA-SYNTHASE: A UNIQUE PYRIDOXAL 5'-PHOSPHATE DEPENDENT HEMEPROTEIN ;
关键词 keywords	Fold type II of PLP enzymes, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.01 Å
回转半径 Rg (电子) rg_electron	54.65 Å
零角强度 I(0) i0	777142000.00
分子量 molecular_weight	233580.0 kDa
排除体积 excluded_volume	292340 Å³
包络体积 envelope_volume	419160 Å³
水化壳体积 shell_volume	62251 Å³
包络直径 envelope_diameter	166.8 Å
壳层 Rg shell_rg	61.69 Å
包络 Rg envelope_rg	52.15 Å
形状 Rg shape_rg	54.67 Å
总 Rg total_rg	54.77 Å
总原子数 total_atoms	16368
残基数 n_residues	2090
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	152.6 Å
Rg (实空间) rg_real	54.90 Å
Rg 误差 (实空间) rg_real_error	1.14 Å
I(0) (实空间) i0_real	7.7710e+08
I(0) 误差 (实空间) i0_real_error	1.4550e+07
Rg (倒空间) rg_reciprocal	55.05 Å
I(0) (倒空间) i0_reciprocal	777300000.0000
解质量估计 total_estimate	0.7891
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	89.5 Å
偏度 Skewness skewness	-0.043
峰度 Kurtosis kurtosis	-1.041
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	56220000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.851; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CYSTATHIONINE BETA-SYNTHASE
分子量 formula_weight	47520.1 kDa
EC 编号 ec_number	4.2.1.22
突变 mutation	DELETION 414-551, EXTRA 23 RESIDUES AT N-TERMINUS
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	16522

GIPSETPQAEVGPTSACGVSLGIPSETPQAEVGPTGCPHRSGPHSAKGSLEKGSPEDKEAKEPLWIRPDAPSRCTWQLGRPASESPHHHTAPAKSPKILPDILKKIGDTPMVRINKIGKKFGLKCELLAKCEFFNAGGSVKDRISLRMIEDAERDGTLKPGDTIIEPTSGNTGIGLALAAAVRGYRCIIVMPEKMSSEKVDVLRALGAEIVRTPTNARFDSPESHVGVAWRLKNEIPNSHILDQYRNASNPLAHYDTTADEILQQCDGKLDMLVASVGTGGTITGIARKLKEKCPGCRIIGVDPEGSILAEPEELNQTEQTTYEVEGIGYDFIPTVLDRTVVDKWFKSNDEEAFTFARMLIAQEGLLCGGSAGSTVAVAVKAAQELQEGQRCVVILPDSVRNYMTKFLSDRWMLQKGFLKEEDLTEKKPWWWHLR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	PYRIDOXAL-5'-PHOSPHATE
分子量 formula_weight	247.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	154

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1jbqa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1jbqb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1jbqc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1jbqd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1jbqe_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1jbqf_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

CATH v4.4 (12 domains)

结构域编号 domain_id	1jbqA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1jbqF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	144.520 Å
晶胞边长 b length_b	144.520 Å
晶胞边长 c length_c	108.160 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	P 31
空间群编号 int_tables_number	144
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	43.340 Å
R 因子 r_factor	0.2570
R_work r_work	0.2570
R_free r_free	0.2960
