SAXSdb — 1jd0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBONIC ANHYDRASE XII

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 5-ACETAMIDO-1,3,4-THIADIAZOLE-2-SULFONAMIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAH12_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–263； UniProt 30–292 Author chain B； PDBConstruct 1–263； UniProt 30–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jd0
Deposition date deposition_date	2001-06-11
Structure title title	CRYSTAL STRUCTURE OF THE EXTRACELLULAR DOMAIN OF HUMAN CARBONIC ANHYDRASE XII COMPLEXED WITH ACETAZOLAMIDE
Keywords keywords	Extracellular Domain, Human Carbonic Anhydrase XII, bitopic membrane protein, TYPE I MEMBRANE PROTEIN, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jd0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

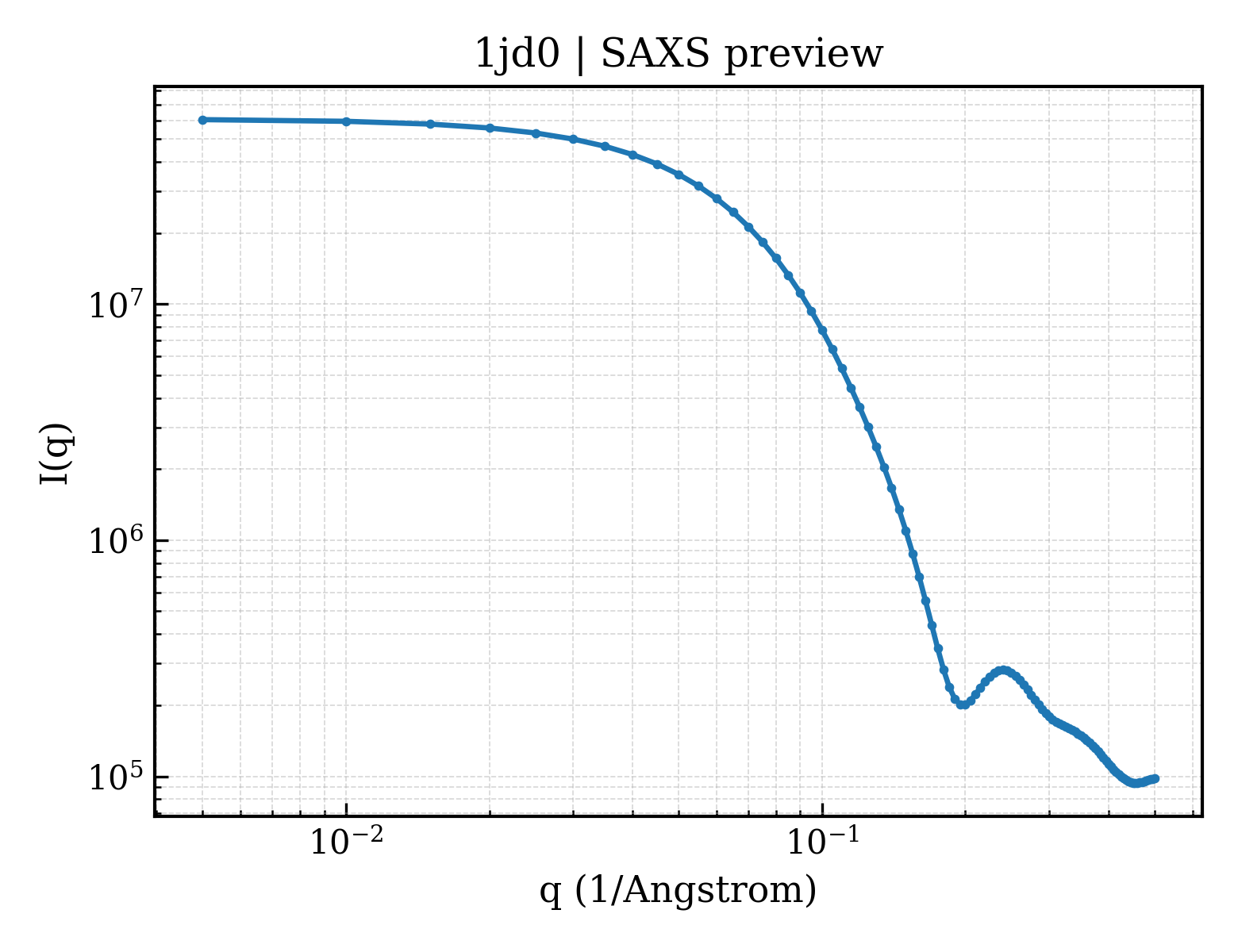

1jd0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jd0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.48 Å
Rg (electron density)	24.83 Å
Total Rg	25.61 Å
Atom count	4195
Residues	519
Excluded volume	73698 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jd0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CARBONIC ANHYDRASE XII
Molecular weight formula_weight	29857.2 kDa
EC 编号 ec_number	4.2.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4699

ASKWTYFGPDGENSWSKKYPSCGGLLQSPIDLHSDILQYDASLTPLEFQGYNLSANKQFLLTNNGHSVKLNLPSDMHIQGLQSRYSATQLHLHWGNPNDPHGSEHTVSGQHFAAELHIVHYNSDLYPDASTASNKSEGLAVLAVLIEMGSFNPSYDKIFSHLQHVKYKGQEAFVPGFNIEELLPERTAEYYRYRGSLTTPPCNPTVLWTVFRNPVQISQEQLLALETALYCTHMDDPSPREMINNFRQVQKFDERLVYTSFSQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	5-ACETAMIDO-1,3,4-THIADIAZOLE-2-SULFONAMIDE
Molecular weight formula_weight	222.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	504

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jd0a_
Class class	b — All beta proteins
Fold Fold fold	b.74 — Carbonic anhydrase
Superfamily Superfamily superfamily	b.74.1 — Carbonic anhydrase
Family Family family	b.74.1.1 — Carbonic anhydrase

Domain ID domain_id	d1jd0b_
Class class	b — All beta proteins
Fold Fold fold	b.74 — Carbonic anhydrase
Superfamily Superfamily superfamily	b.74.1 — Carbonic anhydrase
Family Family family	b.74.1.1 — Carbonic anhydrase

CATH v4.4 (2 domains)

Domain ID domain_id	1jd0A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	200 — Carbonic Anhydrase II
Homologous superfamily homologous superfamily	10 — Alpha carbonic anhydrase

Domain ID domain_id	1jd0B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	200 — Carbonic Anhydrase II
Homologous superfamily homologous superfamily	10 — Alpha carbonic anhydrase

▶

Unit-cell length a length_a	146.875 Å
Unit-cell length b length_b	45.080 Å
Unit-cell length c length_c	85.232 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.98 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1900
R_work r_work	0.1900
R_free r_free	0.2070

CRYSTAL STRUCTURE OF THE EXTRACELLULAR DOMAIN OF HUMAN CARBONIC ANHYDRASE XII COMPLEXED WITH ACETAZOLAMIDE
