Escherichia coli
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | P-HYDROXYBENZOIC ACID × 1 water × 1 | Consistent with protein count |
| UniProt name | UBIC_ECOLI |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–164； UniProt 1–164 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1jd3 |
| Deposition date deposition_date | 2001-06-12 |
| Structure title title | Chorismate lyase G90A mutant with bound product |
| Keywords keywords | active site mutant, product complex, LYASE; LYASE |
| Experimental Method method | X-RAY DIFFRACTION |

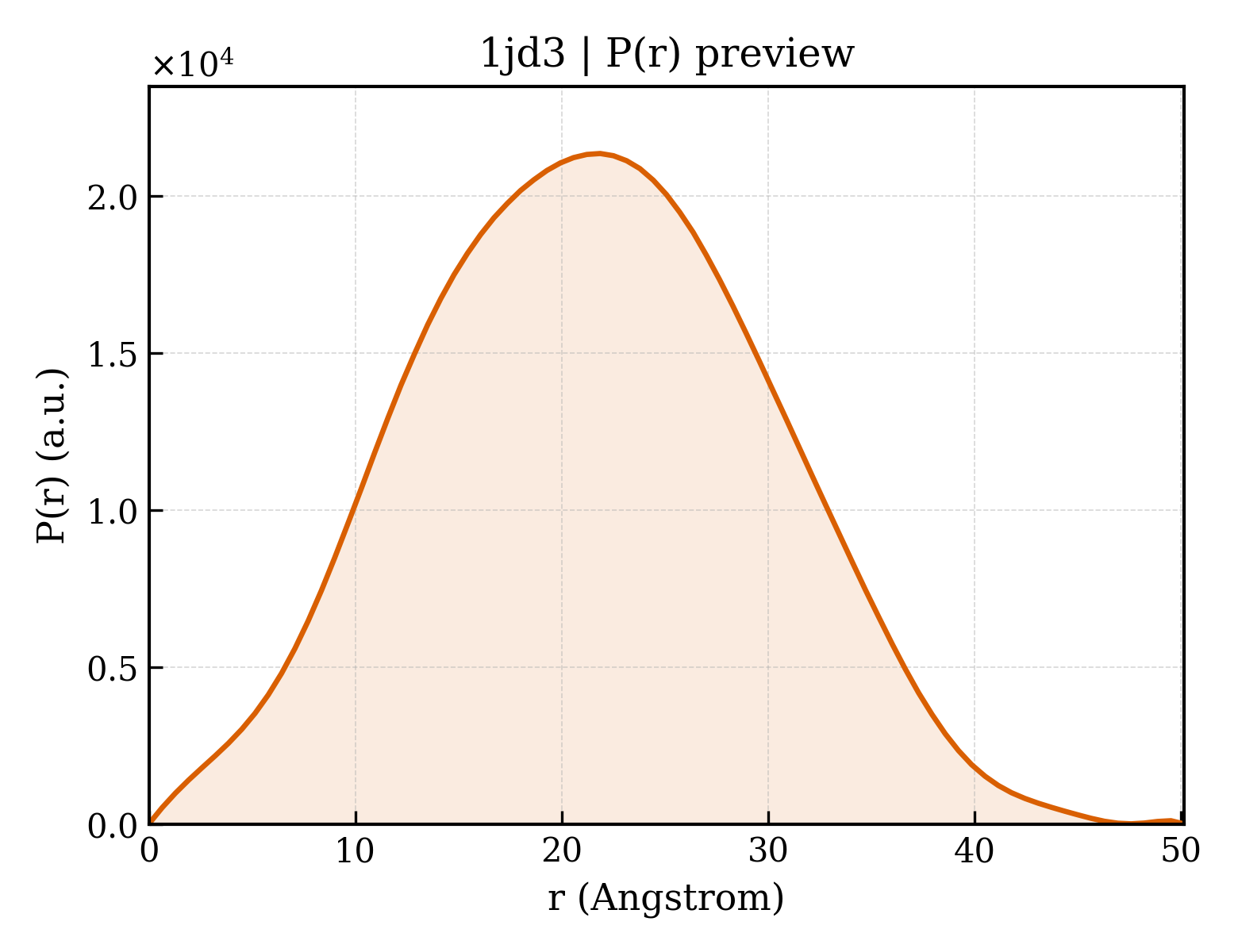

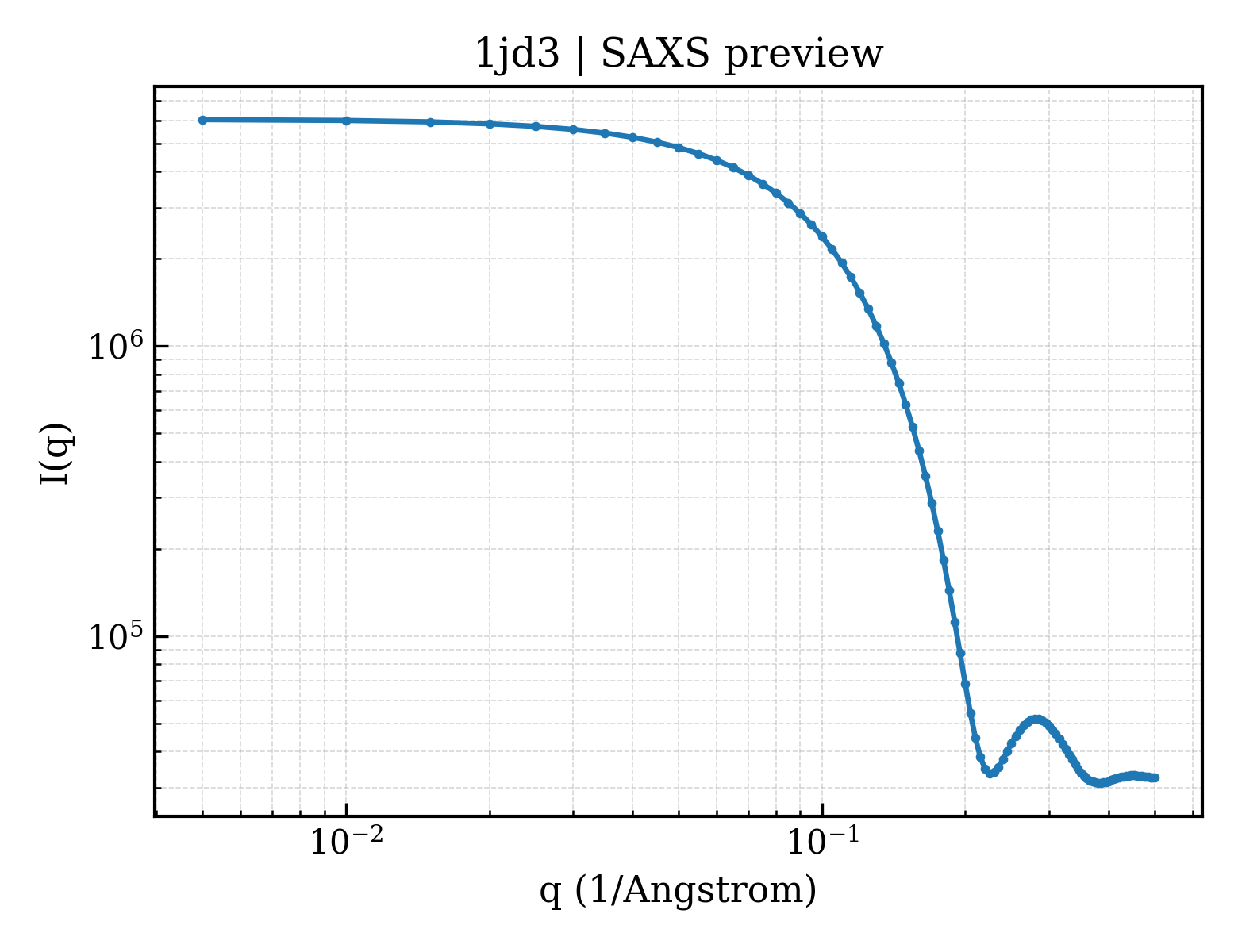

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.42 Å |
| Rg (electron density) | 15.03 Å |
| Total Rg | 16.18 Å |
| Atom count | 1326 |
| Residues | 164 |
| Excluded volume | 23941 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1jd3a_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.190 — Chorismate lyase-like |
| Superfamily Superfamily superfamily | d.190.1 — Chorismate lyase-like |
| Family Family family | d.190.1.1 — Chorismate lyase |
| Domain ID domain_id | 1jd3A00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 1410 — Chorismate lyase |
| Homologous superfamily homologous superfamily | 10 — Chorismate lyase-like |
