SAXSdb — 1jd9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-AMYLASE

Pseudoalteromonas haloplanktis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 25–477	Mutation：K300Q	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；MPD, Hepes, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.50 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1JD9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AQH ALPHA-AMYLASE FROM ALTEROMONAS HALOPLANCTIS Deposited 1997-07-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–477（453 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.00 Å R-free 0.204
1AQM ALPHA-AMYLASE FROM ALTEROMONAS HALOPLANCTIS COMPLEXED WITH TRIS Deposited 1997-07-31	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–477（453 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 1.85 Å R-free 0.186
1B0I ALPHA-AMYLASE FROM ALTEROMONAS HALOPLANCTIS Deposited 1998-11-10	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–477（453 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.40 Å R-free 0.217
1G94 CRYSTAL STRUCTURE ANALYSIS OF THE TERNARY COMPLEX BETWEEN PSYCHROPHILIC ALPHA AMYLASE FROM PSEUDOALTEROMONAS HALOPLANCTIS IN COMPLEX WITH A HEPTA-SACCHARIDE AND A TRIS MOLECULE Deposited 2000-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–472（448 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；MPD, Hepes, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.74 Å R-free 0.187
1G9H TERNARY COMPLEX BETWEEN PSYCHROPHILIC ALPHA-AMYLASE, COMII (PSEUDO TRI-SACCHARIDE FROM BAYER) AND TRIS (2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL) Deposited 2000-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–472（448 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；MPD, Hepes, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.201
1JD7 CRYSTAL STRUCTURE ANALYSIS OF THE MUTANT K300R OF PSEUDOALTEROMONAS HALOPLANCTIS ALPHA-AMYLASE Deposited 2001-06-13	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–477（453 aa）	Mutation：K300R	CA CALCIUM ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；MPD, Hepes, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.25 Å R-free 0.215
1KXH Crystal structure of the complex between an inactive mutant of psychrophilic alpha-amylase (D174N) and acarbose Deposited 2002-01-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–472（448 aa）	Mutation：D174N	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；MPD, hepes, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.188
1L0P CRYSTAL STRUCTURE ANALYSIS OF THE COMPLEX BETWEEN PSYCHROPHILIC ALPHA AMYLASE FROM PSEUDOALTEROMONAS HALOPLANCTIS AND NITRATE Deposited 2002-02-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–472（448 aa）	Not recorded	CA CALCIUM ION × 1 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；MPD, Hepes, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.180
8CQF Crystal Structure of a Chimeric Alpha-Amylase from Pseudoalteromonas Haloplanktis Complexed with Rearranged Acarbose Deposited 2023-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–232（207 aa） Chain A 236–294（59 aa） Chain A 301–471（171 aa）	Mutation：A77V Q204L S226G T227A E228K N231T T232L G270_G271insA A272G G273S N274S V275I I276L D310N T311D D312W Mutation：A77V Q204L S226G T227A E228K N231T T232L G270_G271insA A272G G273S N274S V275I I276L D310N T311D D312W Mutation：A77V Q204L S226G T227A E228K N231T T232L G270_G271insA A272G G273S N274S V275I I276L D310N T311D D312W	CL CHLORIDE ION × 2 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；3 M NaCl, 0.1 M BisTris	Resolution 2.05 Å R-free 0.198
8CQG Crystal Structure of a Chimeric Alpha-Amylase from Pseudoalteromonas Haloplanktis Deposited 2023-03-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–232（208 aa） Chain A 236–294（59 aa） Chain A 302–471（170 aa）	Mutation：A77V Q204L S226G T227A E228K N231T T232L G270_G271insA A272G G273S N274S V275I I276L D310N T311D D312W Mutation：A77V Q204L S226G T227A E228K N231T T232L G270_G271insA A272G G273S N274S V275I I276L D310N T311D D312W Mutation：A77V Q204L S226G T227A E228K N231T T232L G270_G271insA A272G G273S N274S V275I I276L D310N T311D D312W	EDO 1,2-ETHANEDIOL × 11 CL CHLORIDE ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；3 M NaCl, 0.1 M BisTris	Resolution 1.74 Å R-free 0.205

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMY_ALTHA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–453； UniProt 25–477

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jd9
Deposition date deposition_date	2001-06-13
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF THE MUTANT K300Q OF PSEUDOALTEROMONAS HALOPLANCTIS ALPHA-AMYLASE
Keywords keywords	ALPHA-BETA BARREL, GLYCOSYL HYDROLASE, ALLOSTERIC ACTIVATION, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.62 Å
Radius of gyration Rg (electron density) rg_electron	22.48 Å
Forward intensity I(0) i0	43929000.00
Molecular weight molecular_weight	48853.0 kDa
Excluded volume excluded_volume	59844 Å³
Envelope volume envelope_volume	68256 Å³
Hydration-shell volume shell_volume	25531 Å³
Envelope diameter envelope_diameter	81.3 Å
Shell Rg shell_rg	29.40 Å
Envelope Rg envelope_rg	22.62 Å
Shape Rg shape_rg	22.44 Å
Total Rg total_rg	23.33 Å
Total atoms total_atoms	3444
Residues n_residues	448
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.2 Å
Rg (real space) rg_real	23.59 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	4.3930e+07
I(0) uncertainty (real space) i0_real_error	6.3570e+05
Rg (reciprocal space) rg_reciprocal	23.60 Å
I(0) (reciprocal space) i0_reciprocal	43930000.0000
Solution quality estimate total_estimate	0.8760
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.2 Å
Skewness Skewness skewness	0.365
Kurtosis Kurtosis kurtosis	-0.240
Angular range angular_range	— – 0.3350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7238000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.818; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.940

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ALPHA-AMYLASE
Molecular weight formula_weight	49379.8 kDa
EC 编号 ec_number	3.2.1.1
Mutation mutation	K300Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3634

TPTTFVHLFEWNWQDVAQECEQYLGPKGYAAVQVSPPNEHITGSQWWTRYQPVSYELQSRGGNRAQFIDMVNRCSAAGVDIYVDTLINHMAAGSGTGTAGNSFGNKSFPIYSPQDFHESCTINNSDYGNDRYRVQNCELVGLADLDTASNYVQNTIAAYINDLQAIGVKGFRFDASKHVAASDIQSLMAKVNGSPVVFQEVIDQGGEAVGASEYLSTGLVTEFKYSTELGNTFRNGSLAWLSNFGEGWGFMPSSSAVVFVDNHDNQRGHGGAGNVITFEDGRLYDLANVFMLAYPYGYPQVMSSYDFHGDTDAGGPNVPVHNNGNLECFASNWKCEHRWSYIAGGVDFRNNTADNWAVTNWWDNTNNQISFGRGSSGHMAINKEDSTLTATVQTDMASGQYCNVLKGELSADAKSCSGEVITVNSDGTINLNIGAWDAMAIHKNAKLNTSSAS

来源 Source

来源生物 organism	Pseudoalteromonas haloplanktis
NCBI Class编号 ncbi_taxonomy_id	228
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	190

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jd9a1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.1 — alpha-Amylases, C-terminal beta-sheet domain

Domain ID domain_id	d1jd9a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

CATH v4.4 (2 domains)

Domain ID domain_id	1jd9A01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1jd9A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

▶

8. Citations (3)

▶

Unit-cell length a length_a	71.500 Å
Unit-cell length b length_b	138.400 Å
Unit-cell length c length_c	115.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	42.700 Å
R factor r_factor	—
R_work r_work	0.1800
R_free r_free	0.2450

fit	/app/data/saxs_computation/jd/1jd9/1jd9.fit
pddf	/app/data/pr_computation/jd/1jd9/1jd9.pr.out
profile	/app/data/saxs_computation/jd/1jd9/1jd9.dat

CRYSTAL STRUCTURE ANALYSIS OF THE MUTANT K300Q OF PSEUDOALTEROMONAS HALOPLANCTIS ALPHA-AMYLASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-AMYLASE

State in the Current Structure

Other States of the Same Protein in the Database

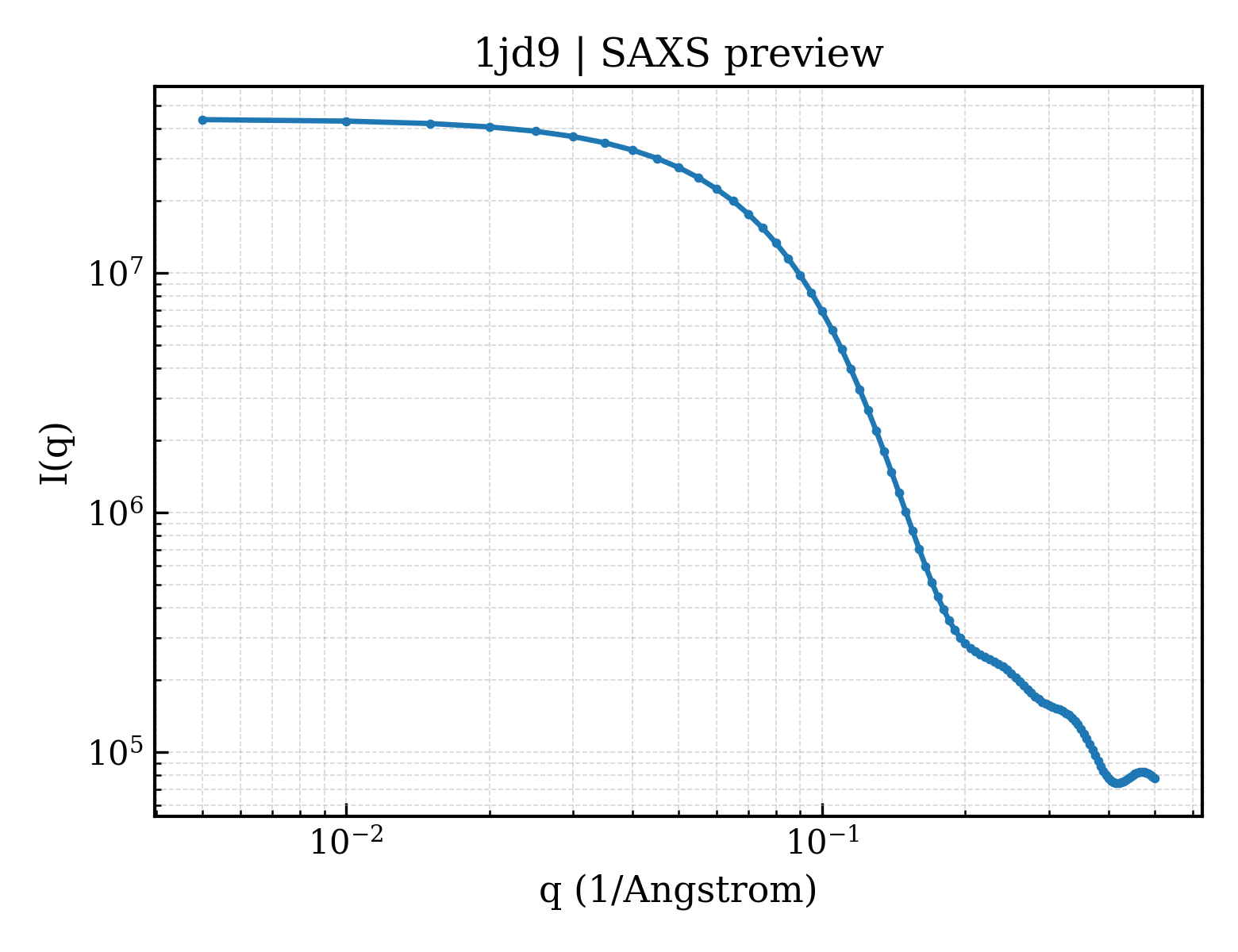

SAXS scattering curve SAXS Profile
