SAXSdb — 1jek

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ENV POLYPROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENV_VILVK
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 2–41； UniProt 693–732 Author chain B； PDBConstruct 2–35； UniProt 775–808

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jek
Deposition date deposition_date	2001-06-18
Structure title title	Visna TM CORE STRUCTURE
Keywords keywords	ENVELOPE GLYCOPROTEIN, RETROVIRUS, HIV, SIV, GP41, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jek__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

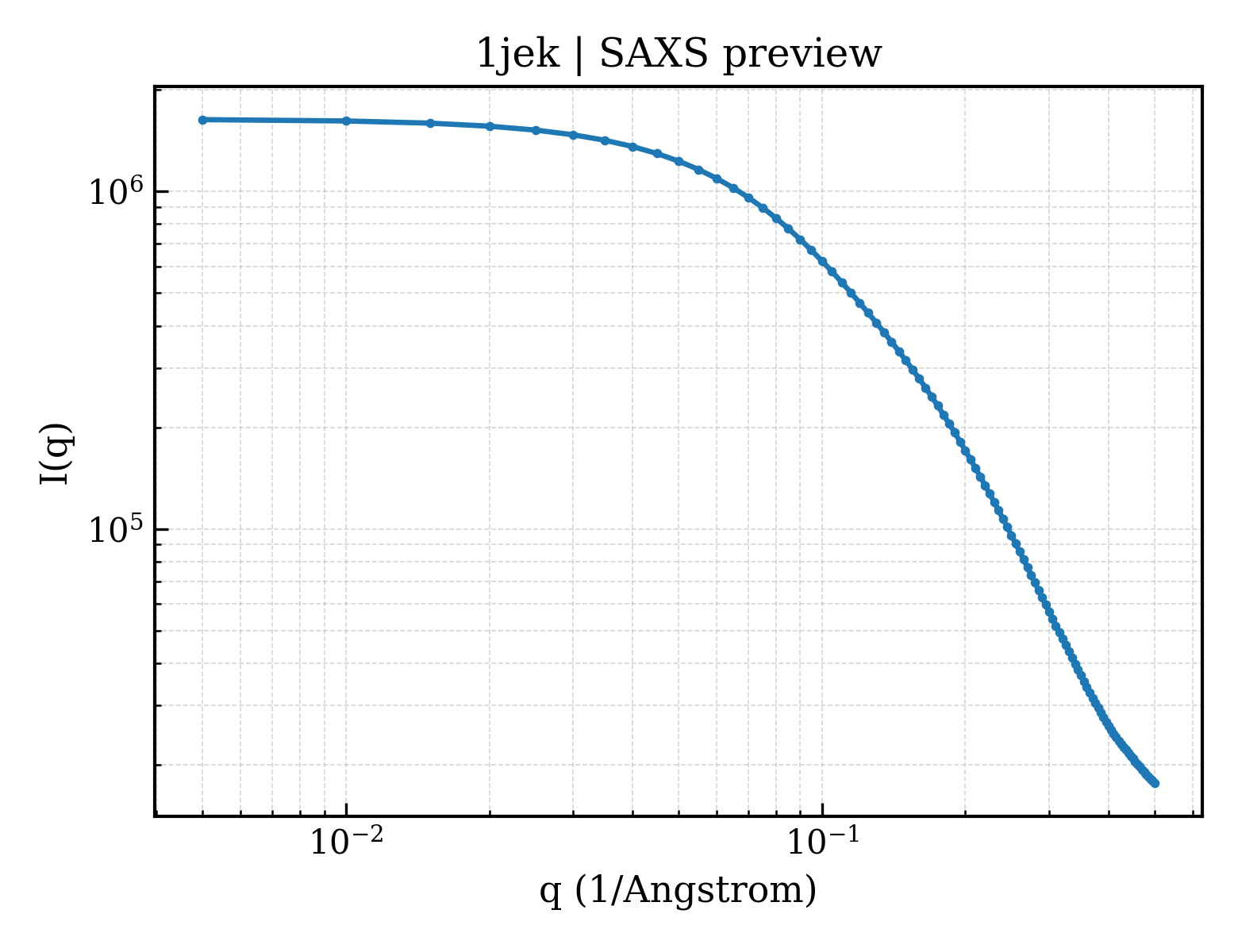

1jek__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jek__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.59 Å
Rg (electron density)	19.46 Å
Total Rg	20.36 Å
Atom count	1794
Residues	222
Excluded volume	31477 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jek__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ENV POLYPROTEIN
Molecular weight formula_weight	4337.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	740

XQSLANATAAQQEVLEASYAMVQHIAKGIRILEARVARVEAX

Entity 2 Entity 2 polymer

Description description	ENV POLYPROTEIN
Molecular weight formula_weight	4126.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XWQQWEEEIEQHEGNLSLLLREAALQVHIAQRDARX

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1jek.1
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.2 — Virus ectodomain
Family Family family	h.3.2.1 — Virus ectodomain

CATH v4.4 (1 domains)

Domain ID domain_id	1jekA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	440 — ATP synthase delta/epsilon subunit, C-terminal domain

▶

Unit-cell length a length_a	52.548 Å
Unit-cell length b length_b	52.548 Å
Unit-cell length c length_c	61.686 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	9.960 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2650
