1jja

CRYSTAL STRUCTURE OF ORTHORHOMBIC FORM OF D90E MUTANT OF ESCHERICHIA COLI L-ASPARAGINASE II

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-ASPARAGINASE II

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASPG2_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–326； UniProt 23–348 Author chain B； PDBConstruct 1–326； UniProt 23–348 Author chain C； PDBConstruct 1–326； UniProt 23–348 Author chain D； PDBConstruct 1–326； UniProt 23–348 Author chain E； PDBConstruct 1–326； UniProt 23–348 Author chain F； PDBConstruct 1–326； UniProt 23–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jja
Deposition date deposition_date	2001-07-04
Structure title title	CRYSTAL STRUCTURE OF ORTHORHOMBIC FORM OF D90E MUTANT OF ESCHERICHIA COLI L-ASPARAGINASE II
Keywords keywords	L-ASPARAGINASE, LEUKEMIA, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jja__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jja__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

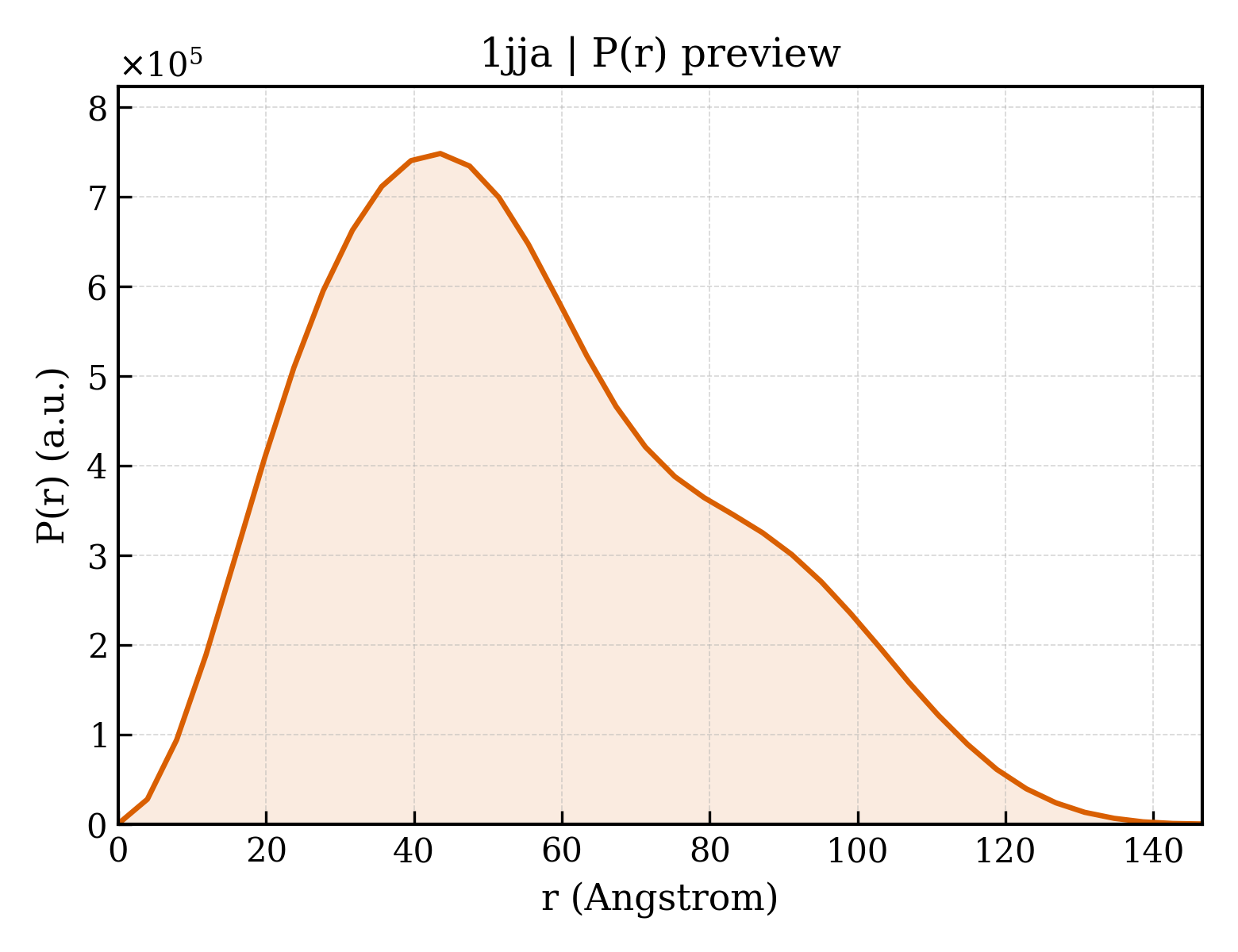

1jja__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.63 Å
Rg (electron density)	29.71 Å
Total Rg	30.59 Å
Atom count	9324
Residues	1246
Excluded volume	165690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jja__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jja__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1jjaa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1jjab_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1jjac_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1jjad_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1jjae_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1jjaf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

CATH v4.4 (12 domains)

Domain ID domain_id	1jjaA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1jjaA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jjaB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1jjaB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jjaC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1jjaC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jjaD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1jjaD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jjaE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1jjaE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jjaF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1jjaF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	225.419 Å
Unit-cell length b length_b	128.049 Å
Unit-cell length c length_c	62.567 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1870
R_work r_work	0.1860
R_free r_free	0.2042

Description description	L-ASPARAGINASE II
Molecular weight formula_weight	34640.8 kDa
EC 编号 ec_number	3.5.1.1
Mutation mutation	D90E
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	14499

CRYSTAL STRUCTURE OF ORTHORHOMBIC FORM OF D90E MUTANT OF ESCHERICHIA COLI L-ASPARAGINASE II

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-ASPARAGINASE II

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1jja__assembly_1__model_1

1jja__assembly_1__model_1 | I(q)

1jja__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

CATH v4.4 (12 domains)

7. Citations (6)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	444
