SAXSdb — 1jjo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NEUROSERPIN

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NEUS_MOUSE
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–40； UniProt 25–64 Author chain B； PDBConstruct 1–40； UniProt 25–64 Author chain C； PDBConstruct 1–261； UniProt 101–361 Author chain D； PDBConstruct 1–261； UniProt 101–361 Author chain E； PDBConstruct 1–31； UniProt 367–397 Author chain F； PDBConstruct 1–31； UniProt 367–397

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jjo
Deposition date deposition_date	2001-07-09
Structure title title	Crystal Structure of Mouse Neuroserpin (Cleaved form)
Keywords keywords	Serpin, Serine protease inhibitor, Neuronal serpin, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jjo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jjo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

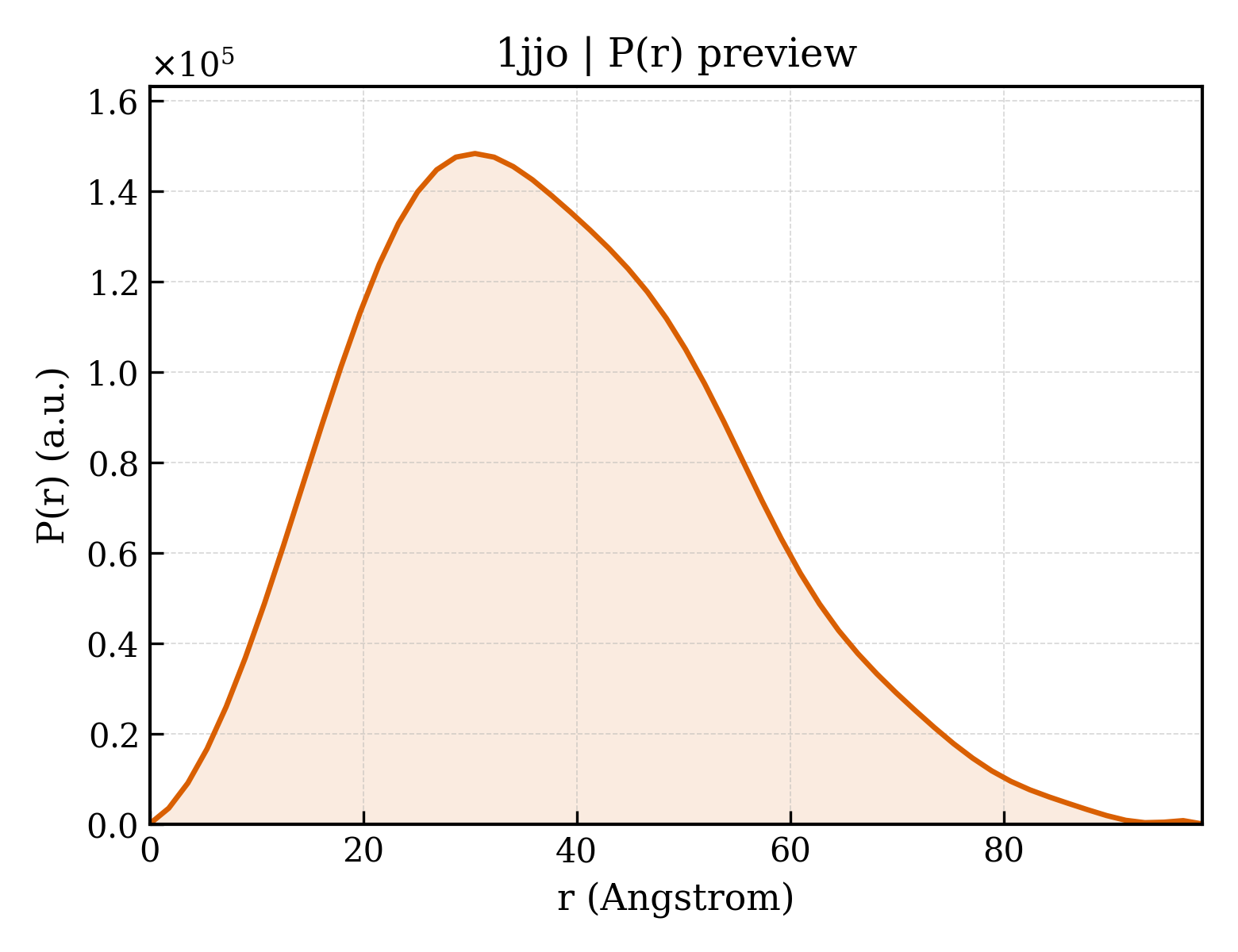

1jjo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.09 Å
Rg (electron density)	28.05 Å
Total Rg	28.56 Å
Atom count	5074
Residues	634
Excluded volume	90491 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jjo__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NEUROSERPIN
Molecular weight formula_weight	4416.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5074

TITEWSVNMYNHLRGTGEDENILFSPLSIALAMGMMELGA

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	NEUROSERPIN
Molecular weight formula_weight	29630.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

ENQYVMKLANSLFVQNGFHVNEEFLQMLKMYFNAEVNHVDFSQNVAVANSINKWVENYTNSLLKDLVSPEDFDGVTNLALINAVYFKGNWKSQFRPENTRTFSFTKDDESEVQIPMMYQQGEFYYGEFSDGSNEAGGIYQVLEIPYEGDEISMMLALSRQEVPLATLEPLLKAQLIEEWANSVKKQKVEVYLPRFTVEQEIDLKDILKALGVTEIFIKDANLTAMSDKKELFLSKAVHKSCIEVNEEGSEAAAASGMIAIS

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	NEUROSERPIN
Molecular weight formula_weight	3969.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

YPQVIVDHPFLYLIRNRKSGIILFMGRVMNPHH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jjo.1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.1 — Serpins
Superfamily Superfamily superfamily	e.1.1 — Serpins
Family Family family	e.1.1.1 — Serpins

Domain ID domain_id	d1jjo.2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.1 — Serpins
Superfamily Superfamily superfamily	e.1.1 — Serpins
Family Family family	e.1.1.1 — Serpins

CATH v4.4 (6 domains)

Domain ID domain_id	1jjoA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	580 — Helix hairpin bin

Domain ID domain_id	1jjoB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	580 — Helix hairpin bin

Domain ID domain_id	1jjoC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

Domain ID domain_id	1jjoC02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

Domain ID domain_id	1jjoD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

Domain ID domain_id	1jjoD02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

▶

Unit-cell length a length_a	64.290 Å
Unit-cell length b length_b	108.690 Å
Unit-cell length c length_c	45.990 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.28 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.060 Å
Low-resolution limit resolution_low	16.890 Å
R factor r_factor	—
R_work r_work	0.2320
R_free r_free	0.3080
