SAXSdb — 1jke

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jke
沉积日期 deposition_date	2001-07-12
结构标题 title	D-Tyr tRNATyr deacylase from Escherichia coli
关键词 keywords	beta-alpha-barrel, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.94 Å
回转半径 Rg (电子) rg_electron	28.16 Å
零角强度 I(0) i0	73873600.00
分子量 molecular_weight	63906.0 kDa
排除体积 excluded_volume	78461 Å³
包络体积 envelope_volume	95935 Å³
水化壳体积 shell_volume	29497 Å³
包络直径 envelope_diameter	101.1 Å
壳层 Rg shell_rg	33.97 Å
包络 Rg envelope_rg	28.19 Å
形状 Rg shape_rg	28.13 Å
总 Rg total_rg	28.81 Å
总原子数 total_atoms	4435
残基数 n_residues	580
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	95.6 Å
Rg (实空间) rg_real	29.09 Å
Rg 误差 (实空间) rg_real_error	0.71 Å
I(0) (实空间) i0_real	7.3870e+07
I(0) 误差 (实空间) i0_real_error	1.0930e+06
Rg (倒空间) rg_reciprocal	29.03 Å
I(0) (倒空间) i0_reciprocal	73870000.0000
解质量估计 total_estimate	0.8547
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.6 Å
偏度 Skewness skewness	0.512
峰度 Kurtosis kurtosis	-0.307
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15740000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.787; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.894; Smooth: 0.851

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	D-Tyr-tRNATyr deacylase
分子量 formula_weight	15965.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	4890

MIALIQRVTRASVTVEGEVTGEIGAGLLVLLGVEKDDDEQKANRLCERVLGYRIFSDAEGKMNLNVQQAGGSVLVVSQFTLAADTERGMRPSFSKGASPDRAEALYDYFVERCRQQEMNTQTGRFAADMQVSLVNDGPVTFWLQV

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	419

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1jkea_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.110 — DTD-like
超家族 Superfamily superfamily	c.110.1 — DTD-like
家族 Family family	c.110.1.1 — DTD-like

结构域编号 domain_id	d1jkeb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.110 — DTD-like
超家族 Superfamily superfamily	c.110.1 — DTD-like
家族 Family family	c.110.1.1 — DTD-like

结构域编号 domain_id	d1jkec_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.110 — DTD-like
超家族 Superfamily superfamily	c.110.1 — DTD-like
家族 Family family	c.110.1.1 — DTD-like

结构域编号 domain_id	d1jked_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.110 — DTD-like
超家族 Superfamily superfamily	c.110.1 — DTD-like
家族 Family family	c.110.1.1 — DTD-like

CATH v4.4 (4 domains)

结构域编号 domain_id	1jkeA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	80 — D-tyrosyl-trna(Tyr) Deacylase; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — D-tyrosyl-tRNA(Tyr) deacylase

结构域编号 domain_id	1jkeB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	80 — D-tyrosyl-trna(Tyr) Deacylase; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — D-tyrosyl-tRNA(Tyr) deacylase

结构域编号 domain_id	1jkeC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	80 — D-tyrosyl-trna(Tyr) Deacylase; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — D-tyrosyl-tRNA(Tyr) deacylase

结构域编号 domain_id	1jkeD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	80 — D-tyrosyl-trna(Tyr) Deacylase; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — D-tyrosyl-tRNA(Tyr) deacylase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	118.300 Å
晶胞边长 b length_b	82.930 Å
晶胞边长 c length_c	83.510 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	128.29 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.550 Å
最低分辨率 resolution_low	500.000 Å
R 因子 r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2280

fit	/app/data/saxs_computation/jk/1jke/1jke.fit
pddf	/app/data/pr_computation/jk/1jke/1jke.pr.out
profile	/app/data/saxs_computation/jk/1jke/1jke.dat

D-Tyr tRNATyr deacylase from Escherichia coli

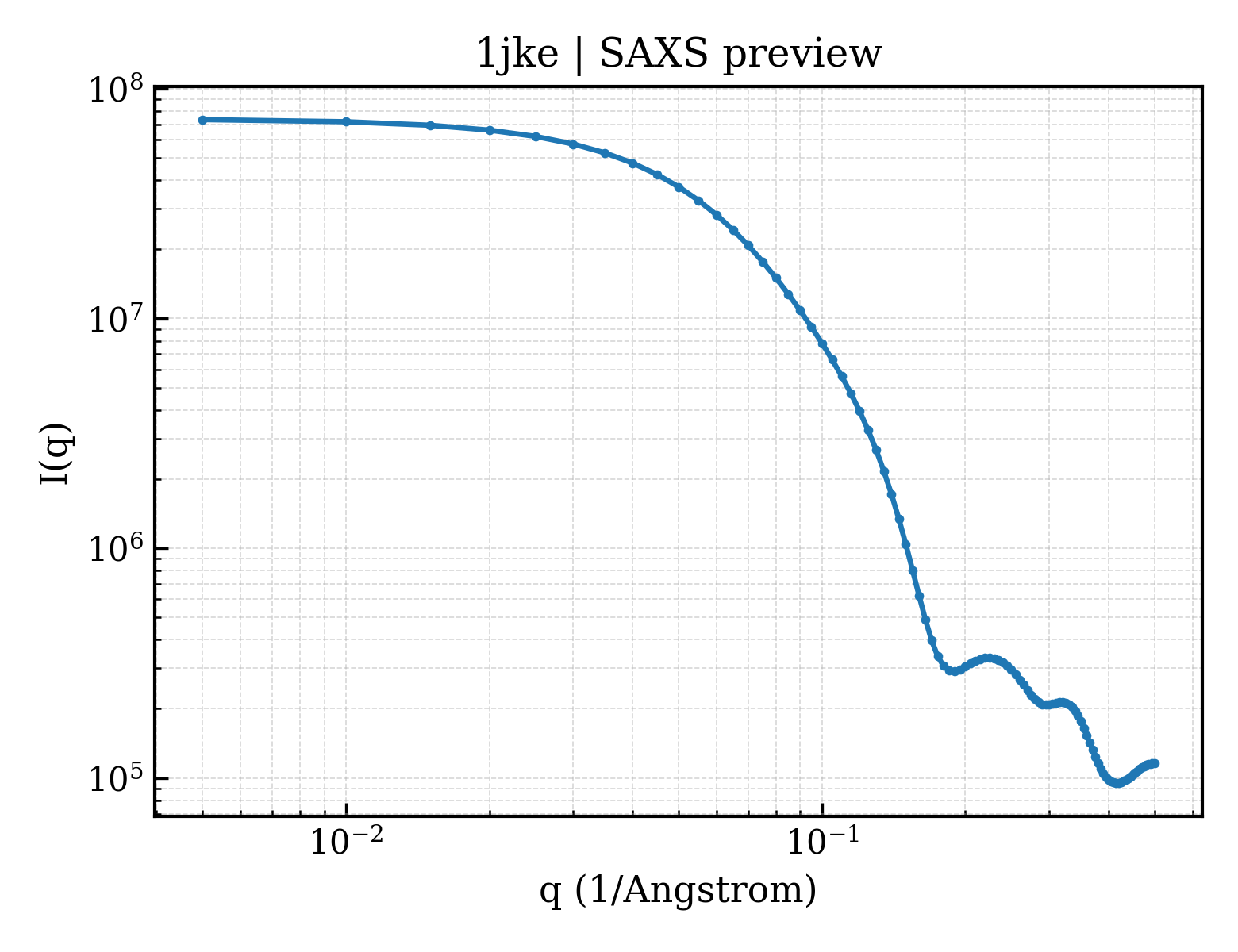

SAXS 散射曲线 SAXS Profile

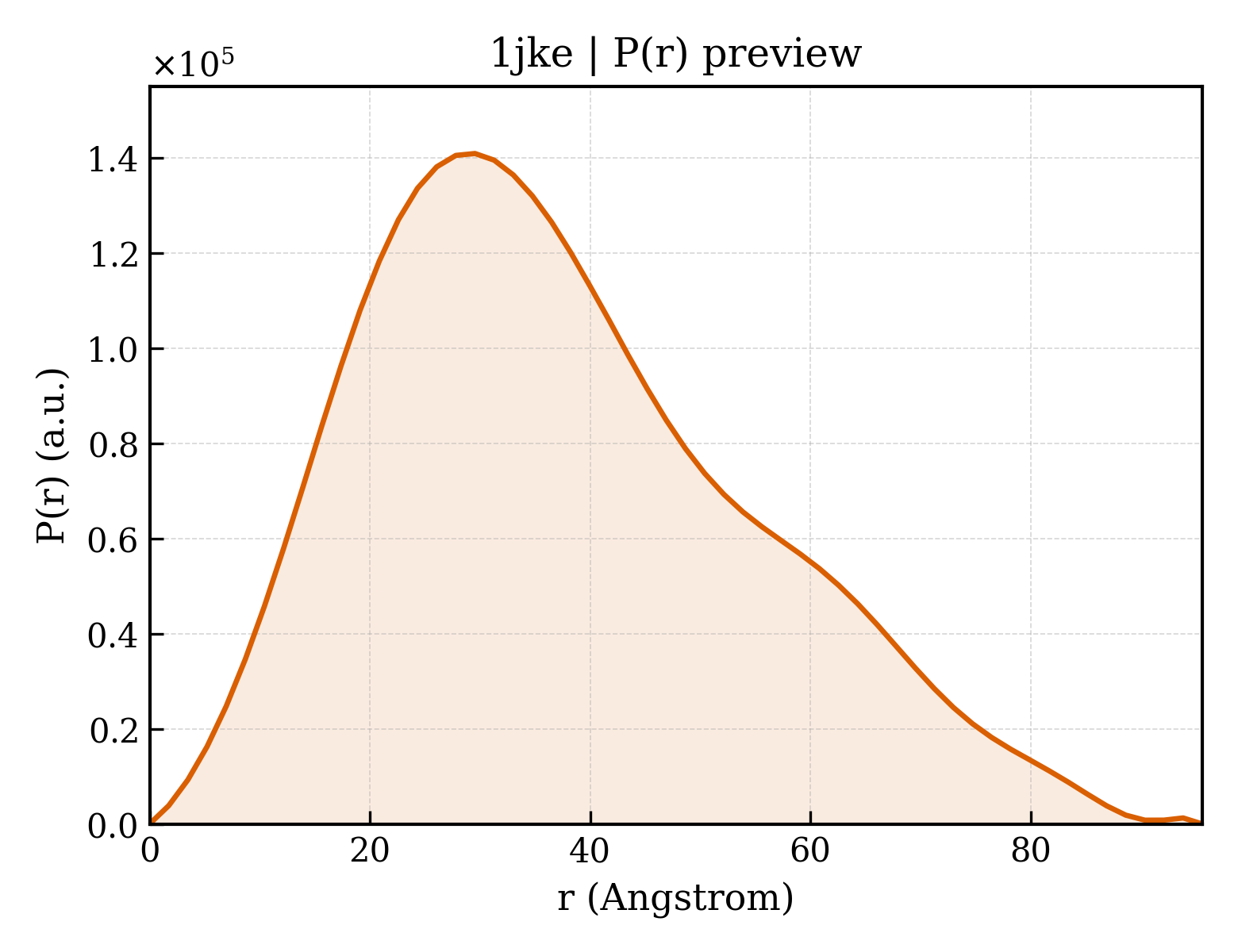

P(r) 距离分布 P(r) Distribution
