SAXSdb — 1jl9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EPIDERMAL GROWTH FACTOR

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EGF_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–51； UniProt 971–1021 Author chain B； PDBConstruct 1–51； UniProt 971–1021

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jl9
Deposition date deposition_date	2001-07-16
Structure title title	Crystal Structure of Human Epidermal Growth Factor
Keywords keywords	Dimerization, Growth factor, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jl9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

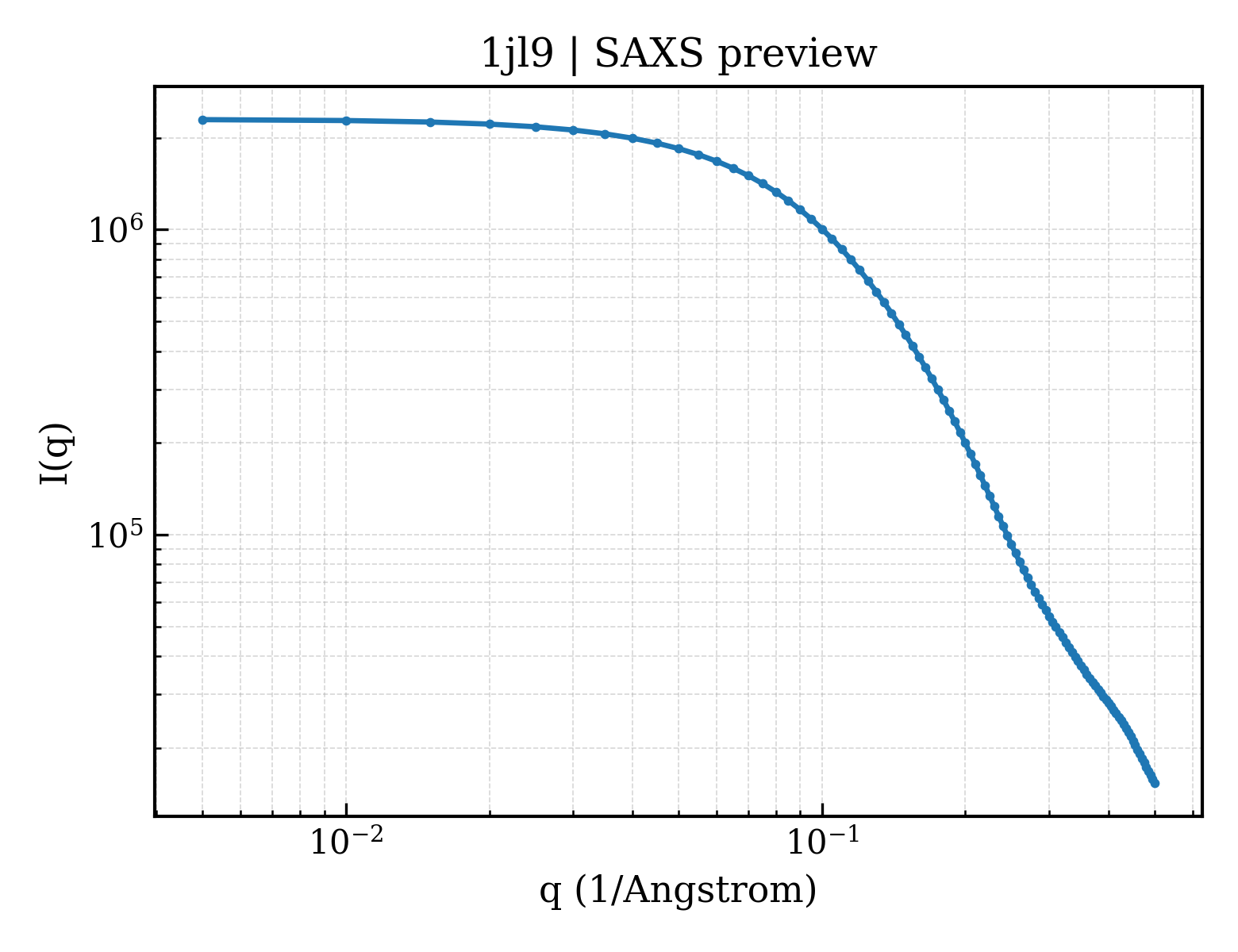

1jl9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jl9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.21 Å
Rg (electron density)	16.03 Å
Total Rg	16.78 Å
Atom count	697
Residues	87
Excluded volume	12302 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jl9__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jl9a_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.11 — EGF/Laminin
Family Family family	g.3.11.1 — EGF-type module

Domain ID domain_id	d1jl9b_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.11 — EGF/Laminin
Family Family family	g.3.11.1 — EGF-type module

CATH v4.4 (2 domains)

Domain ID domain_id	1jl9A00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	25 — Laminin
Homologous superfamily homologous superfamily	10 — Laminin

Domain ID domain_id	1jl9B00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	25 — Laminin
Homologous superfamily homologous superfamily	10 — Laminin

▶

Unit-cell length a length_a	61.430 Å
Unit-cell length b length_b	61.430 Å
Unit-cell length c length_c	87.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2310
R_free r_free	0.2830

Description description	EPIDERMAL GROWTH FACTOR
Molecular weight formula_weight	5958.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	704

Crystal Structure of Human Epidermal Growth Factor

1. Protein Identity and Related Structures Protein Identity & Related Structures

EPIDERMAL GROWTH FACTOR

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1jl9__assembly_1__model_1

1jl9__assembly_1__model_1 | I(q)

1jl9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7
