1jlh

Human Glucose-6-phosphate Isomerase

Method: X-RAY DIFFRACTION D_max: 190.5 Å Quality: REASONABLE

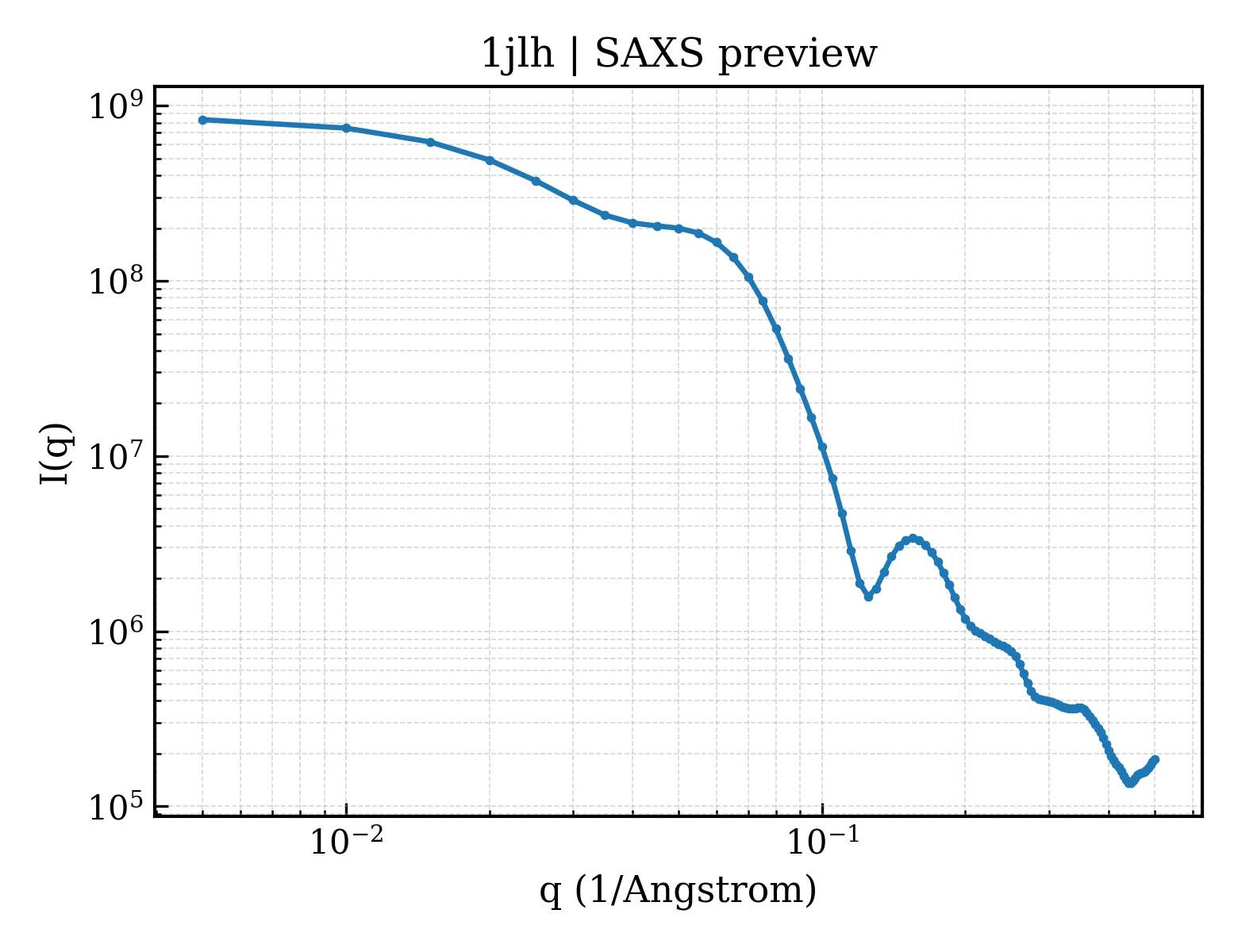

SAXS 散射曲线 SAXS Profile

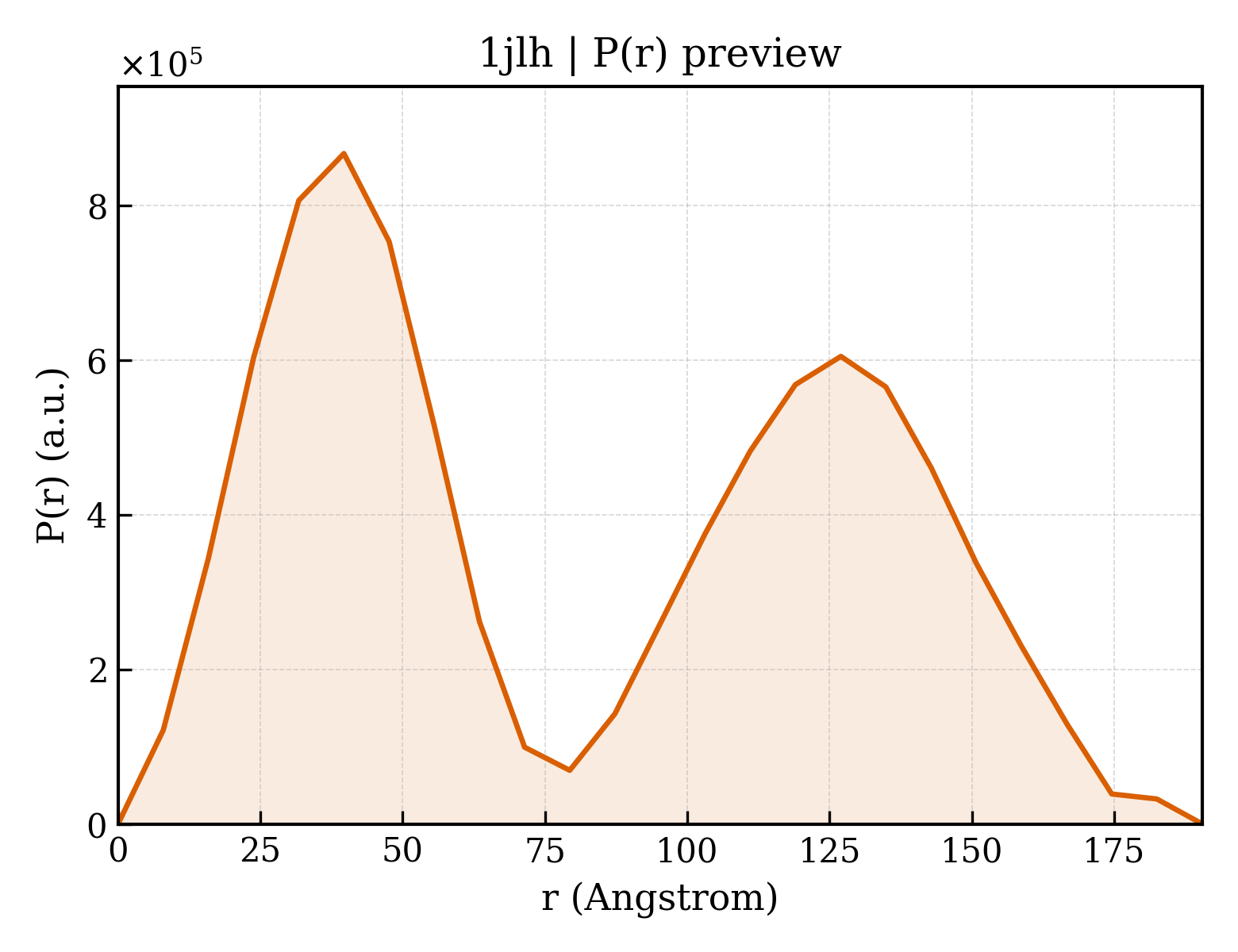

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jlh
沉积日期 deposition_date	2001-07-16
结构标题 title	Human Glucose-6-phosphate Isomerase
关键词 keywords	glycolysis, glyconeogenesis, isomerase; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.25 Å
回转半径 Rg (电子) rg_electron	66.69 Å
零角强度 I(0) i0	864744000.00
分子量 molecular_weight	251490.0 kDa
排除体积 excluded_volume	315320 Å³
包络体积 envelope_volume	455140 Å³
水化壳体积 shell_volume	54543 Å³
包络直径 envelope_diameter	203.3 Å
壳层 Rg shell_rg	76.41 Å
包络 Rg envelope_rg	62.98 Å
形状 Rg shape_rg	66.67 Å
总 Rg total_rg	66.90 Å
总原子数 total_atoms	17748
残基数 n_residues	2224
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	190.5 Å
Rg (实空间) rg_real	67.13 Å
Rg 误差 (实空间) rg_real_error	2.29 Å
I(0) (实空间) i0_real	8.6470e+08
I(0) 误差 (实空间) i0_real_error	1.8840e+07
Rg (倒空间) rg_reciprocal	65.27 Å
I(0) (倒空间) i0_reciprocal	861700000.0000
解质量估计 total_estimate	0.5646
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.7 Å
偏度 Skewness skewness	0.168
峰度 Kurtosis kurtosis	-1.437
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	253400000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.012; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.302; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	phosphoglucose isomerase
分子量 formula_weight	63229.9 kDa
EC 编号 ec_number	5.3.1.9
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	19037

MAALTRDPQFQKLQQWYREHRSELNLRRLFDANKDRFNHFSLTLNTNHGHILVDYSKNLVTEDVMRMLVDLAKSRGVEAARERMFNGEKINYTEGRAVLHVALRNRSNTPILVDGKDVMPEVNKVLDKMKSFCQRVRSGDWKGYTGKTITDVINIGIGGSDLGPLMVTEALKPYSSGGPRVWYVSNIDGTHIAKTLAQLNPESSLFIIASKTFTTQETITNAETAKEWFLQAAKDPSAVAKHFVALSTNTTKVKEFGIDPQNMFEFWDWVGGRYSLWSAIGLSIALHVGFDNFEQLLSGAHWMDQHFRTTPLEKNAPVLLALLGIWYINCFGCETHAMLPYDQYLHRFAAYFQQGDMESNGKYITKSGTRVDHQTGPIVWGEPGTNGQHAFYQLIHQGTEMIPCDFLIPVQTQHPIRKGLHHKILLANFLAQTEALMRGKSTEEARKELQAAGKSPEDLERLLPHKVFEGNRPTNSIVFTKLTPFMLGALVAMYEHKIFVQGIIWDINSFDQWGVELGKQLAKKIEPELDGSAQVTSHDASTNGLINFIKQQREARVQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1289

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1jlha_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.80 — SIS domain
超家族 Superfamily superfamily	c.80.1 — SIS domain
家族 Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

结构域编号 domain_id	d1jlhb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.80 — SIS domain
超家族 Superfamily superfamily	c.80.1 — SIS domain
家族 Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

结构域编号 domain_id	d1jlhc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.80 — SIS domain
超家族 Superfamily superfamily	c.80.1 — SIS domain
家族 Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

结构域编号 domain_id	d1jlhd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.80 — SIS domain
超家族 Superfamily superfamily	c.80.1 — SIS domain
家族 Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

CATH v4.4 (12 domains)

结构域编号 domain_id	1jlhA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1jlhB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1jlhC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1jlhD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1jlhD03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	80.750 Å
晶胞边长 b length_b	108.021 Å
晶胞边长 c length_c	271.073 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	22.210 Å
R 因子 r_factor	—
R_work r_work	0.1970
R_free r_free	0.2370
