SAXSdb — 1jly

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AGGLUTININ

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q71QF2_AMACA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–304； UniProt 2–304 Author chain B； PDBConstruct 2–304； UniProt 2–304

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jly
Deposition date deposition_date	1997-07-23
Structure title title	CRYSTAL STRUCTURE OF AMARANTHUS CAUDATUS AGGLUTININ
Keywords keywords	LECTIN, AGGLUTININ, T-DISACCHARIDE HOMODIMER, BIVALENT; LECTIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jly__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jly__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

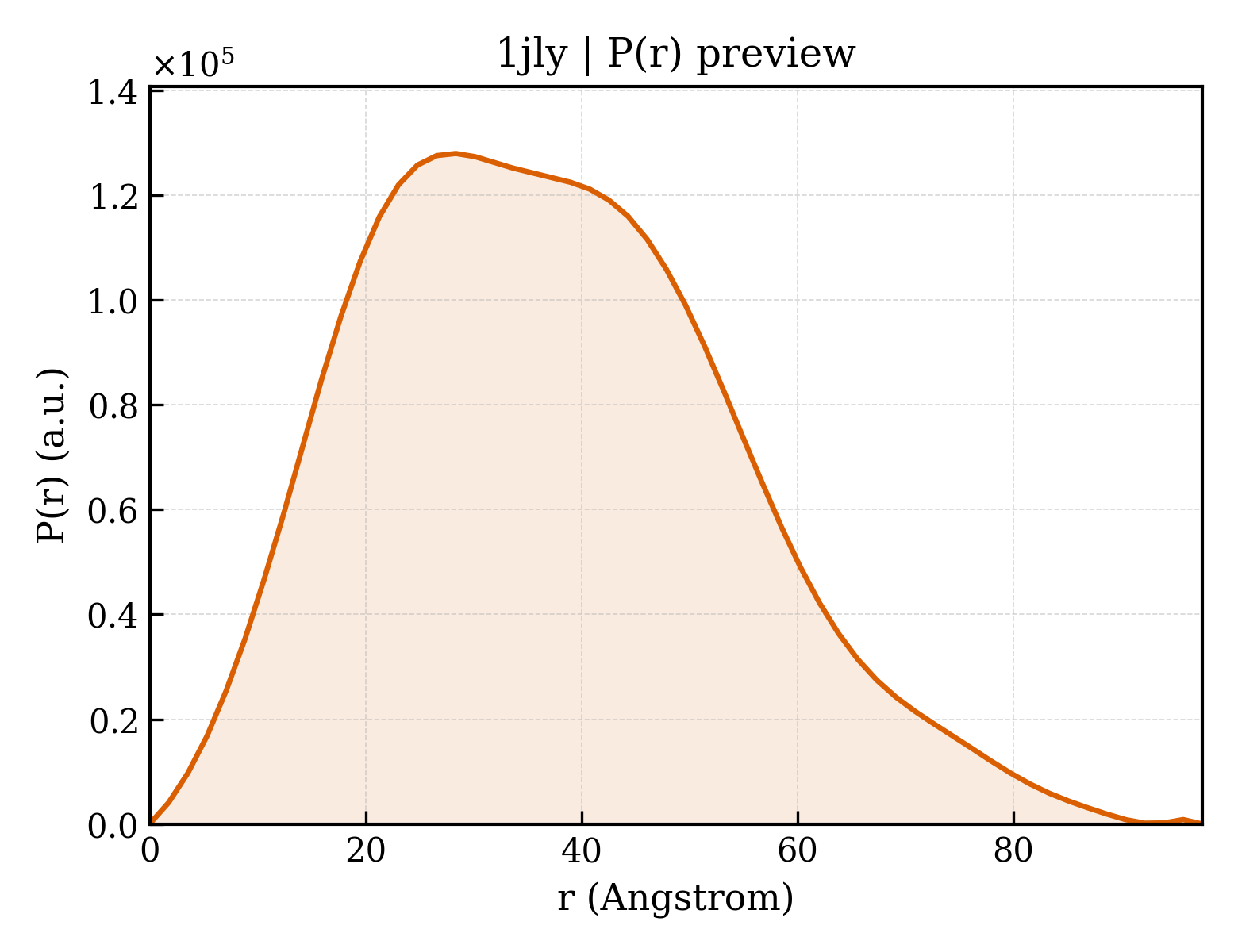

1jly__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.68 Å
Rg (electron density)	27.98 Å
Total Rg	28.69 Å
Atom count	4856
Residues	598
Excluded volume	86406 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jly__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1jlya1
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.3 — Agglutinin
Family Family family	b.42.3.1 — Agglutinin

Domain ID domain_id	d1jlya2
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.3 — Agglutinin
Family Family family	b.42.3.1 — Agglutinin

Domain ID domain_id	d1jlyb1
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.3 — Agglutinin
Family Family family	b.42.3.1 — Agglutinin

Domain ID domain_id	d1jlyb2
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.3 — Agglutinin
Family Family family	b.42.3.1 — Agglutinin

CATH v4.4 (4 domains)

Domain ID domain_id	1jlyA01
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	1jlyA02
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	1jlyB01
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	1jlyB02
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	111.300 Å
Unit-cell length b length_b	99.100 Å
Unit-cell length c length_c	66.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1740
R_work r_work	0.1740
R_free r_free	0.2460

Description description	AGGLUTININ
Molecular weight formula_weight	34824.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5188

CRYSTAL STRUCTURE OF AMARANTHUS CAUDATUS AGGLUTININ

1. Protein Identity and Related Structures Protein Identity & Related Structures

AGGLUTININ

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1jly__assembly_1__model_1

1jly__assembly_1__model_1 | I(q)

1jly__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (2)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	332
