1jq3

Crystal Structure of Spermidine Synthase in Complex with Transition State Analogue AdoDATO

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spermidine synthase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	S-ADENOSYL-1,8-DIAMINO-3-THIOOCTANE × 3 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPEE_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–296； UniProt 1–296 Author chain B； PDBConstruct 1–296； UniProt 1–296 Author chain C； PDBConstruct 1–296； UniProt 1–296 Author chain D； PDBConstruct 1–296； UniProt 1–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jq3
Deposition date deposition_date	2001-08-03
Structure title title	Crystal Structure of Spermidine Synthase in Complex with Transition State Analogue AdoDATO
Keywords keywords	;aminopropyltransferase, homo-tetramer, thermophyle, transition-state analogue, beta-barrel, Structural Genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jq3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jq3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

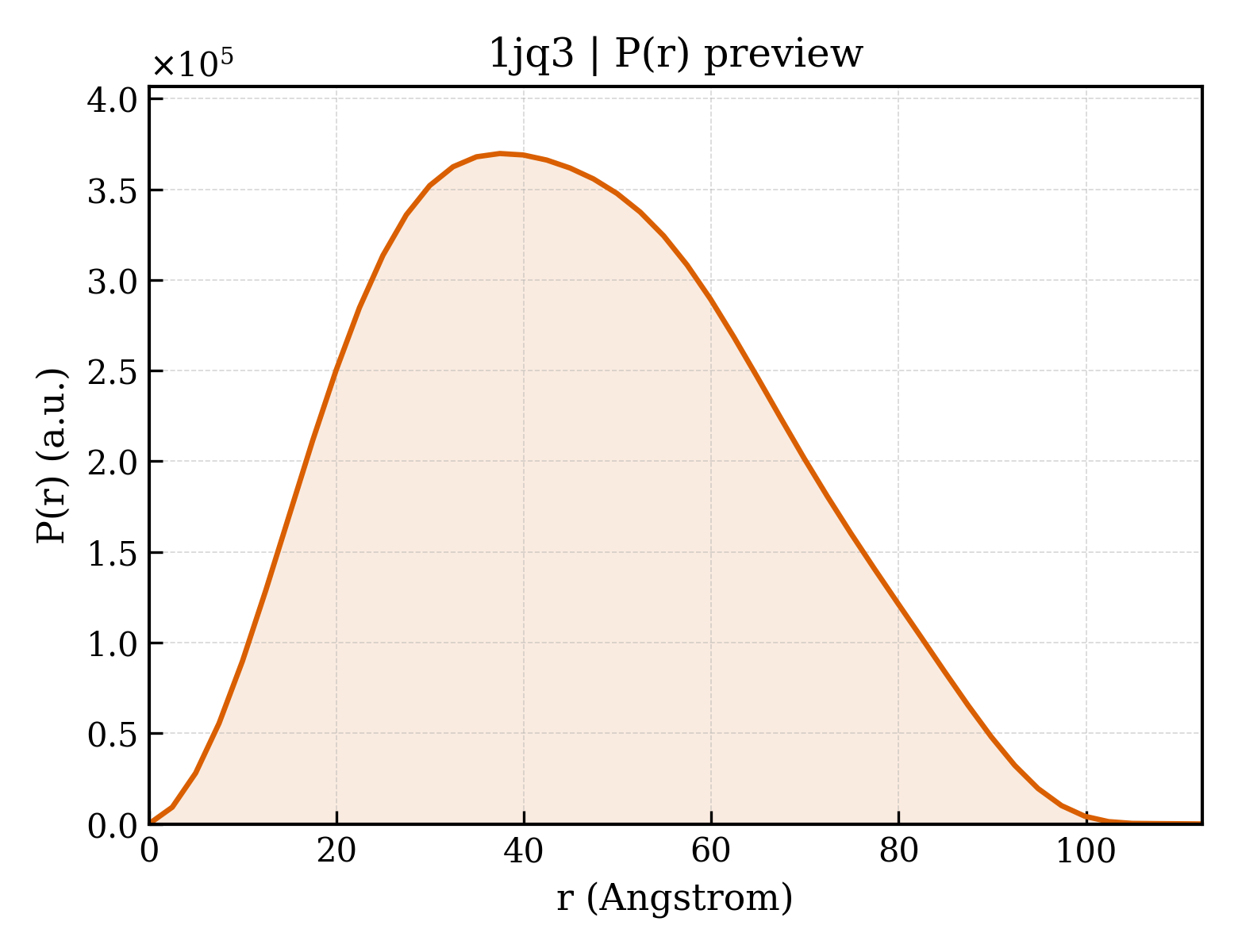

1jq3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.15 Å
Rg (electron density)	34.64 Å
Total Rg	35.18 Å
Atom count	9571
Residues	1167
Excluded volume	171220 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jq3__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Spermidine synthase
Molecular weight formula_weight	34184.0 kDa
EC 编号 ec_number	2.5.1.16
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10314

MRTLKELERELQPRQHLWYFEYYTGNNVGLFMKMNRVIYSGQSDIQRIDIFENPDLGVVFALDGITMTTEKDEFMYHEMLAHVPMFLHPNPKKVLIIGGGDGGTLREVLKHDSVEKAILCEVDGLVIEAARKYLKQTSCGFDDPRAEIVIANGAEYVRKFKNEFDVIIIDSTDPTAGQGGHLFTEEFYQACYDALKEDGVFSAETEDPFYDIGWFKLAYRRISKVFPITRVYLGFMTTYPSGMWSYTFASKGIDPIKDFDPEKVRKFNKELKYYNEEVHVASFALPNFVKKELGLM

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	S-ADENOSYL-1,8-DIAMINO-3-THIOOCTANE
Molecular weight formula_weight	423.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	743

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1jq3a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.17 — Spermidine synthase

Domain ID domain_id	d1jq3b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.17 — Spermidine synthase

Domain ID domain_id	d1jq3c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.17 — Spermidine synthase

Domain ID domain_id	d1jq3d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.17 — Spermidine synthase

CATH v4.4 (8 domains)

Domain ID domain_id	1jq3A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1jq3A02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	140 — Spermidine Synthase; Chain: A, domain 2
Homologous superfamily homologous superfamily	10 — Spermidine synthase, tetramerisation domain

Domain ID domain_id	1jq3B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1jq3B02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	140 — Spermidine Synthase; Chain: A, domain 2
Homologous superfamily homologous superfamily	10 — Spermidine synthase, tetramerisation domain

Domain ID domain_id	1jq3C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1jq3C02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	140 — Spermidine Synthase; Chain: A, domain 2
Homologous superfamily homologous superfamily	10 — Spermidine synthase, tetramerisation domain

Domain ID domain_id	1jq3D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1jq3D02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	140 — Spermidine Synthase; Chain: A, domain 2
Homologous superfamily homologous superfamily	10 — Spermidine synthase, tetramerisation domain

▶

Unit-cell length a length_a	132.519 Å
Unit-cell length b length_b	198.020 Å
Unit-cell length c length_c	51.731 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	46.380 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2290
