1jqb

Alcohol Dehydrogenase from Clostridium Beijerinckii: Crystal Structure of Mutant with Enhanced Thermal Stability

Method: X-RAY DIFFRACTION D_max: 95.6 Å Quality: EXCELLENT

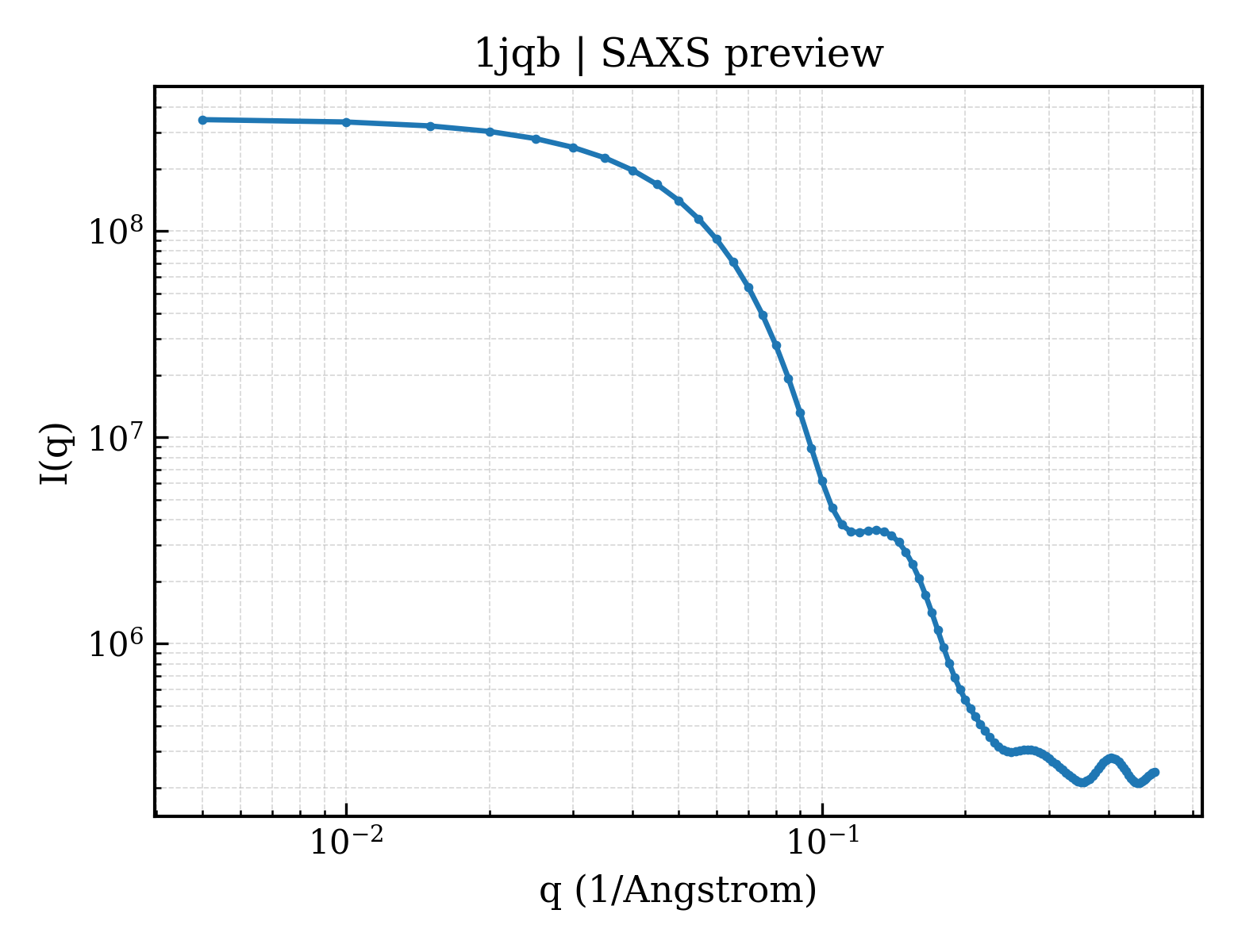

SAXS 散射曲线 SAXS Profile

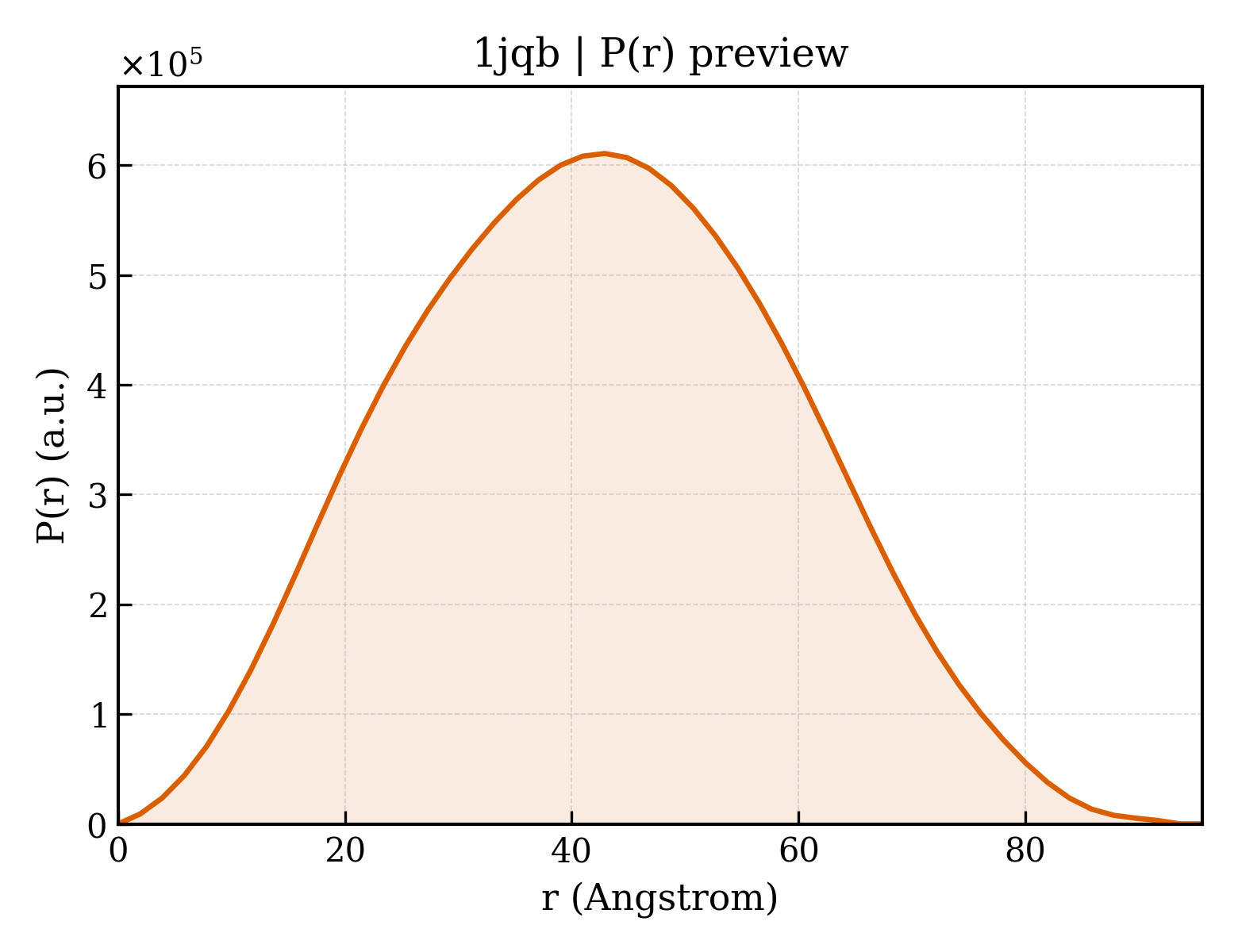

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jqb
沉积日期 deposition_date	2001-08-05
结构标题 title	Alcohol Dehydrogenase from Clostridium Beijerinckii: Crystal Structure of Mutant with Enhanced Thermal Stability
关键词 keywords	tetramer of 222 symmetry, water-mediated intersubunit salt bridges, rossmann fold, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.56 Å
回转半径 Rg (电子) rg_electron	31.99 Å
零角强度 I(0) i0	349711000.00
分子量 molecular_weight	151450.0 kDa
排除体积 excluded_volume	190080 Å³
包络体积 envelope_volume	224630 Å³
水化壳体积 shell_volume	55737 Å³
包络直径 envelope_diameter	99.8 Å
壳层 Rg shell_rg	41.06 Å
包络 Rg envelope_rg	31.89 Å
形状 Rg shape_rg	32.03 Å
总 Rg total_rg	32.51 Å
总原子数 total_atoms	10593
残基数 n_residues	1404
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	95.6 Å
Rg (实空间) rg_real	32.29 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	3.4970e+08
I(0) 误差 (实空间) i0_real_error	4.7030e+06
Rg (倒空间) rg_reciprocal	32.41 Å
I(0) (倒空间) i0_reciprocal	349700000.0000
解质量估计 total_estimate	0.9001
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	42.9 Å
偏度 Skewness skewness	0.079
峰度 Kurtosis kurtosis	-0.556
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	176800000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.836

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	NADP-dependent Alcohol Dehydrogenase
分子量 formula_weight	37862.0 kDa
EC 编号 ec_number	1.1.1.2
突变 mutation	Q165E,M304R,V224E,S254K
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	11004

MKGFAMLGINKLGWIEKERPVAGSYDAIVRPLAVSPCTSDIHTVFEGALGDRKNMILGHEAVGEVVEVGSEVKDFKPGDRVIVPCTTPDWRSLEVQAGFQQHSNGMLAGWKFSNFKDGVFGEYFHVNDADMNLAILPKDMPLENAVMITDMMTTGFHGAELADIEMGSSVVVIGIGAVGLMGIAGAKLRGAGRIIGVGSRPICVEAAKFYGATDILNYKNGHIEDQVMKLTNGKGVDRVIMAGGGSETLSQAVKMVKPGGIISNINYHGSGDALLIPRVEWGCGMAHKTIKGGLCPGGRLRAERLRDMVVYNRVDLSKLVTHVYHGFDHIEEALLLMKDKPKDLIKAVVIL

来源 Source

来源生物 organism	Clostridium beijerinckii
NCBI 分类编号 ncbi_taxonomy_id	1520
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	411

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1jqba1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.35 — GroES-like
超家族 Superfamily superfamily	b.35.1 — GroES-like
家族 Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1jqba2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1jqbb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.35 — GroES-like
超家族 Superfamily superfamily	b.35.1 — GroES-like
家族 Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1jqbb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1jqbc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.35 — GroES-like
超家族 Superfamily superfamily	b.35.1 — GroES-like
家族 Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1jqbc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1jqbd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.35 — GroES-like
超家族 Superfamily superfamily	b.35.1 — GroES-like
家族 Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1jqbd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1jqbA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

结构域编号 domain_id	1jqbA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1jqbB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

结构域编号 domain_id	1jqbB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1jqbC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

结构域编号 domain_id	1jqbC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1jqbD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

结构域编号 domain_id	1jqbD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	86.700 Å
晶胞边长 b length_b	147.800 Å
晶胞边长 c length_c	125.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.970 Å
最低分辨率 resolution_low	20.010 Å
R 因子 r_factor	0.2190
R_work r_work	0.2190
R_free r_free	0.2470
