SAXSdb — 1jqo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

phosphoenolpyruvate carboxylase

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAPP1_MAIZE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–970； UniProt 1–970 Author chain B； PDBConstruct 1–970； UniProt 1–970

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jqo
Deposition date deposition_date	2001-08-07
Structure title title	Crystal structure of C4-form phosphoenolpyruvate carboxylase from maize
Keywords keywords	BETA BARREL, Carbon dioxide fixation, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jqo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

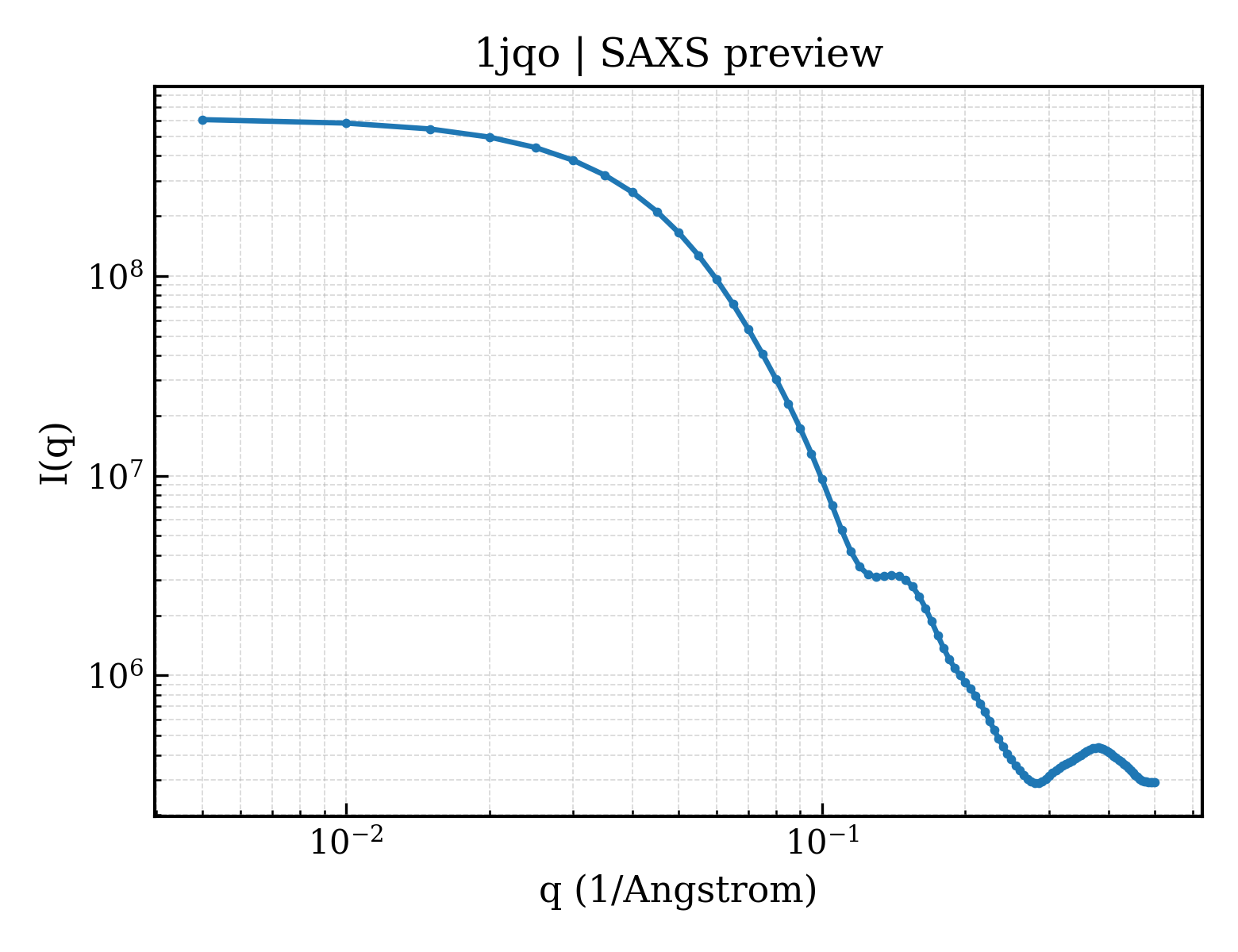

1jqo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jqo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.32 Å
Rg (electron density)	55.18 Å
Total Rg	55.27 Å
Atom count	28868
Residues	3616
Excluded volume	514710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jqo__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jqo__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	phosphoenolpyruvate carboxylase
Molecular weight formula_weight	109436.0 kDa
EC 编号 ec_number	4.1.1.31
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	14434

MASTKAPGPGEKHHSIDAQLRQLVPGKVSEDDKLIEYDALLVDRFLNILQDLHGPSLREFVQECYEVSADYEGKGDTTKLGELGAKLTGLAPADAILVASSILHMLNLANLAEEVQIAHRRRNSKLKKGGFADEGSATTESDIEETLKRLVSEVGKSPEEVFEALKNQTVDLVFTAHPTQSARRSLLQKNARIRNCLTQLNAKDITDDDKQELDEALQREIQAAFRTDEIRRAQPTPQAEMRYGMSYIHETVWKGVPKFLRRVDTALKNIGINERLPYNVSLIRFSSWMGGDRDGNPRVTPEVTRDVCLLARMMAANLYIDQIEELMFELSMWRCNDELRVRAEELHSSSGSKVTKYYIEFWKQIPPNEPYRVILGHVRDKLYNTRERARHLLASGVSEISAESSFTSIEEFLEPLELCYKSLCDCGDKAIADGSLLDLLRQVFTFGLSLVKLDIRQESERHTDVIDAITTHLGIGSYREWPEDKRQEWLLSELRGKRPLLPPDLPQTDEIADVIGAFHVLAELPPDSFGPYIISMATAPSDVLAVELLQRECGVRQPLPVVPLFERLADLQSAPASVERLFSVDWYMDRIKGKQQVMVGYSDSGKDAGRLSAAWQLYRAQEEMAQVAKRYGVKLTLFHGRGGTVGRGGGPTHLAILSQPPDTINGSIRVTVQGEVIEFCFGEEHLCFQTLQRFTAATLEHGMHPPVSPKPEWRKLMDEMAVVATEEYRSVVVKEARFVEYFRSATPETEYGRMNIGSRPAKRRPGGGITTLRAIPWIFSWTQTRFHLPVWLGVGAAFKFAIDKDVRNFQVLKEMYNEWPFFRVTLDLLEMVFAKGDPGIAGLYDELLVAEELKPFGKQLRDKYVETQQLLLQIAGHKDILEGDPFLKQGLVLRNPYITTLNVFQAYTLKRIRDPNFKVTPQPPLSKEFADENKPAGLVKLNPASEYPPGLEDTLILTMKGIAAGMQNTG

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jqoa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.3 — Phosphoenolpyruvate carboxylase

Domain ID domain_id	d1jqob_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.3 — Phosphoenolpyruvate carboxylase

CATH v4.4 (2 domains)

Domain ID domain_id	1jqoA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1440 — de novo design (two linked rop proteins)
Homologous superfamily homologous superfamily	90 — Phosphoenolpyruvate/pyruvate domain

Domain ID domain_id	1jqoB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1440 — de novo design (two linked rop proteins)
Homologous superfamily homologous superfamily	90 — Phosphoenolpyruvate/pyruvate domain

▶

Unit-cell length a length_a	158.440 Å
Unit-cell length b length_b	174.610 Å
Unit-cell length c length_c	254.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	86.200 Å
R factor r_factor	—
R_work r_work	0.2360
R_free r_free	0.2720
