SAXSdb — 1jr1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Inosine-5'-Monophosphate Dehydrogenase 2 ;

Cricetulus griseus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	POTASSIUM ION × 4 INOSINIC ACID × 4 MYCOPHENOLIC ACID × 4 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	POTASSIUM ION × 4 INOSINIC ACID × 4 MYCOPHENOLIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IMDH2_CRIGR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–514； UniProt 1–514 Author chain B； PDBConstruct 1–514； UniProt 1–514

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jr1
Deposition date deposition_date	2001-08-09
Structure title title	Crystal structure of Inosine Monophosphate Dehydrogenase in complex with Mycophenolic Acid
Keywords keywords	DEHYDROGENASE, IMPD, IMPDH, GUANINE NUCLEOTIDE SYNTHESIS, MYCOPHENOLIC ACID, MPA, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jr1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jr1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

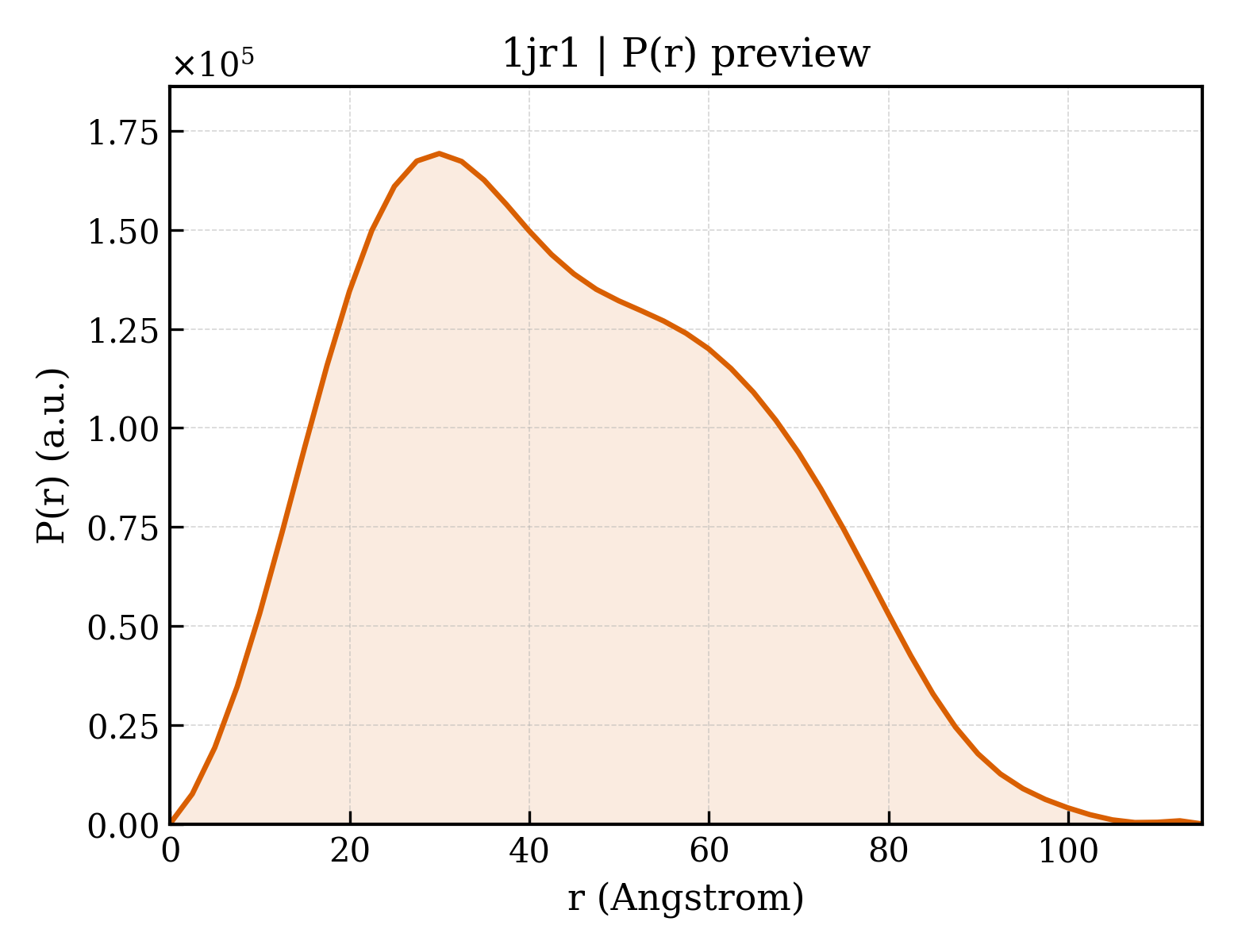

1jr1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.54 Å
Rg (electron density)	41.38 Å
Total Rg	41.34 Å
Atom count	13132
Residues	1744
Excluded volume	234830 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jr1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jr1__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	;Inosine-5'-Monophosphate Dehydrogenase 2 ;
Molecular weight formula_weight	55961.1 kDa
EC 编号 ec_number	1.1.1.205
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6296

MADYLISGGTSYVPDDGLTAQQLFNCGDGLTYNDFLILPGYIDFTADQVDLTSALTKKITLKTPLVSSPMDTVTEAGMAIAMALTGGIGFIHHNCTPEFQANEVRKVKKYEQGFITDPVVLSPKDRVRDVFEAKARHGFCGIPITDTGRMGSRLVGIISSRDIDFLKEEEHDRFLEEIMTKREDLVVAPAGITLKEANEILQRSKKGKLPIVNENDELVAIIARTDLKKNRDYPLASKDAKKQLLCGAAIGTHEDDKYRLDLLALAGVDVVVLDSSQGNSIFQINMIKYMKEKYPNLQVIGGNVVTAAQAKNLIDAGVDALRVGMGCGSICITQEVLACGRPQATAVYKVSEYARRFGVPVIADGGIQNVGHIAKALALGASTVMMGSLLAATTEAPGEYFFSDGIRLKKYRGMGSLDAMDKHLSSQNRYFSEADKIKVAQGVSGAVQDKGSIHKFVPYLIAGIQHSCQDIGAKSLTQVRAMMYSGELKFEKRTSSAQVEGGVHSLHSYEKRLF

Source Source

Source organism organism	Cricetulus griseus
Common name common_name	Chinese hamster
NCBI taxonomy ID ncbi_taxonomy_id	10029
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	INOSINIC ACID
Molecular weight formula_weight	348.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MYCOPHENOLIC ACID
Molecular weight formula_weight	320.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	202

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jr1a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.5 — Inosine monophosphate dehydrogenase (IMPDH)
Family Family family	c.1.5.1 — Inosine monophosphate dehydrogenase (IMPDH)

Domain ID domain_id	d1jr1a4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d1jr1b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.5 — Inosine monophosphate dehydrogenase (IMPDH)
Family Family family	c.1.5.1 — Inosine monophosphate dehydrogenase (IMPDH)

CATH v4.4 (2 domains)

Domain ID domain_id	1jr1A00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1jr1B00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	110.600 Å
Unit-cell length b length_b	110.600 Å
Unit-cell length c length_c	111.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 4
Space-group number int_tables_number	75
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2170
R_free r_free	0.2850
