SAXSdb — 1jsi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HAEMAGGLUTININ (HA1 CHAIN)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 5	HAEMAGGLUTININ (HA2 CHAIN) × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 6 其他Polymer 15	HAEMAGGLUTININ (HA2 CHAIN) × 3 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 9 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3 ;N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose ; × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q91CD4_9INFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–319； UniProt 19–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jsi
Deposition date deposition_date	2001-08-17
Structure title title	CRYSTAL STRUCTURE OF H9 HAEMAGGLUTININ BOUND TO LSTC RECEPTOR ANALOG
Keywords keywords	influenza, receptor complex, fusion protein, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jsi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jsi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

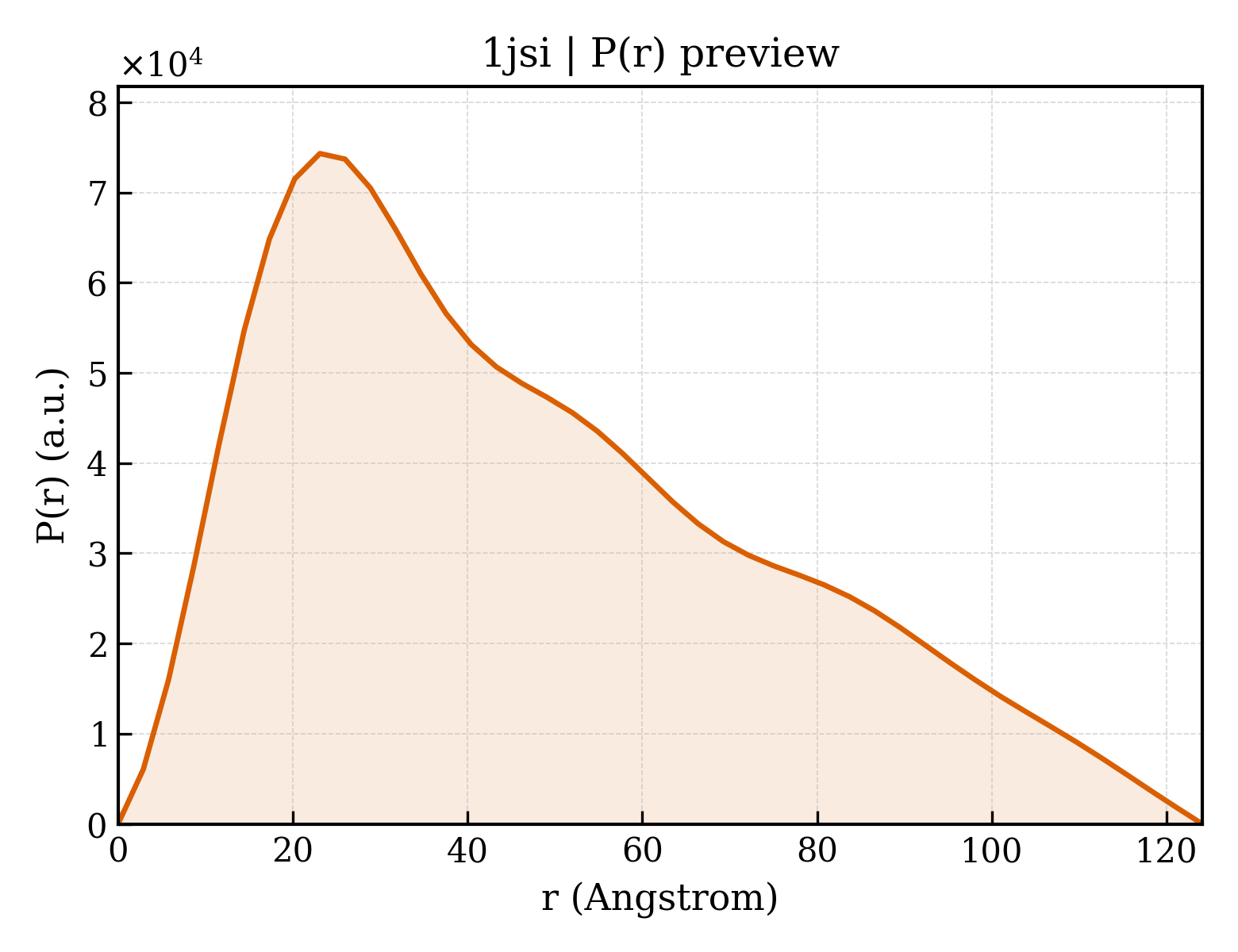

1jsi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.73 Å
Rg (electron density)	37.34 Å
Total Rg	37.26 Å
Atom count	3931
Residues	477
Excluded volume	69320 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jsi__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jsi__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	HAEMAGGLUTININ (HA1 CHAIN)
Molecular weight formula_weight	35456.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4073

DKICIGYQSTNSTETVDTLTETNVPVTHAKELLHTSHNGMLCATNLGHPLILDTCTIEGLIYGNPSCDLLLGGREWSYIVERPSAVNGMCYPGNVENLEELRSLFSSASSYQRIQIFPDTIWNVSYSGTSSACSDSFYRSMRWLTQKNNAYPIQDAQYTNNRGKSILFMWGINHPPTDTVQTNLYTRTDTTTSVTTEDINRTFKPVIGPRPLVNGLHGRIDYYWSVLKPGQTLRVRSNGNLIAPWYGHILSGESHGRILKTDLNSGNCVVQCQTERGGLNTTLPFHNVSKYAFGNCPKYVGVKSLKLAVGLRNVPARSS

Entity 2 Entity 2 polymer

Description description	HAEMAGGLUTININ (HA2 CHAIN)
Molecular weight formula_weight	20038.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GLFGAIAGFIEGGWPGLVAGWYGFQHSNDQGVGMAADSDSTQKAIDKITSKVNNIVDKMNKQYGIIDHEFSEIETRLNMINNKIDDQIQDIWTYNAELLVLLENQKTLDEHDANVNNLYNKVKRALGSNAMEDGKGCFELYHKCDDQCMETIRNGTYNRRKYKEESKLERQKIEGI

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 branched

Description description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	627.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	;N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose ;
Molecular weight formula_weight	998.9 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jsia_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1jsib_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (3 domains)

Domain ID domain_id	1jsiA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1jsiA02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1jsiB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	108.577 Å
Unit-cell length b length_b	108.577 Å
Unit-cell length c length_c	149.409 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2020
R_work r_work	0.2020
R_free r_free	0.2350

CRYSTAL STRUCTURE OF H9 HAEMAGGLUTININ BOUND TO LSTC RECEPTOR ANALOG
