SAXSdb — 1jso

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jso
沉积日期 deposition_date	2001-08-17
结构标题 title	STRUCTURE OF AVIAN H5 HAEMAGGLUTININ BOUND TO LSTC RECEPTOR ANALOG
关键词 keywords	influenza, receptor complex, fusion protein, Viral protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.42 Å
回转半径 Rg (电子) rg_electron	36.78 Å
零角强度 I(0) i0	51043600.00
分子量 molecular_weight	54815.0 kDa
排除体积 excluded_volume	67711 Å³
包络体积 envelope_volume	91137 Å³
水化壳体积 shell_volume	24402 Å³
包络直径 envelope_diameter	132.5 Å
壳层 Rg shell_rg	35.76 Å
包络 Rg envelope_rg	36.86 Å
形状 Rg shape_rg	36.81 Å
总 Rg total_rg	36.60 Å
总原子数 total_atoms	3855
残基数 n_residues	481
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.6 Å
Rg (实空间) rg_real	37.21 Å
Rg 误差 (实空间) rg_real_error	2.10 Å
I(0) (实空间) i0_real	5.1040e+07
I(0) 误差 (实空间) i0_real_error	1.1400e+06
Rg (倒空间) rg_reciprocal	36.72 Å
I(0) (倒空间) i0_reciprocal	51020000.0000
解质量估计 total_estimate	0.6724
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.1 Å
偏度 Skewness skewness	0.632
峰度 Kurtosis kurtosis	-0.497
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3865000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.260; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.047; Smooth: 0.910

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	HAEMAGGLUTININ (HA1 CHAIN)
分子量 formula_weight	36573.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4145

DQICIGYHANNSTEQVDTIMEKNVTVTHAQDILEKTHNGKLCDLNGVKPLILRDCSVAGWLLGNPMCDEFLNVPEWSYIVEKDNPVNGLCYPENFNDYEELKHLLSSTNHFEKIRIIPRSSWSNHDASSGVSSACPYNGRSSFFRNVVWLIKKNNAYPTIKRSYNNTNQEDLLILWGIHHPNDAAEQTKLYQNPTTYVSVGTSTLNQRSVPEIATRPKVNGQSGRMEFFWTILKPNDAINFESNGNFIAPEYAYKIVKKGGSAIMKSGLEYGNCNTKCQTPMGAINSSMPFHNIHPLTIGECPKYVKSGRLVLATGLRNVPQRET

Entity 2 polymer

描述 description	HAEMAGGLUTININ (HA2 CHAIN)
分子量 formula_weight	20200.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

GLFGAIAGFIEGGWQGMVDGWYGYHHSNEQGSGYAADKESTQKAIDGTTNKVNSIIDKMNTQFEAVGKEFNNLERRIENLNKKMEDGFLDVWTYNAELLVLMENERTLDFHDSNVKNLYDKVRLQLRDNAKELGNGCFEFYHKCDNECMESVKNGTYDYPQYSEEARLNREEISGV

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	N-acetyl-alpha-neuraminic acid
分子量 formula_weight	309.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	290

▼

6. 折叠分类 (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1jsoa_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1jsob_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (3 domains)

结构域编号 domain_id	1jsoA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1jsoA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1jsoB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	130.902 Å
晶胞边长 b length_b	130.902 Å
晶胞边长 c length_c	254.409 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	H 3 2
空间群编号 int_tables_number	155
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2210
R_work r_work	0.2210
R_free r_free	0.2510

fit	/app/data/saxs_computation/js/1jso/1jso.fit
pddf	/app/data/pr_computation/js/1jso/1jso.pr.out
profile	/app/data/saxs_computation/js/1jso/1jso.dat

STRUCTURE OF AVIAN H5 HAEMAGGLUTININ BOUND TO LSTC RECEPTOR ANALOG

SAXS 散射曲线 SAXS Profile

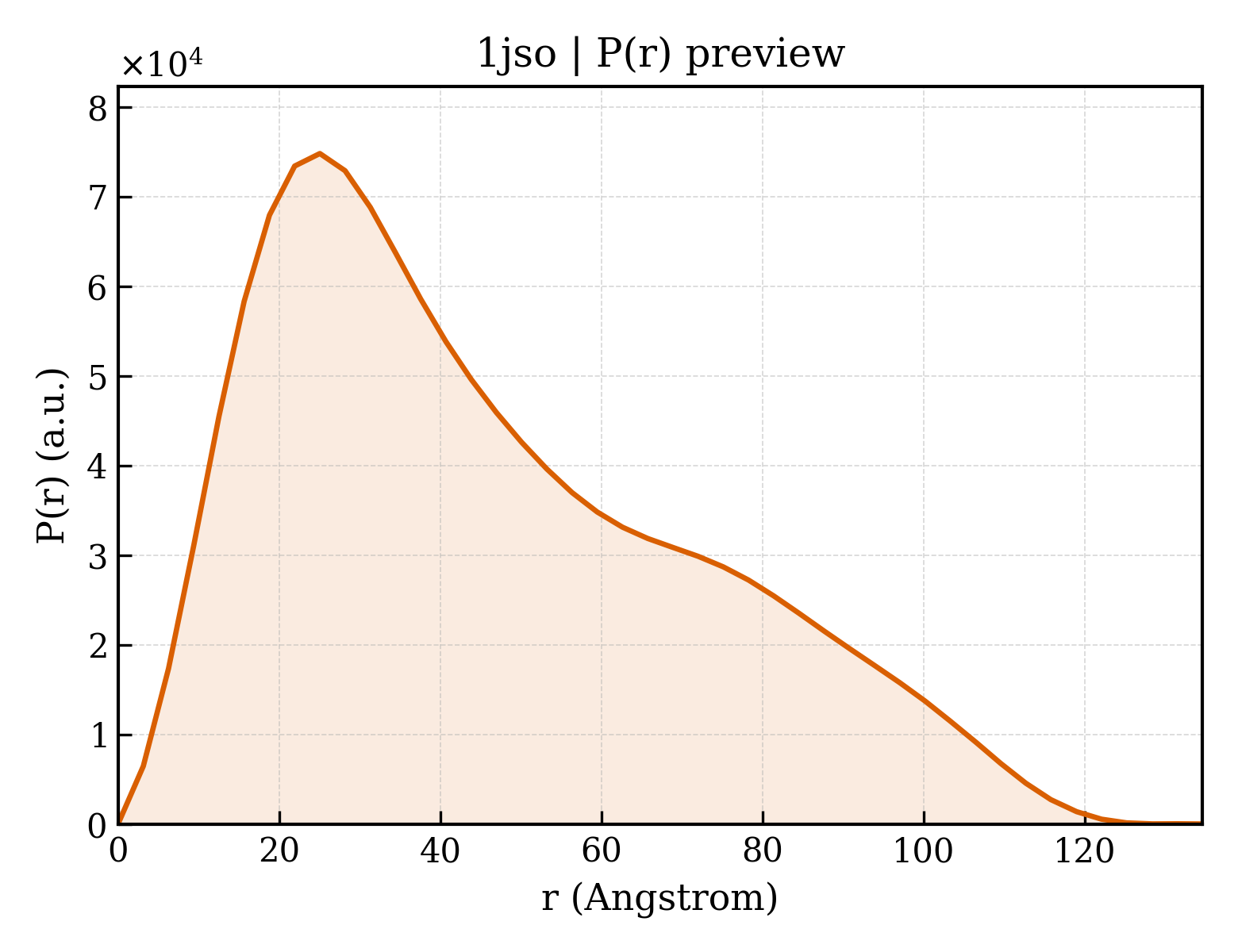

P(r) 距离分布 P(r) Distribution
