1jti

Loop-inserted Structure of P1-P1' Cleaved Ovalbumin Mutant R339T

Method: X-RAY DIFFRACTION Dmax: 92.4 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ovalbumin

Gallus gallus

UniProt P01012

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–385 Mutation：R339T No other associated polymer X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；303 K；ammonium sulfate, Bis-Tris, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 303K Resolution 2.30 Å R-free 0.252
2 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain B； UniProt 1–385 Mutation：R339T No other associated polymer X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；303 K；ammonium sulfate, Bis-Tris, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 303K Resolution 2.30 Å R-free 0.252

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1JTI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1OVA CRYSTAL STRUCTURE OF UNCLEAVED OVALBUMIN AT 1.95 ANGSTROMS RESOLUTION Deposited 1990-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å
1OVA CRYSTAL STRUCTURE OF UNCLEAVED OVALBUMIN AT 1.95 ANGSTROMS RESOLUTION Deposited 1990-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–385（385 aa）
Chain D 1–385（385 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å
1P1Z X-RAY CRYSTAL STRUCTURE OF THE LECTIN-LIKE NATURAL KILLER CELL RECEPTOR LY-49C BOUND TO ITS MHC CLASS I LIGAND H-2Kb Deposited 2003-04-14 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain P 257–264（8 aa） Fragment：residues 257-264
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；277 K；10% PEG 20000, 2% DIOXANE, 0.1 M Bicine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.26 Å R-free 0.316
1P4L Crystal structure of NK receptor Ly49C mutant with its MHC class I ligand H-2Kb Deposited 2003-04-23 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain P 257–264（8 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Protein 8mg/ml, 0.1 M HEPES-Na pH 7.5, 2% v/v PEG400, 2.0 M Ammonium Sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.295
1UHG Crystal Structure of S-Ovalbumin At 1.9 Angstrom Resolution Deposited 2003-07-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–385（385 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；303 K；Ammonium sulfate, sodium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 303K
Resolution 1.90 Å R-free 0.247
1UHG Crystal Structure of S-Ovalbumin At 1.9 Angstrom Resolution Deposited 2003-07-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–385（385 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；303 K；Ammonium sulfate, sodium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 303K
Resolution 1.90 Å R-free 0.247
1UHG Crystal Structure of S-Ovalbumin At 1.9 Angstrom Resolution Deposited 2003-07-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–385（385 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；303 K；Ammonium sulfate, sodium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 303K
Resolution 1.90 Å R-free 0.247
1UHG Crystal Structure of S-Ovalbumin At 1.9 Angstrom Resolution Deposited 2003-07-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–385（385 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；303 K；Ammonium sulfate, sodium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 303K
Resolution 1.90 Å R-free 0.247
1VAC MHC CLASS I H-2KB HEAVY CHAIN COMPLEXED WITH BETA-2 MICROGLOBULIN AND CHICKEN OVALBUMIN Deposited 1994-11-01 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain P 257–264（8 aa） Fragment：RESIDUES 257 - 264
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.50 Å
3CVH How TCR-like antibody recognizes MHC-bound peptide Deposited 2008-04-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 258–265（8 aa） Fragment：sequence database residues 258-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；293 K；0.2 M (NH4)2SO4, 0.1 M NaOAc, pH 4.6 containing 25% w/v polyethylene glycol 4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.90 Å R-free 0.296
3CVH How TCR-like antibody recognizes MHC-bound peptide Deposited 2008-04-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain O 258–265（8 aa） Fragment：sequence database residues 258-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；293 K；0.2 M (NH4)2SO4, 0.1 M NaOAc, pH 4.6 containing 25% w/v polyethylene glycol 4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.90 Å R-free 0.296
3P9L Crystal Structure of H2-Kb in complex with the chicken ovalbumin epitope OVA Deposited 2010-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 258–265（8 aa）
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.2M calcium acetate, 15% PEG 8K, 0.1M Na-cacodylate, pH 6.5, vapor diffusion, hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.243
3P9L Crystal Structure of H2-Kb in complex with the chicken ovalbumin epitope OVA Deposited 2010-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 258–265（8 aa）
Not recorded CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.2M calcium acetate, 15% PEG 8K, 0.1M Na-cacodylate, pH 6.5, vapor diffusion, hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.243
3P9M Crystal Structure of H2-Kb in complex with a mutant of the chicken ovalbumin epitope OVA-G4 Deposited 2010-10-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 258–265（8 aa）
Mutation：N4G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.2M calcium acetate, 15% PEG 8K, 0.1M Na-malonate, pH 6, vapor diffusion, hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.244
3P9M Crystal Structure of H2-Kb in complex with a mutant of the chicken ovalbumin epitope OVA-G4 Deposited 2010-10-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 258–265（8 aa）
Mutation：N4G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.2M calcium acetate, 15% PEG 8K, 0.1M Na-malonate, pH 6, vapor diffusion, hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.244
3PAB Crystal Structure of H2-Kb in complex with a mutant of the chicken ovalbumin epitope OVA-E1 Deposited 2010-10-19 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 258–265（8 aa）
Mutation：S1E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.2M calcium acetate, 15% PEG 8K, 0.1M Na-malonate, pH 6, vapor diffusion, hanging drop, temperature 277K
Resolution 2.20 Å R-free 0.260
3PAB Crystal Structure of H2-Kb in complex with a mutant of the chicken ovalbumin epitope OVA-E1 Deposited 2010-10-19 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 258–265（8 aa）
Mutation：S1E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.2M calcium acetate, 15% PEG 8K, 0.1M Na-malonate, pH 6, vapor diffusion, hanging drop, temperature 277K
Resolution 2.20 Å R-free 0.260
4HKJ Structure of Cowpox CPXV203 in complex with MHCI (H-2Kb) Deposited 2012-10-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 258–265（8 aa） Fragment：UNP residues 258-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.55；293 K；10% PEG6000, 4% glucose, 2% ethylene glycol, 0.1 M tri-potassium citrate, 0.01% azide, pH 5.55, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.253
4HKJ Structure of Cowpox CPXV203 in complex with MHCI (H-2Kb) Deposited 2012-10-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 258–265（8 aa） Fragment：UNP residues 258-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.55；293 K；10% PEG6000, 4% glucose, 2% ethylene glycol, 0.1 M tri-potassium citrate, 0.01% azide, pH 5.55, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.253
4HKJ Structure of Cowpox CPXV203 in complex with MHCI (H-2Kb) Deposited 2012-10-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain K 258–265（8 aa） Fragment：UNP residues 258-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.55；293 K；10% PEG6000, 4% glucose, 2% ethylene glycol, 0.1 M tri-potassium citrate, 0.01% azide, pH 5.55, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.253
4HKJ Structure of Cowpox CPXV203 in complex with MHCI (H-2Kb) Deposited 2012-10-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain O 258–265（8 aa） Fragment：UNP residues 258-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.55；293 K；10% PEG6000, 4% glucose, 2% ethylene glycol, 0.1 M tri-potassium citrate, 0.01% azide, pH 5.55, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.253

10 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name OVAL_CHICK
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–385； UniProt 1–385 Author chain B； PDBConstruct 1–385； UniProt 1–385

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1jti

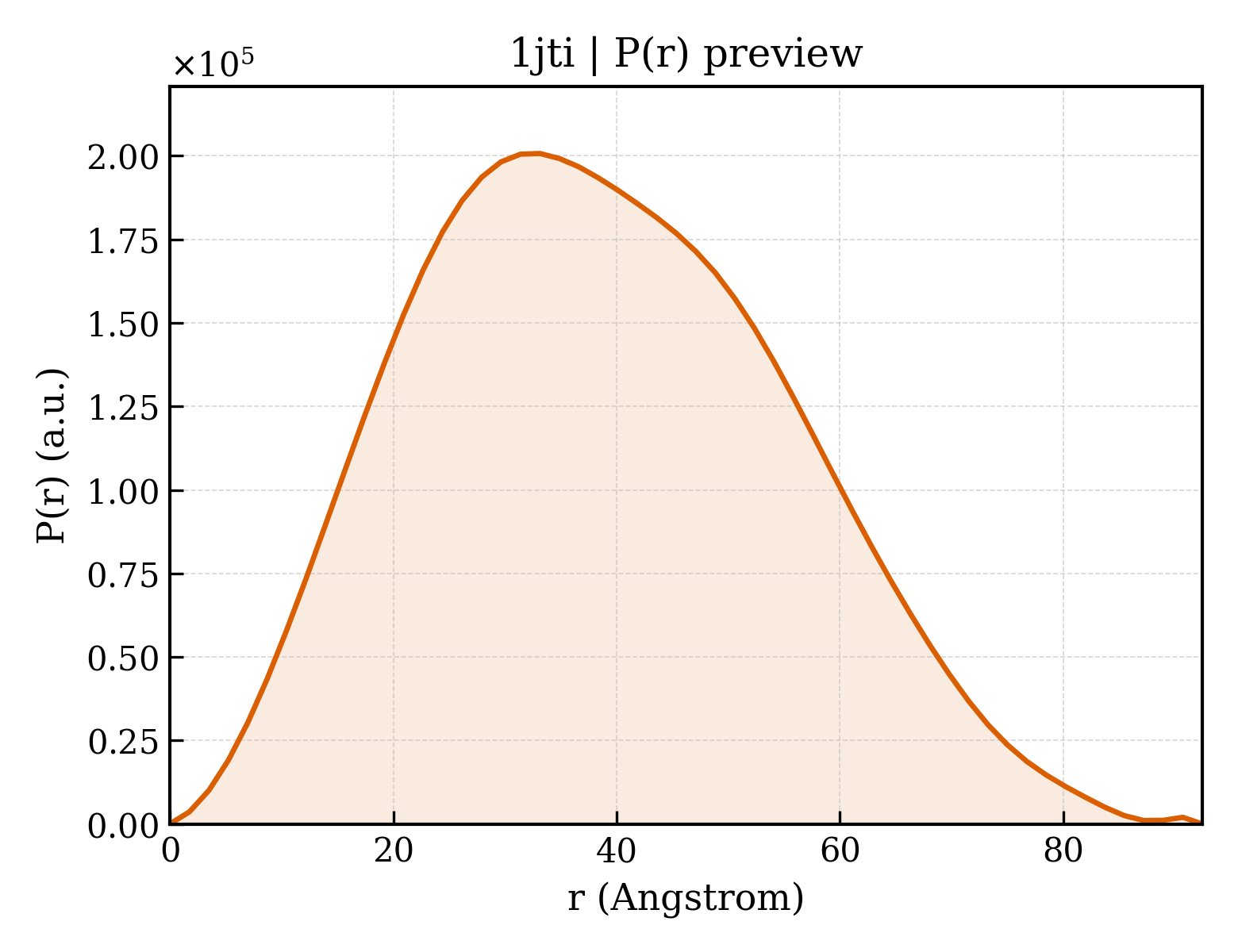

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1jti
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1jti
Deposition date deposition_date2001-08-21
Structure title titleLoop-inserted Structure of P1-P1' Cleaved Ovalbumin Mutant R339T
Keywords keywordsovalbumin, loop insertion, non-inhibitory serpin, ALLERGEN; ALLERGEN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier29.81 Å
Radius of gyration Rg (electron density) rg_electron28.75 Å
Forward intensity I(0) i0113723000.00
Molecular weight molecular_weight84683.0 kDa
Excluded volume excluded_volume106240 ų
Envelope volume envelope_volume129730 ų
Hydration-shell volume shell_volume37071 ų
Envelope diameter envelope_diameter98.8 Å
Shell Rg shell_rg36.43 Å
Envelope Rg envelope_rg28.79 Å
Shape Rg shape_rg28.74 Å
Total Rg total_rg29.48 Å
Total atoms total_atoms5938
Residues n_residues762
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax92.4 Å
Rg (real space) rg_real29.73 Å
Rg uncertainty (real space) rg_real_error0.54 Å
I(0) (real space) i0_real1.1370e+08
I(0) uncertainty (real space) i0_real_error1.5530e+06
Rg (reciprocal space) rg_reciprocal29.77 Å
I(0) (reciprocal space) i0_reciprocal113700000.0000
Solution quality estimate total_estimate0.9007
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary33.1 Å
Skewness Skewness skewness0.244
Kurtosis Kurtosis kurtosis-0.514
Angular range angular_range— – 0.2650 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha38390000.0000
Real-space data points n_real_points54
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.950; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.855
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd1jtia_
Class classe — Multi-domain proteins (alpha and beta)
Fold Fold folde.1 — Serpins
Superfamily Superfamily superfamilye.1.1 — Serpins
Family Family familye.1.1.1 — Serpins
Domain ID domain_idd1jtib_
Class classe — Multi-domain proteins (alpha and beta)
Fold Fold folde.1 — Serpins
Superfamily Superfamily superfamilye.1.1 — Serpins
Family Family familye.1.1.1 — Serpins

CATH v4.4 (4 domains)

Domain ID domain_id1jtiA01
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily10 — Alpha-1-antitrypsin, domain 1
Domain ID domain_id1jtiA02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily10 — Antithrombin, subunit I, domain 2
Domain ID domain_id1jtiB01
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily10 — Alpha-1-antitrypsin, domain 1
Domain ID domain_id1jtiB02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily10 — Antithrombin, subunit I, domain 2
▶

8. Citations (1)

▶

9. Files and Curves (10)
