SAXSdb — 1jtz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TUMOR NECROSIS FACTOR LIGAND SUPERFAMILY MEMBER 11

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNF11_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 11–171； UniProt 156–316 Author chain Y； PDBConstruct 11–171； UniProt 156–316 Author chain Z； PDBConstruct 11–171； UniProt 156–316

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jtz
Deposition date deposition_date	2001-08-23
Structure title title	CRYSTAL STRUCTURE OF TRANCE/RANKL CYTOKINE.
Keywords keywords	TUMOR NECROSIS FACTOR SUPERFAMILY MEMBER, JELLYROLL, BETA-SANDWICH, CYTOKINE; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jtz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

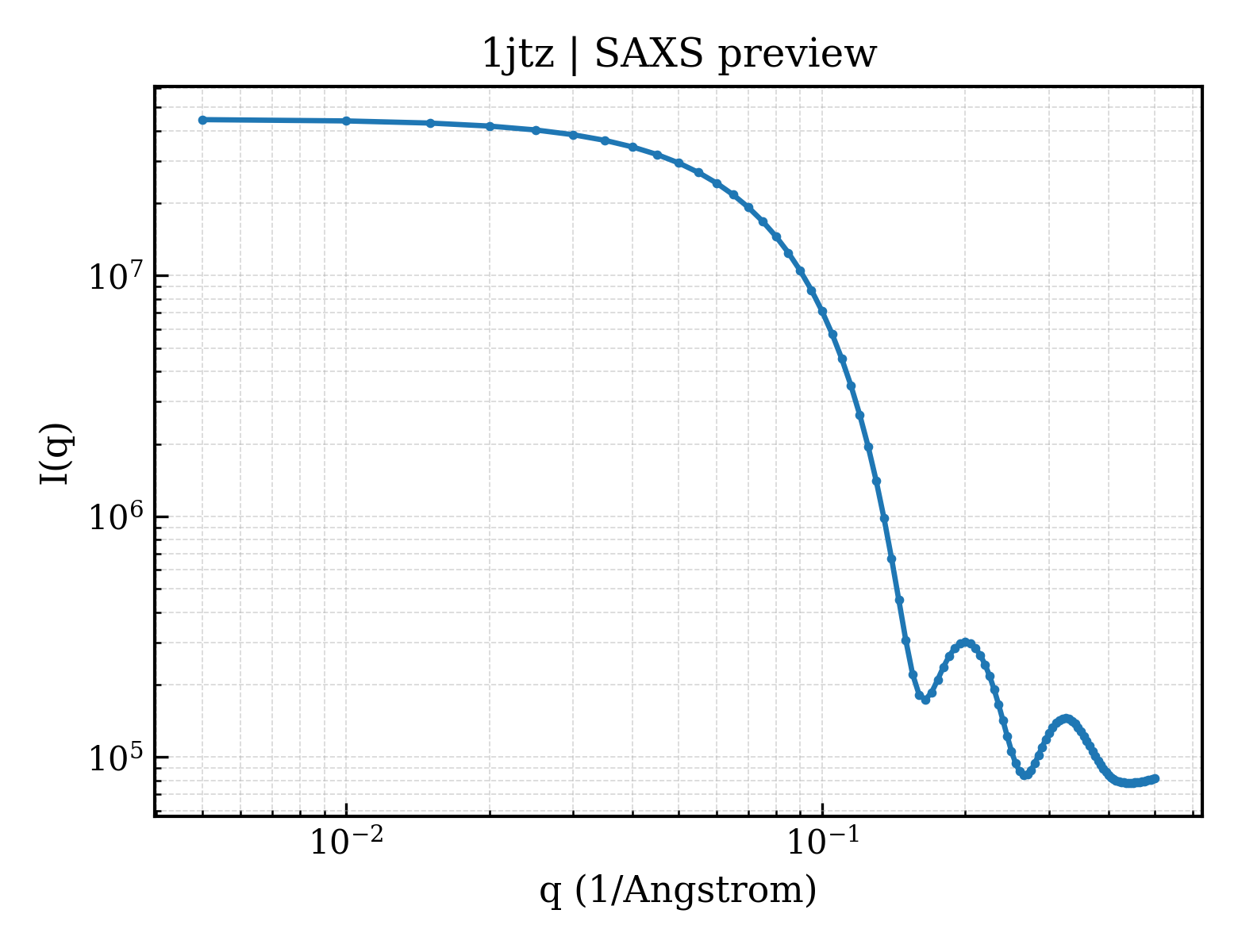

1jtz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

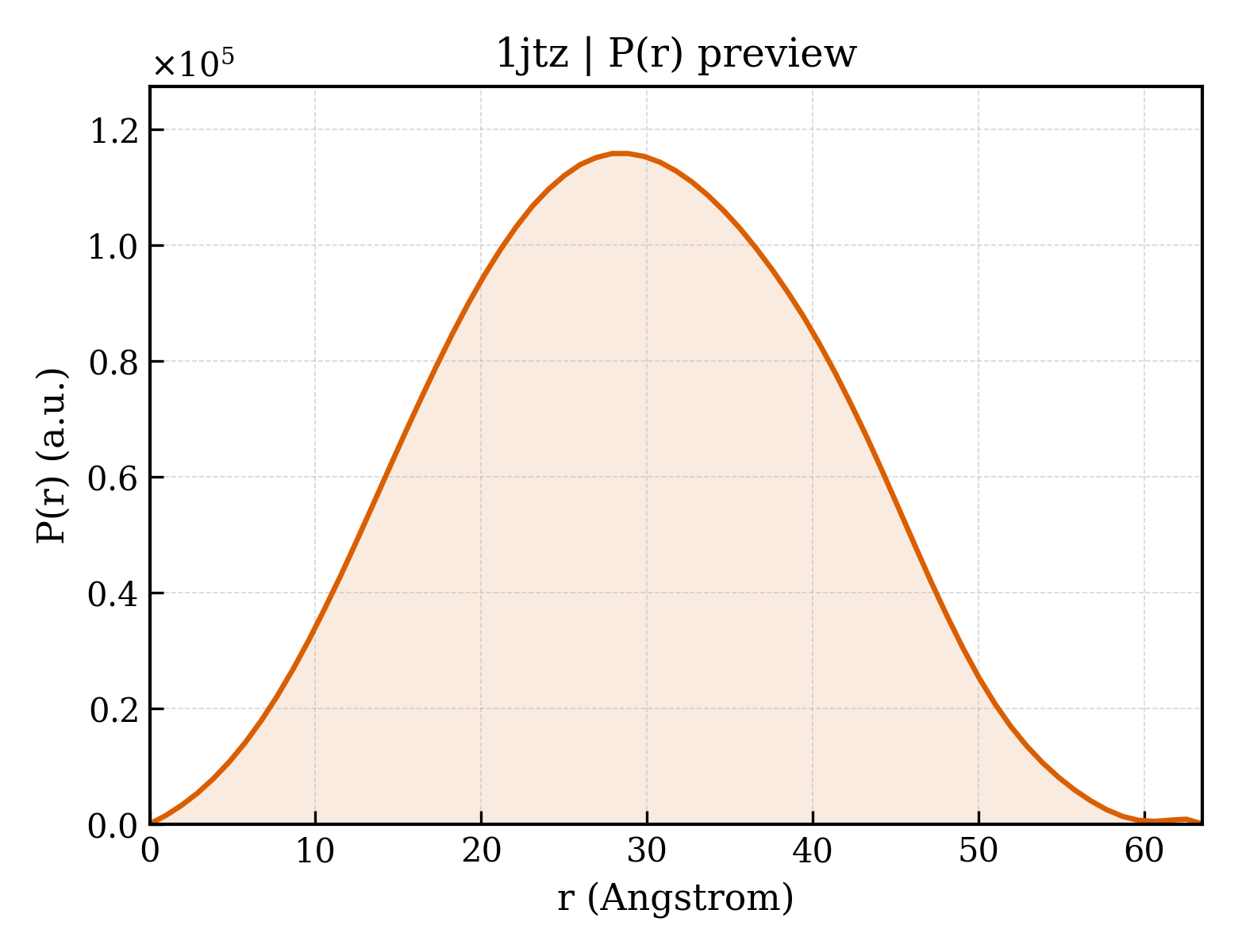

1jtz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.30 Å
Rg (electron density)	20.83 Å
Total Rg	21.79 Å
Atom count	3684
Residues	465
Excluded volume	65078 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jtz__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jtzx_
Class class	b — All beta proteins
Fold Fold fold	b.22 — TNF-like
Superfamily Superfamily superfamily	b.22.1 — TNF-like
Family Family family	b.22.1.1 — TNF-like

Domain ID domain_id	d1jtzy_
Class class	b — All beta proteins
Fold Fold fold	b.22 — TNF-like
Superfamily Superfamily superfamily	b.22.1 — TNF-like
Family Family family	b.22.1.1 — TNF-like

Domain ID domain_id	d1jtzz_
Class class	b — All beta proteins
Fold Fold fold	b.22 — TNF-like
Superfamily Superfamily superfamily	b.22.1 — TNF-like
Family Family family	b.22.1.1 — TNF-like

CATH v4.4 (3 domains)

Domain ID domain_id	1jtzX00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jtzY00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1jtzZ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	65.300 Å
Unit-cell length b length_b	82.000 Å
Unit-cell length c length_c	99.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.2860

Description description	TUMOR NECROSIS FACTOR LIGAND SUPERFAMILY MEMBER 11
Molecular weight formula_weight	19056.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y,Z
Atom count atom_count	3831

CRYSTAL STRUCTURE OF TRANCE/RANKL CYTOKINE.

1. Protein Identity and Related Structures Protein Identity & Related Structures

TUMOR NECROSIS FACTOR LIGAND SUPERFAMILY MEMBER 11

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1jtz__assembly_1__model_1

1jtz__assembly_1__model_1 | I(q)

1jtz__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

CATH v4.4 (3 domains)

7. Citations (1)

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	147
