SAXSdb — 1jva

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VMA1-DERIVED HOMING ENDONUCLEASE X10SSS

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 274–747	Fragment：RESIDUES 274-747 Mutation：C284S/H362N/N737S/C738S	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG6000, BisTrisHCl, mercaptoethanol, magnesium chloride, cadmium chloride, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.240
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 274–747	Fragment：RESIDUES 274-747 Mutation：C284S/H362N/N737S/C738S	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG6000, BisTrisHCl, mercaptoethanol, magnesium chloride, cadmium chloride, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1JVA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DFA CRYSTAL STRUCTURE OF PI-SCEI IN C2 SPACE GROUP Deposited 1999-11-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 284–737（454 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；323 K；20% PEG 3350, 100MM TRIS-HCL, 100MM KCL, 200MM MGCL2, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 323.0K	Resolution 2.00 Å R-free 0.280
1GPP Crystal structure of the S.cerevisiae Homing Endonuclease PI-SceI Domain I Deposited 2001-11-07	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 284–466（183 aa） Fragment：PROTEIN SPLICING DOMAIN, RESIDUES 284-466,693-736, SEE REMARK 999 Chain A 693–736（44 aa） Fragment：PROTEIN SPLICING DOMAIN, RESIDUES 284-466,693-736, SEE REMARK 999	Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；30 % PEG4000, 0.1 M SODIUM CITRATE PH 5.6, 0.2 M NH4-ACETATE	Resolution 1.35 Å R-free 0.189
1LWS Crystal structure of the intein homing endonuclease PI-SceI bound to its recognition sequence Deposited 2002-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 284–737（454 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；PEG 200, na hepes, calcium chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.50 Å R-free 0.310
1LWT Crystal structure of the intein homing endonuclease PI-SceI bound to its substrate DNA (Ca2+ free) Deposited 2002-06-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 284–737（454 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；291 K；PEG 3550, na citrate, ammonium acetate, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.287
1UM2 Crystal Structure of the Vma1-Derived Endonuclease with the Ligated Extein Segment Deposited 2003-09-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 284–737（454 aa） Chain C 274–283（10 aa） Chain C 738–747（10 aa）	Mutation：C284S, H362N Mutation：C738S Mutation：C738S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 6000, BistrisHCl, 2-mercaptoethanol, magnesium chloride, cadmium chloride, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.283
1UM2 Crystal Structure of the Vma1-Derived Endonuclease with the Ligated Extein Segment Deposited 2003-09-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 284–737（454 aa） Chain D 274–283（10 aa） Chain D 738–747（10 aa）	Mutation：C284S, H362N Mutation：C738S Mutation：C738S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 6000, BistrisHCl, 2-mercaptoethanol, magnesium chloride, cadmium chloride, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.283
1VDE PI-SCEI, A HOMING ENDONUCLEASE WITH PROTEIN SPLICING ACTIVITY Deposited 1997-04-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 284–737（454 aa） Chain B 284–737（454 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；4% PEG 6K, 10MM BME, 3MM CDCL2, 1MM MGCL2, 100MM TRIS, PH=8.5	Resolution 2.40 Å R-free 0.238
3J9T Yeast V-ATPase state 1 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain A 2–283（282 aa） Fragment：SEE REMARK 999 Chain A 738–1071（334 aa） Fragment：SEE REMARK 999 Chain C 2–283（282 aa） Fragment：SEE REMARK 999 Chain C 738–1071（334 aa） Fragment：SEE REMARK 999 Chain E 2–283（282 aa） Fragment：SEE REMARK 999 Chain E 738–1071（334 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 6.90 Å
3J9U Yeast V-ATPase state 2 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain A 2–283（282 aa） Fragment：SEE REMARK 999 Chain A 738–1071（334 aa） Fragment：SEE REMARK 999 Chain C 2–283（282 aa） Fragment：SEE REMARK 999 Chain C 738–1071（334 aa） Fragment：SEE REMARK 999 Chain E 2–283（282 aa） Fragment：SEE REMARK 999 Chain E 738–1071（334 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 7.60 Å
3J9V Yeast V-ATPase state 3 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain A 2–283（282 aa） Fragment：SEE REMARK 999 Chain A 738–1071（334 aa） Fragment：SEE REMARK 999 Chain C 2–283（282 aa） Fragment：SEE REMARK 999 Chain C 738–1071（334 aa） Fragment：SEE REMARK 999 Chain E 2–283（282 aa） Fragment：SEE REMARK 999 Chain E 738–1071（334 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 8.30 Å
5BW9 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-06-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain A 1–283（283 aa） Chain A 738–1071（334 aa） Chain B 1–283（283 aa） Chain B 738–1071（334 aa） Chain C 1–283（283 aa） Chain C 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROFLUIDIC；pH 7.5；291 K；9.5 % PEG 8k, 150mM Ammonium Sulfate, 100mM HEPES, 12.5mM MgCl2	Resolution 7.00 Å R-free 0.309
5BW9 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-06-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain a 1–283（283 aa） Chain a 738–1071（334 aa） Chain b 1–283（283 aa） Chain b 738–1071（334 aa） Chain c 1–283（283 aa） Chain c 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROFLUIDIC；pH 7.5；291 K；9.5 % PEG 8k, 150mM Ammonium Sulfate, 100mM HEPES, 12.5mM MgCl2	Resolution 7.00 Å R-free 0.309
5D80 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–283（283 aa） Chain A 738–1071（334 aa） Chain B 1–283（283 aa） Chain B 738–1071（334 aa） Chain C 1–283（283 aa） Chain C 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；8.25% PEG 8000, 0.25 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 0.05 M Strontium Chloride	Resolution 6.20 Å R-free 0.302
5D80 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain a 1–283（283 aa） Chain a 738–1071（334 aa） Chain b 1–283（283 aa） Chain b 738–1071（334 aa） Chain c 1–283（283 aa） Chain c 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；8.25% PEG 8000, 0.25 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 0.05 M Strontium Chloride	Resolution 6.20 Å R-free 0.302
5VOX Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 1) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain A 1–283（283 aa） Chain A 738–1071（334 aa） Chain C 1–283（283 aa） Chain C 738–1071（334 aa） Chain E 1–283（283 aa） Chain E 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.80 Å
5VOY Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 2) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain A 1–283（283 aa） Chain A 738–1071（334 aa） Chain C 1–283（283 aa） Chain C 738–1071（334 aa） Chain E 1–283（283 aa） Chain E 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.90 Å
5VOZ Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 3) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain A 1–283（283 aa） Chain A 738–1071（334 aa） Chain C 1–283（283 aa） Chain C 738–1071（334 aa） Chain E 1–283（283 aa） Chain E 738–1071（334 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.60 Å
9COP Yeast RAVE bound to V-ATPase V1 complex Deposited 2024-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric	Chain A 1–1071（1071 aa） Chain E 1–1071（1071 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å

15 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VATA_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–475； UniProt 274–747 Author chain B； PDBConstruct 2–475； UniProt 274–747

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jva
Deposition date deposition_date	2001-08-29
Structure title title	CRYSTAL STRUCTURE OF THE VMA1-DERIVED ENDONUCLEASE BEARING THE N AND C EXTEIN PROPEPTIDES
Keywords keywords	PROTEIN-SPLICING, VMA1-DERIVED ENDONUCLEASE, INTEIN, THIAZOLIDINE INTERMEDIATE, VDE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

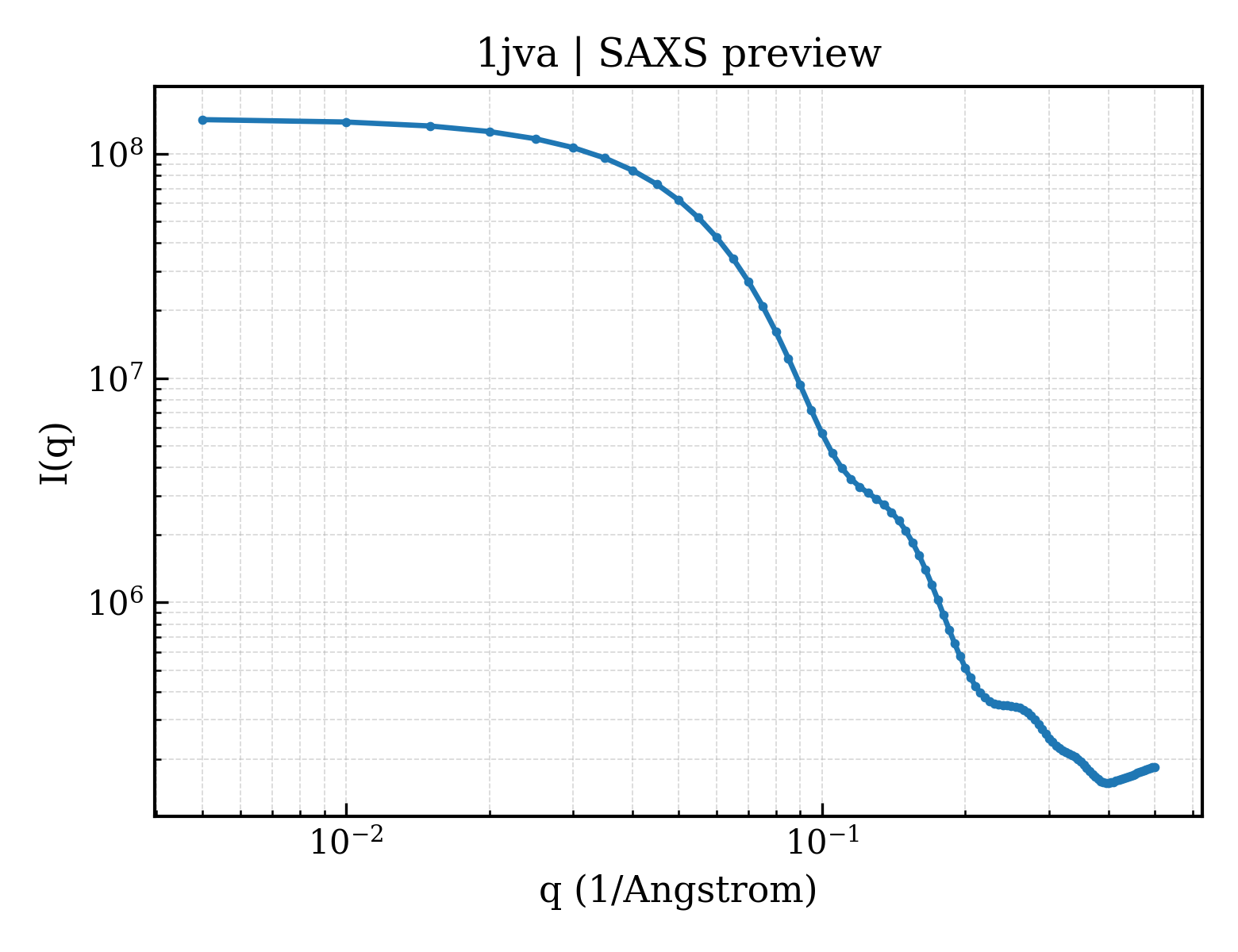

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.34 Å
Radius of gyration Rg (electron density) rg_electron	30.39 Å
Forward intensity I(0) i0	142925000.00
Molecular weight molecular_weight	95896.0 kDa
Excluded volume excluded_volume	120510 Å³
Envelope volume envelope_volume	151390 Å³
Hydration-shell volume shell_volume	40832 Å³
Envelope diameter envelope_diameter	100.6 Å
Shell Rg shell_rg	38.30 Å
Envelope Rg envelope_rg	30.16 Å
Shape Rg shape_rg	30.39 Å
Total Rg total_rg	31.12 Å
Total atoms total_atoms	6755
Residues n_residues	857
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

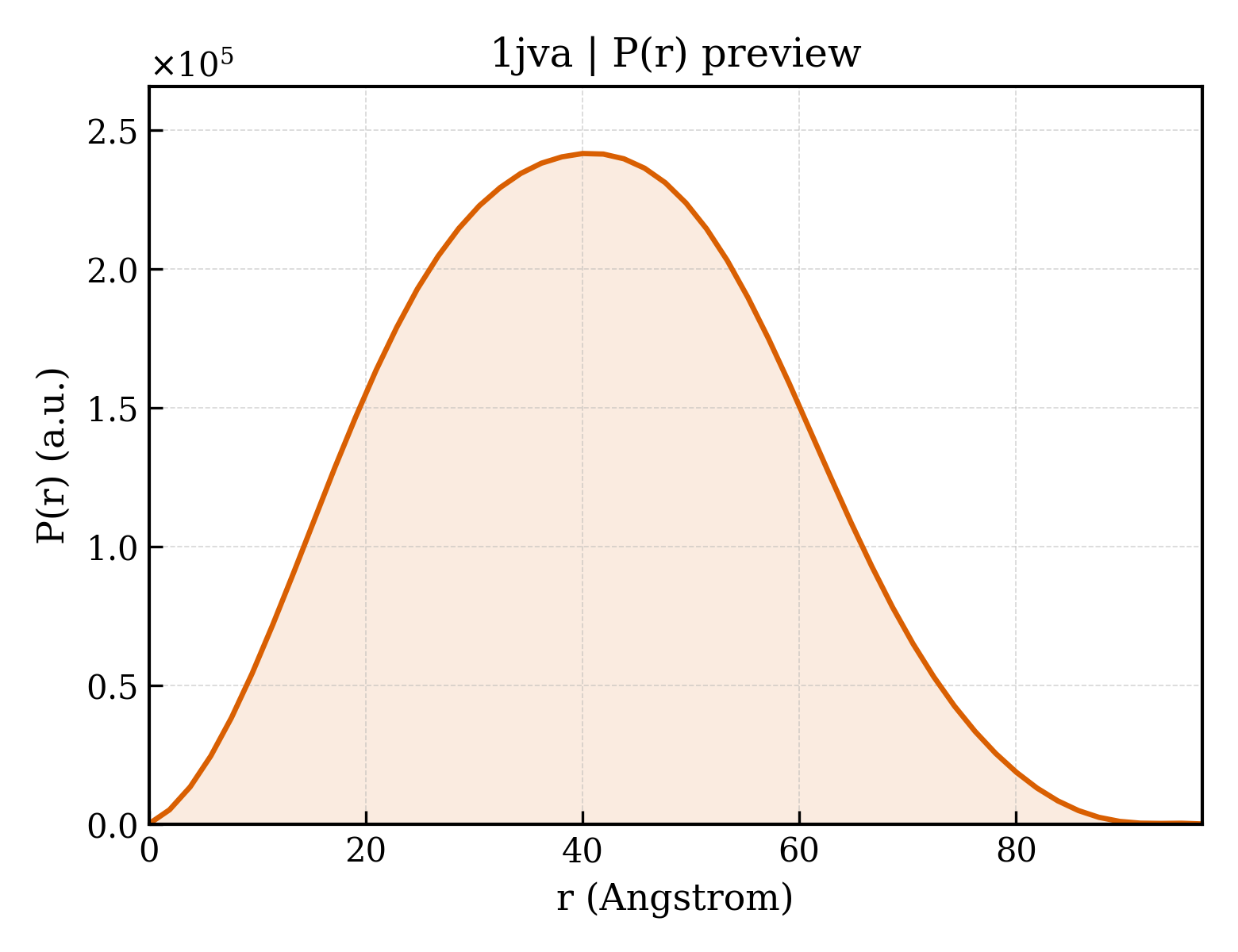

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.2 Å
Rg (real space) rg_real	31.18 Å
Rg uncertainty (real space) rg_real_error	0.46 Å
I(0) (real space) i0_real	1.4290e+08
I(0) uncertainty (real space) i0_real_error	1.8460e+06
Rg (reciprocal space) rg_reciprocal	31.25 Å
I(0) (reciprocal space) i0_reciprocal	142900000.0000
Solution quality estimate total_estimate	0.9092
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	40.0 Å
Skewness Skewness skewness	0.123
Kurtosis Kurtosis kurtosis	-0.577
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0005
Highest regularization parameter α highest_alpha	29610000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.970

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	VMA1-DERIVED HOMING ENDONUCLEASE X10SSS
Molecular weight formula_weight	53150.1 kDa
EC 编号 ec_number	3.6.1.34
Mutation mutation	C284S/H362N/N737S/C738S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6960

MSNSDAIIYVGSFAKGTNVLMADGSIECIENIEVGNKVMGKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATNELVVRTPRSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVESYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIEGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVAKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNGTKHKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLSDDSDHQFLLANQVVVHSSGERGNEMAE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	205

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1jvaa1
Class class	b — All beta proteins
Fold Fold fold	b.86 — Hedgehog/intein (Hint) domain
Superfamily Superfamily superfamily	b.86.1 — Hedgehog/intein (Hint) domain
Family Family family	b.86.1.2 — Intein (protein splicing domain)

Domain ID domain_id	d1jvaa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.95 — Homing endonuclease-like
Superfamily Superfamily superfamily	d.95.2 — Homing endonucleases
Family Family family	d.95.2.2 — Intein endonuclease

Domain ID domain_id	d1jvaa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.95 — Homing endonuclease-like
Superfamily Superfamily superfamily	d.95.2 — Homing endonucleases
Family Family family	d.95.2.2 — Intein endonuclease

Domain ID domain_id	d1jvab1
Class class	b — All beta proteins
Fold Fold fold	b.86 — Hedgehog/intein (Hint) domain
Superfamily Superfamily superfamily	b.86.1 — Hedgehog/intein (Hint) domain
Family Family family	b.86.1.2 — Intein (protein splicing domain)

Domain ID domain_id	d1jvab2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.95 — Homing endonuclease-like
Superfamily Superfamily superfamily	d.95.2 — Homing endonucleases
Family Family family	d.95.2.2 — Intein endonuclease

Domain ID domain_id	d1jvab3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.95 — Homing endonuclease-like
Superfamily Superfamily superfamily	d.95.2 — Homing endonucleases
Family Family family	d.95.2.2 — Intein endonuclease

CATH v4.4 (6 domains)

Domain ID domain_id	1jvaA01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	16 — Endonuclease - Pi-scei; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Hedgehog/Intein (Hint) domain

Domain ID domain_id	1jvaA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	28 — Endonuclease I-creI
Homologous superfamily homologous superfamily	10 — Homing endonucleases

Domain ID domain_id	1jvaA03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	28 — Endonuclease I-creI
Homologous superfamily homologous superfamily	10 — Homing endonucleases

Domain ID domain_id	1jvaB01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	16 — Endonuclease - Pi-scei; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Hedgehog/Intein (Hint) domain

Domain ID domain_id	1jvaB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	28 — Endonuclease I-creI
Homologous superfamily homologous superfamily	10 — Homing endonucleases

Domain ID domain_id	1jvaB03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	28 — Endonuclease I-creI
Homologous superfamily homologous superfamily	10 — Homing endonucleases

▶

8. Citations (2)

▶

Unit-cell length a length_a	66.178 Å
Unit-cell length b length_b	68.846 Å
Unit-cell length c length_c	58.524 Å
Unit-cell angle α angle_alpha	103.10 °
Unit-cell angle β angle_beta	98.79 °
Unit-cell angle γ angle_gamma	78.98 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2000
R_work r_work	0.1980
R_free r_free	0.2400

fit	/app/data/saxs_computation/jv/1jva/1jva.fit
pddf	/app/data/pr_computation/jv/1jva/1jva.pr.out
profile	/app/data/saxs_computation/jv/1jva/1jva.dat

CRYSTAL STRUCTURE OF THE VMA1-DERIVED ENDONUCLEASE BEARING THE N AND C EXTEIN PROPEPTIDES

1. Protein Identity and Related Structures Protein Identity & Related Structures

VMA1-DERIVED HOMING ENDONUCLEASE X10SSS

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction
